Help CenterMVR Evaporator for Landfill Leachate Treatment
Related Products
The liquor material treated in this project was strongly alkaline, and of high content of silicon, and has strong electrochemical corrosion to titanium material at high temperature. The material selected in this project is determined after three-month intensive corrosion test by our R&D department.
And after silicon removal, concentration and filtration, the concentrate was recycled for production, of outstanding economic value.
Process TechnologyA MVR and forced circulation evaporator is adopted to concentrate the feedstock which contains various inorganic salts till over-saturated. After concentration, the oversaturated liquor was delivered into a centrifuge to be solid-liquor separated, the filtered salts was discharged or recycled, and the mother liquor was returned to the evaporator system to be concentrated again.

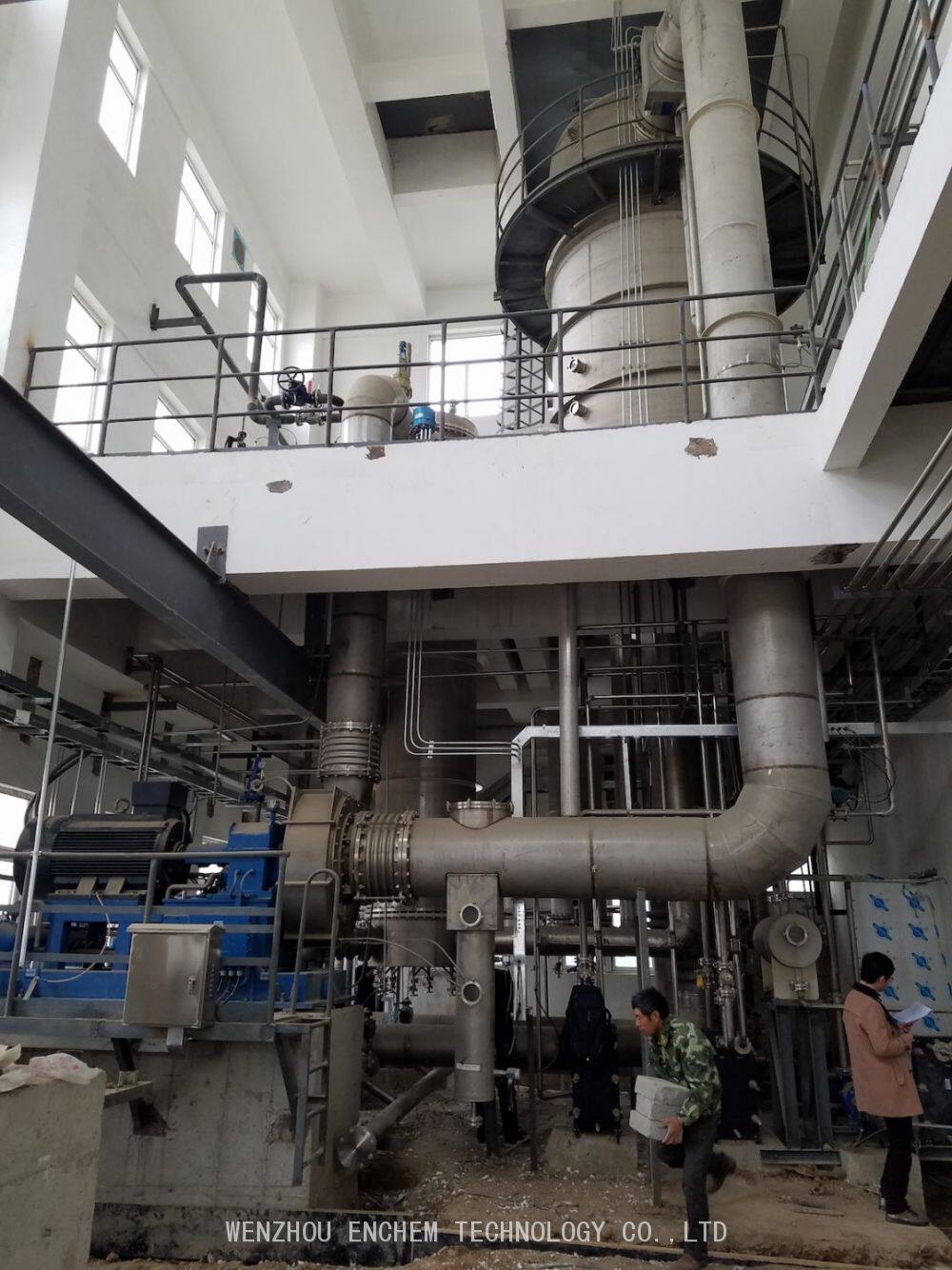

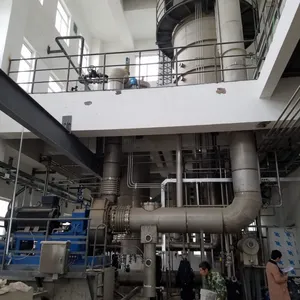

Equipment Description1 set of MVR and forced circulation evaporator is adopted for landfill leachate Treatment, is able to meet the following demands:
1). the landfill Leachate was concentrated to oversaturated, and then was filtered by a centrifuge to separate crystal salts from mother liquor, and the mother liquor was returned to evaporator system;
2). All components in the plant are well designed to ensure safety in production;
3). The forced circulation evaporator system can effectively prevent the blocking risk of heat exchange tubes caused by high concentration, and can slow the formation of scaling on the heat exchange surface at the mean time, improve the heat transfer efficiency, increase the continuous operation time of equipment, and reduce the cleaning frequency;
4). The main configuration of the plant is as below:
a. One set of forced circulation evaporator;
b. One set of MVR device;
c. One set of demister system for ensure the quality of secondary steam entering the MVR device, to ensure the service life of the MVR device;
d. One set of DSC control system.
