nanshan AKLU 65 series aluminum profile

It comes from China's largest aluminum profile production base, with an annual output value of up to 3 million tons. The high starting point has created a complete aluminum processing industry chain with the shortest distance in the same region of the world, including thermoelectricity, alumina, electrolytic aluminum, casting, aluminum profile/hot rolling-cold rolling-foil rolling, and waste aluminum recycling (recycling). The company has always adhered to the development strategy of "innovation-driven, high-end manufacturing, and deep processing". The terminal products are widely used in aviation, automobiles, rail transportation, ships, energy, petrochemicals, containers, industrial profiles, fine civil profiles, high-end system doors and windows, container cans, food packaging, battery foil, aluminum deep processing and other fields. The products are sold all over the world and can be customized according to customer needs.

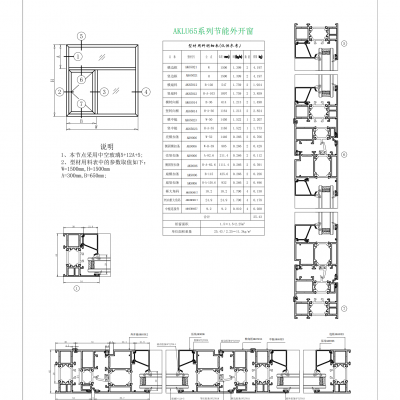

AKLU 65 series energy-saving single system window

  AKLU 65 series is an energy-saving single window, without diamond mesh, isothermal flush heat insulation, pin injection technology, and connector injection technology for center support connection; enhanced waterproof, airtight, heat insulation, and sound insulation performance. The internal and external flush design enhances visual beauty.

Basic configuration parameters :

Frame size : 65mm × 55mm × 30mm

Center frame size : 65mm × 72mm × 30mm

Inward opening size: No inward opening design

Profile wall thickness : 1.4mm, 1.8mm

External opening size: 83mm × 65mm × 39mm

Glass notch : 28mm

Glass specifications: 5mm+16A+5mm, 5mm+12A+5mm optional

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 28mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

Opening method: external opening, external opening and external hanging

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 8

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 5

Thermal insulation: National standard GB/T 31433-2015, test result is level 8

Sound insulation: National standard GB/T 8485-2008, test result is level 4 ≤ 30db
