Nanshan AKLU 90 Series Door and Window Aluminum Profiles

It comes from China's largest aluminum profile production base, with an annual output value of up to 3 million tons. The high starting point has created a complete aluminum processing industry chain with the shortest distance in the same region of the world, including thermoelectricity, alumina, electrolytic aluminum, casting, aluminum profile/hot rolling-cold rolling-foil rolling, and waste aluminum recycling (recycling). The company has always adhered to the development strategy of "innovation-driven, high-end manufacturing, and deep processing". The terminal products are widely used in aviation, automobiles, rail transportation, ships, energy, petrochemicals, containers, industrial profiles, fine civil profiles, high-end system doors and windows, container cans, food packaging, battery foil, aluminum deep processing and other fields. The products are sold all over the world and can be customized according to customer needs.

AKLU 90 series energy-saving steel mesh integrated system window

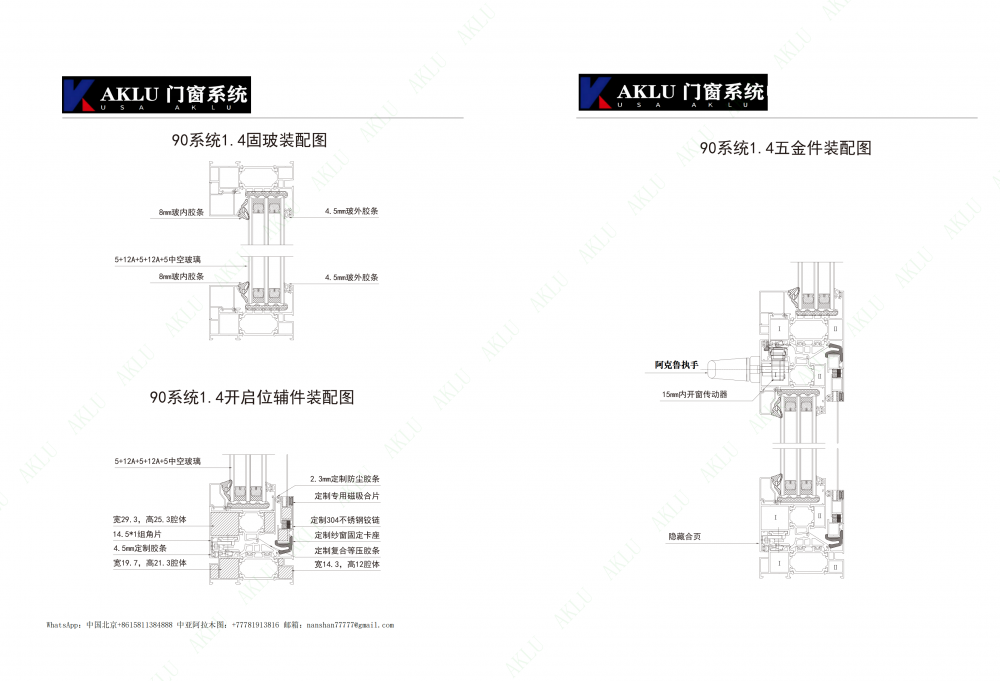

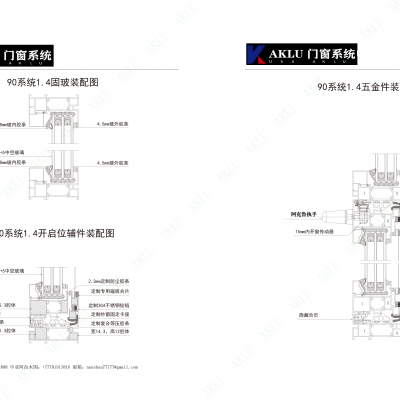

  AKLU90 series is an energy-saving steel mesh integrated window with a flush design inside and outside to enhance the aesthetic vision. It adopts the pin injection process, and the middle support connection adopts the connector injection process to enhance the waterproof, airtight, heat insulation and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; optional light strip decoration. Non-invisible drainage grooves can also be selected, and the floor drain drainage process is standardly equipped with: dust strips, steel sheets, and anti-sinking blocks.

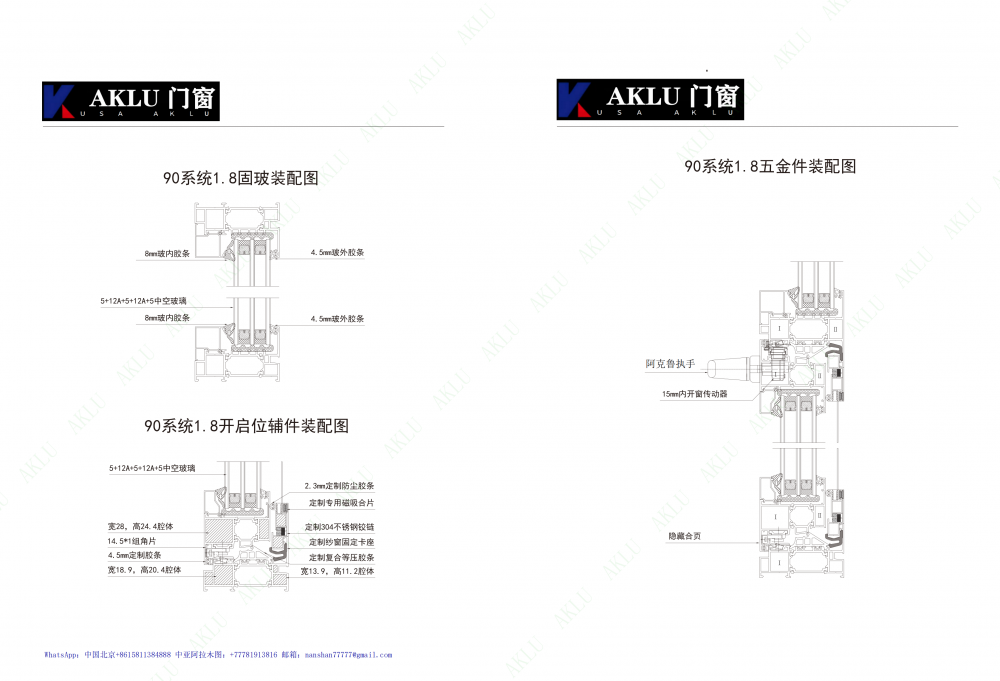

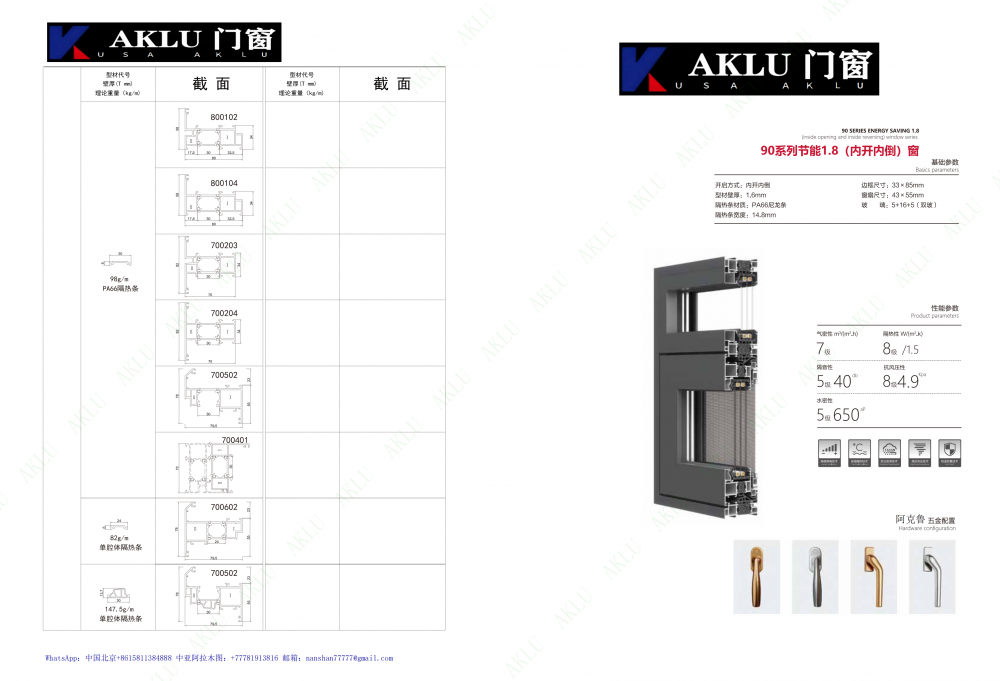

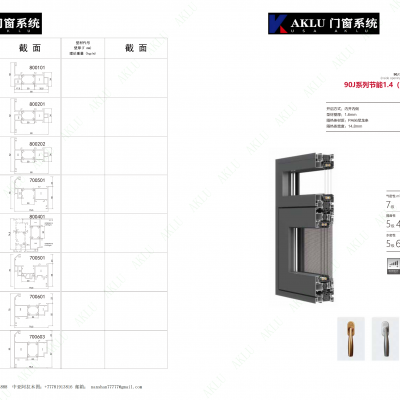

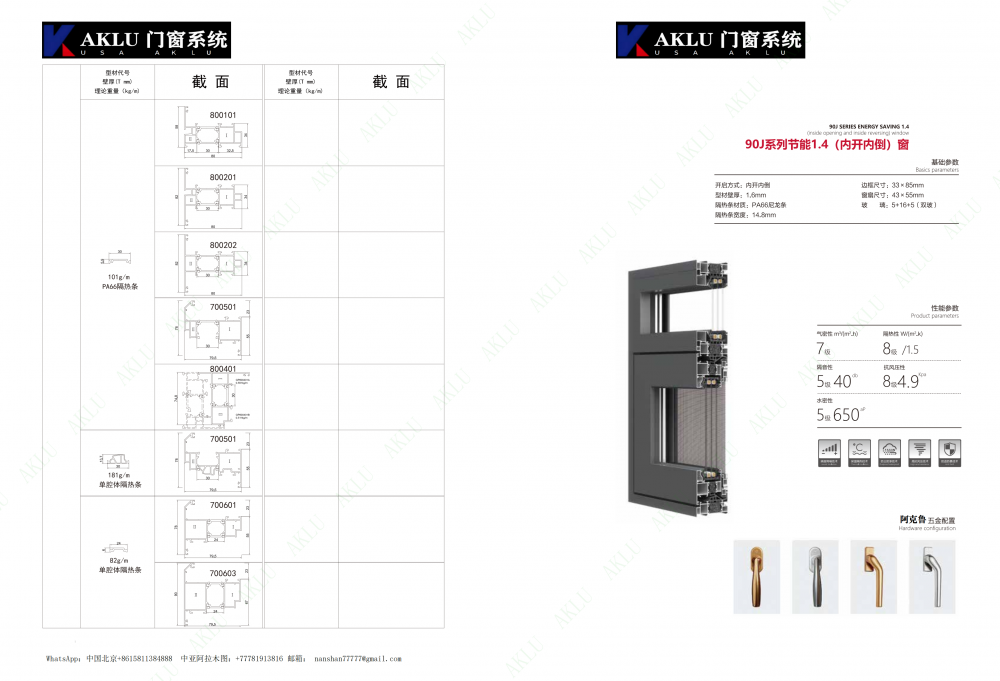

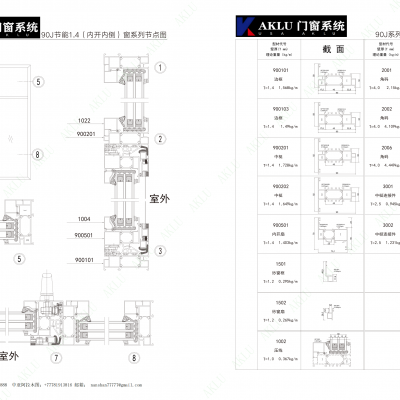

Basic configuration parameters :

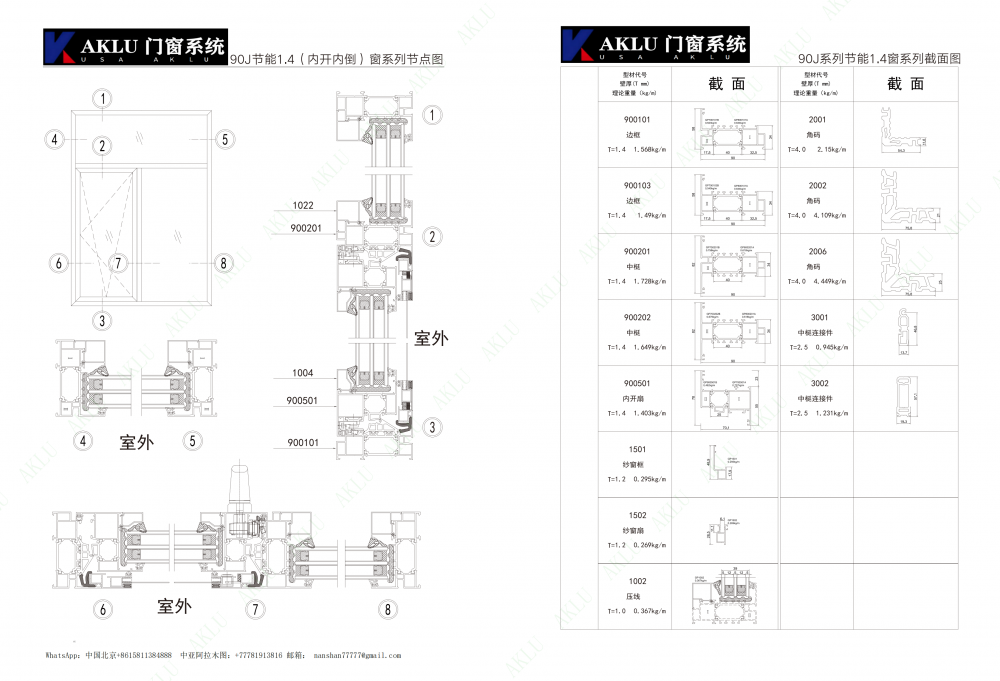

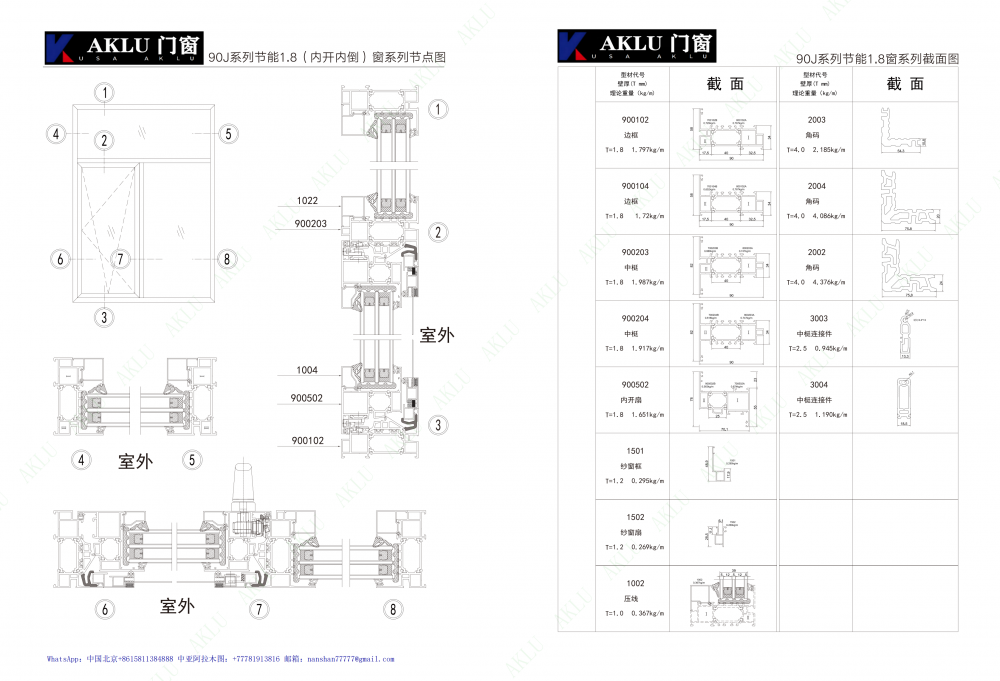

Frame size : 90mm × 58mm × 34mm

Center size : 90mm × 82mm × 34mm

Inner opening size: 78mm × 70 mm × 55mm

Profile wall thickness : 1.4mm, 1.8mm

Outward opening size: No outward opening design

Glass notch : 30mm-43mm optional

Glass assembly specifications: 5mm+16A+5mm, 5mm+12A+5+12A+5

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 40mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

Opening method: Inward opening, inward opening and inward tilting

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 7

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 8

Thermal insulation: National standard GB/T 31433-2015, test result is level 9

Sound insulation: National standard GB/T 8485-2008, test result is level 5 ≤ 40db
