It comes from China's largest aluminum profile production base, with an annual output value of up to 3 million tons. The high starting point has created a complete aluminum processing industry chain with the shortest distance in the same region of the world, including thermoelectricity, alumina, electrolytic aluminum, casting, aluminum profile/hot rolling-cold rolling-foil rolling, and waste aluminum recycling (recycling). The company has always adhered to the development strategy of "innovation-driven, high-end manufacturing, and deep processing". The terminal products are widely used in aviation, automobiles, rail transportation, ships, energy, petrochemicals, containers, industrial profiles, fine civil profiles, high-end system doors and windows, container cans, food packaging, battery foil, aluminum deep processing and other fields. The products are sold all over the world and can be customized according to customer needs.

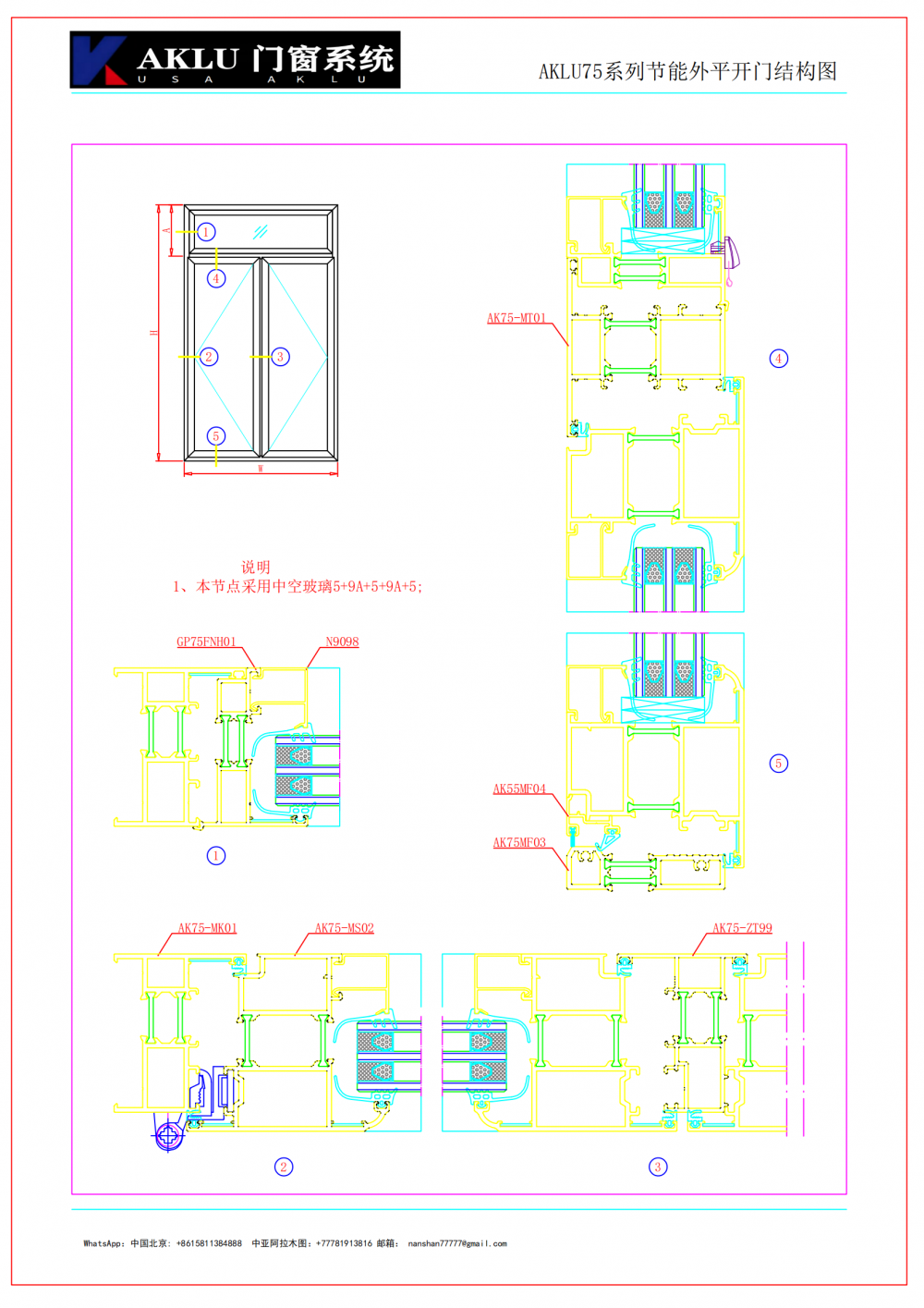

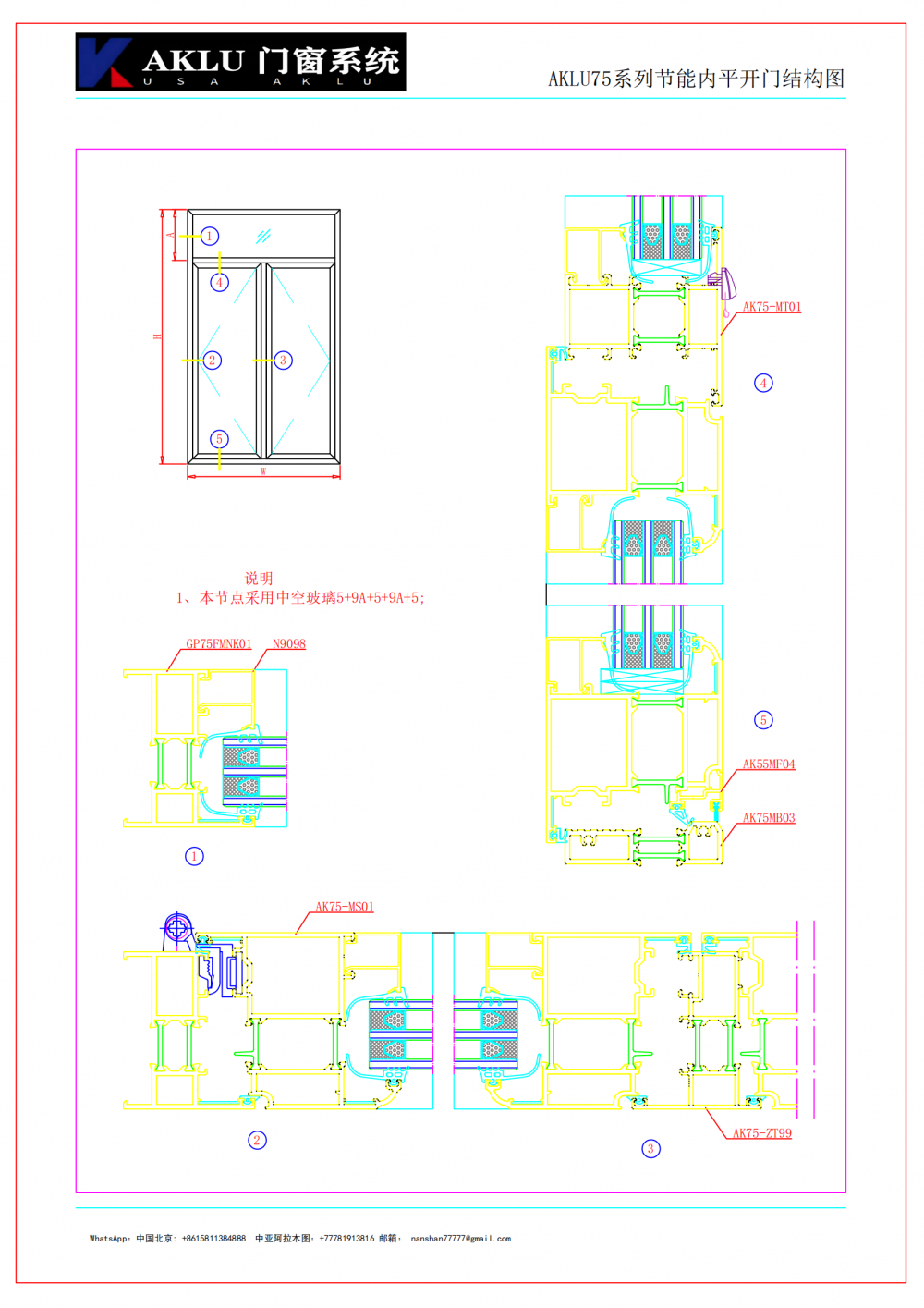

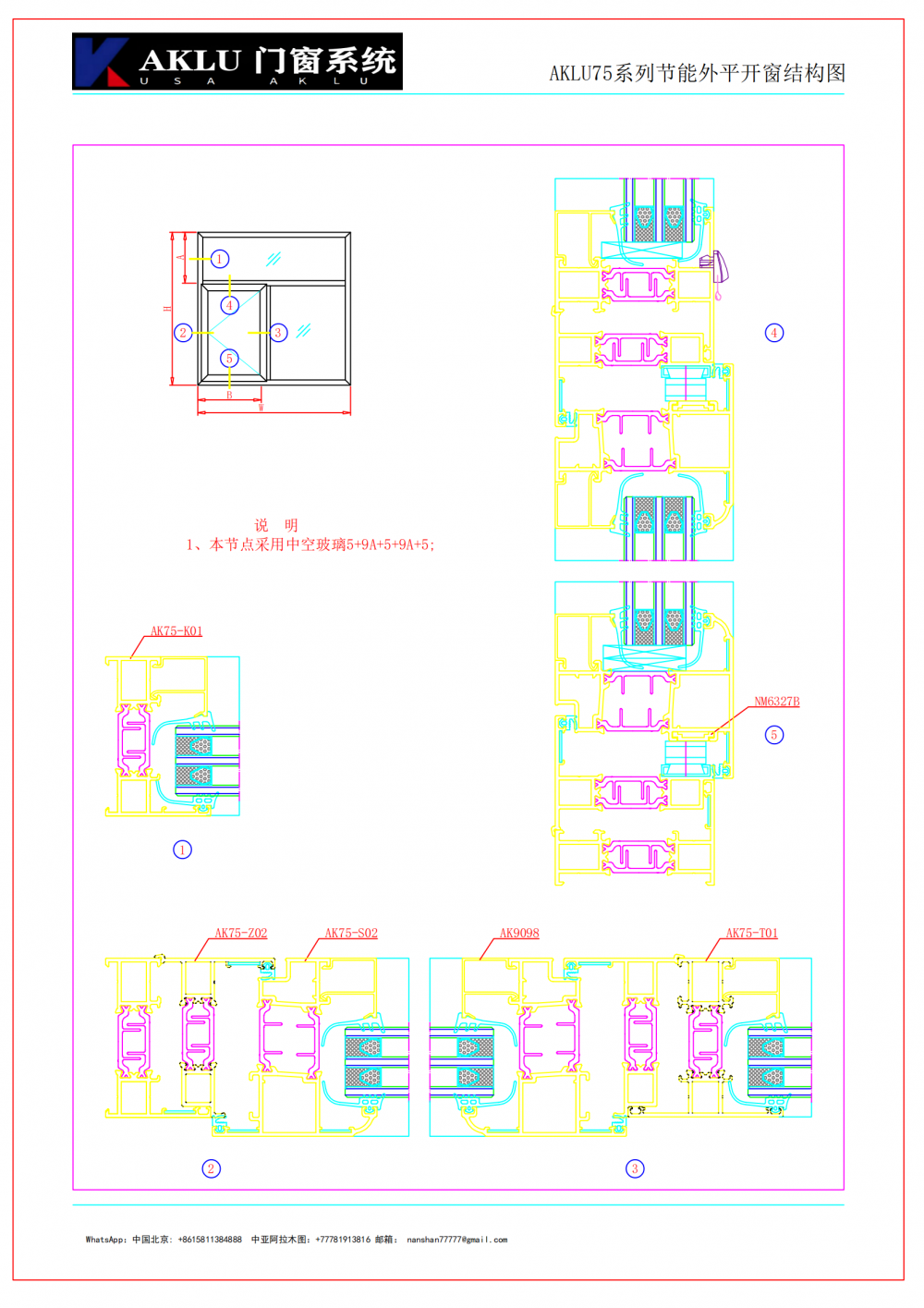

AKLU 75 series engineering energy-saving doors and windows

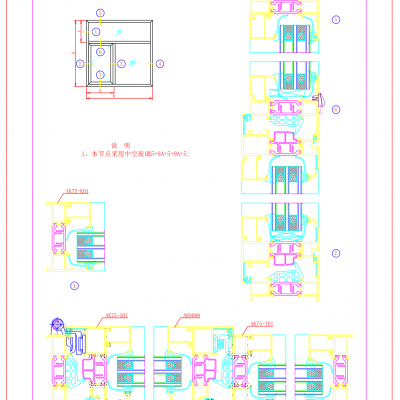

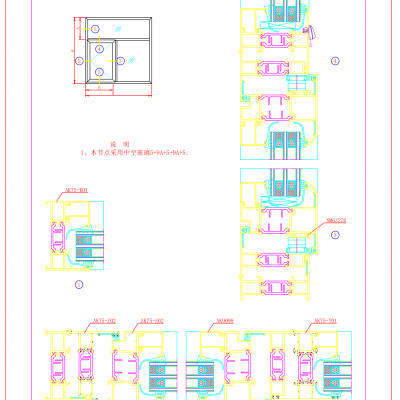

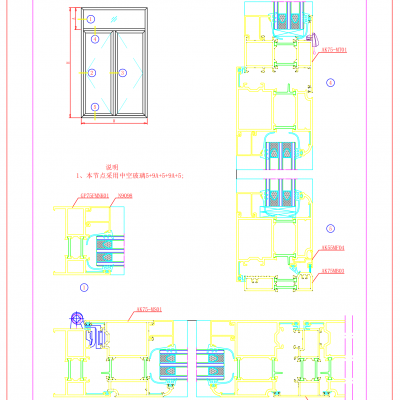

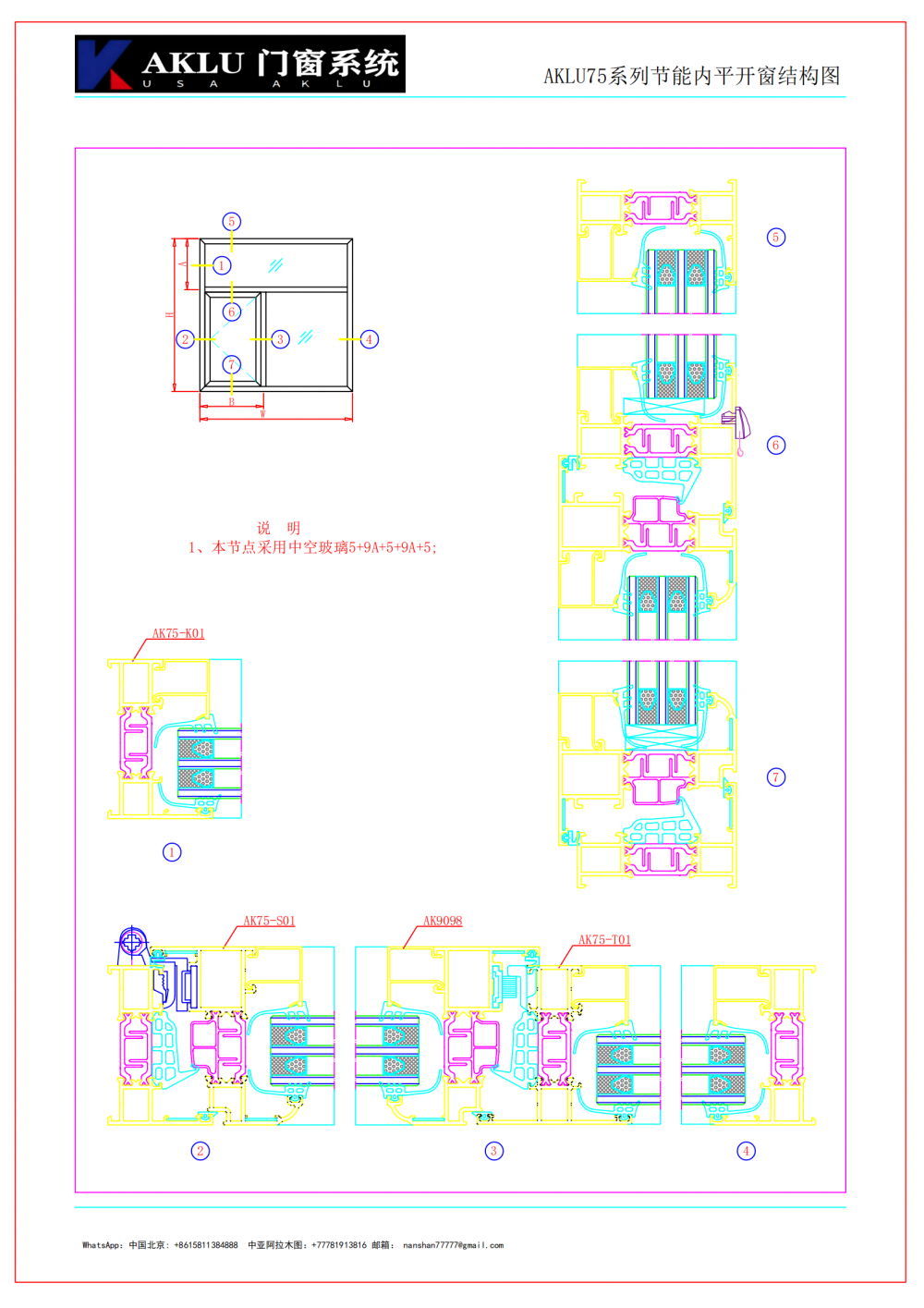

AKLU75 series are energy-saving single-body doors and windows with a flush design to enhance the aesthetic appearance. The corner assembly adopts the corner injection process; the middle support connection adopts the end surface glue treatment process; the insulation strip adopts a multi-cavity design to enhance the waterproof, airtight, heat insulation and sound insulation performance. Standard configuration: steel sheet, anti-sinking block.
Basic configuration parameters :

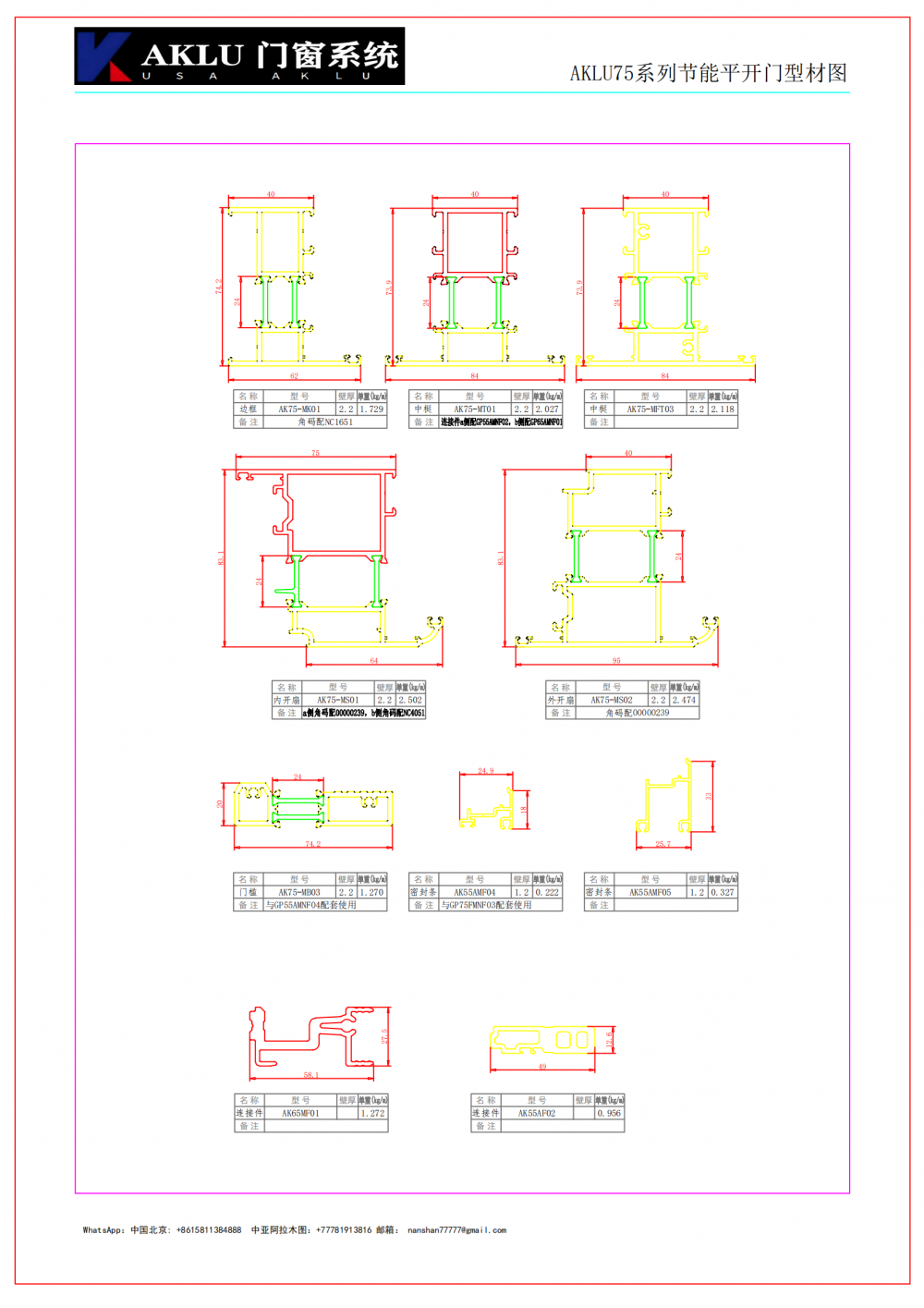

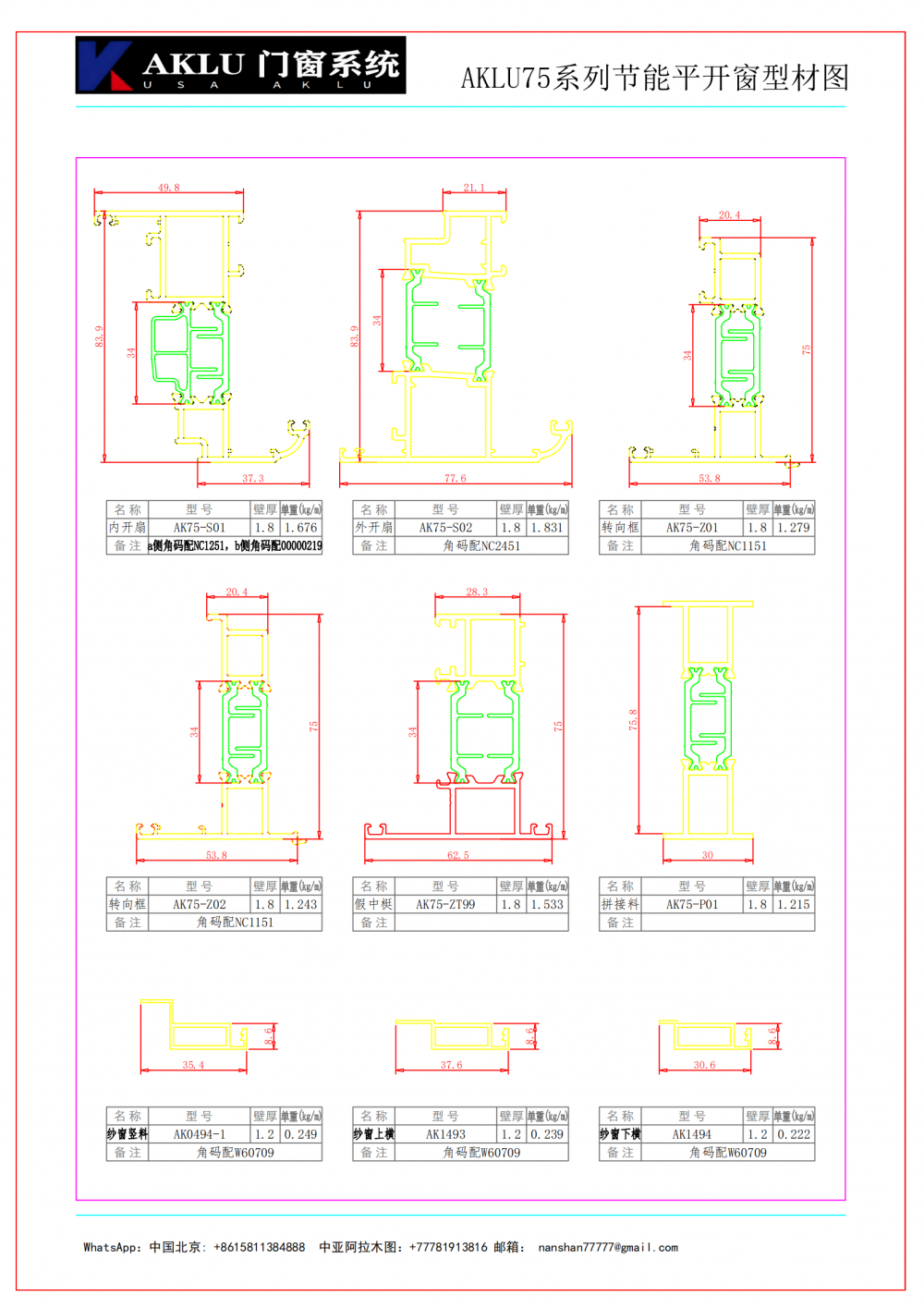

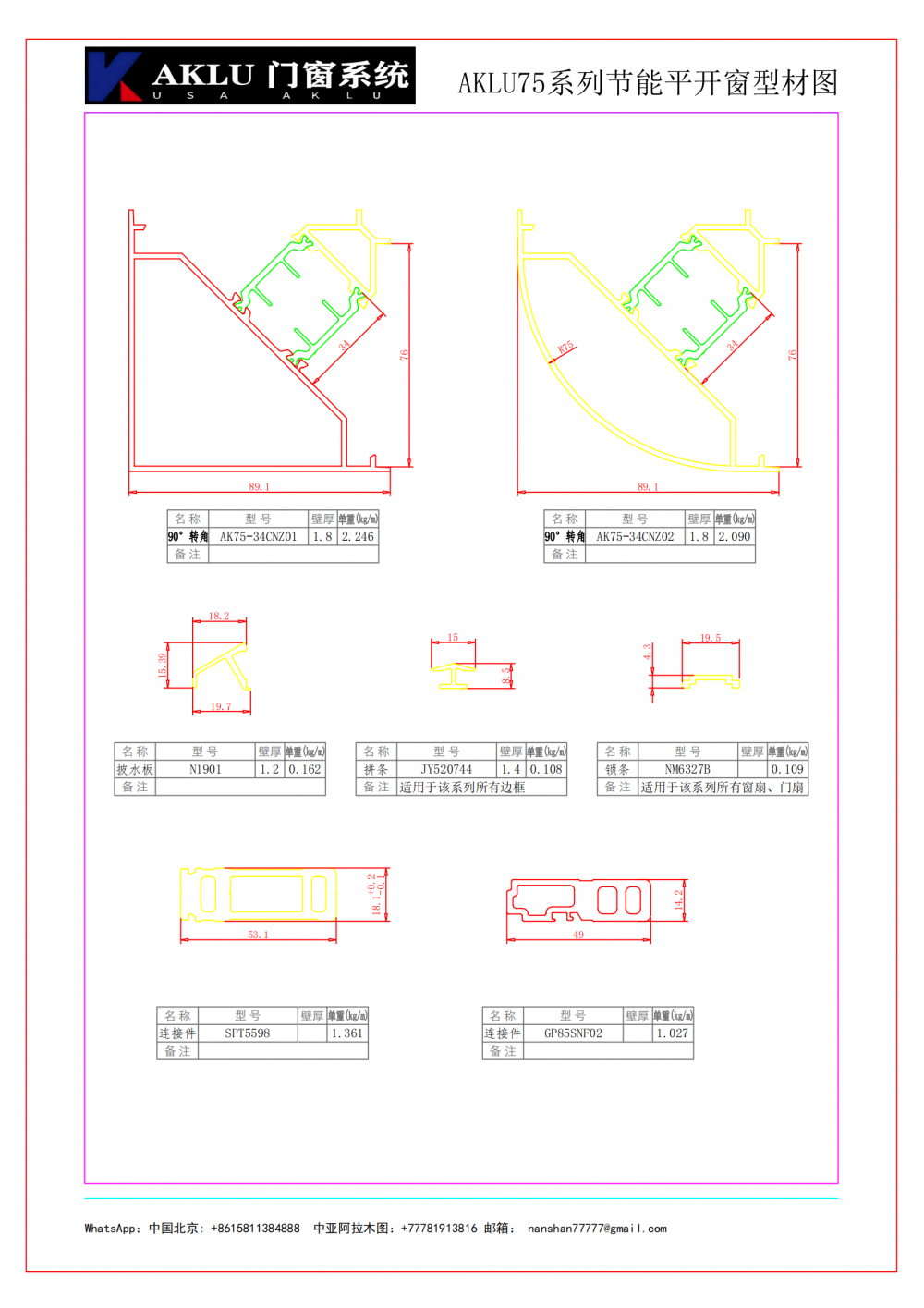

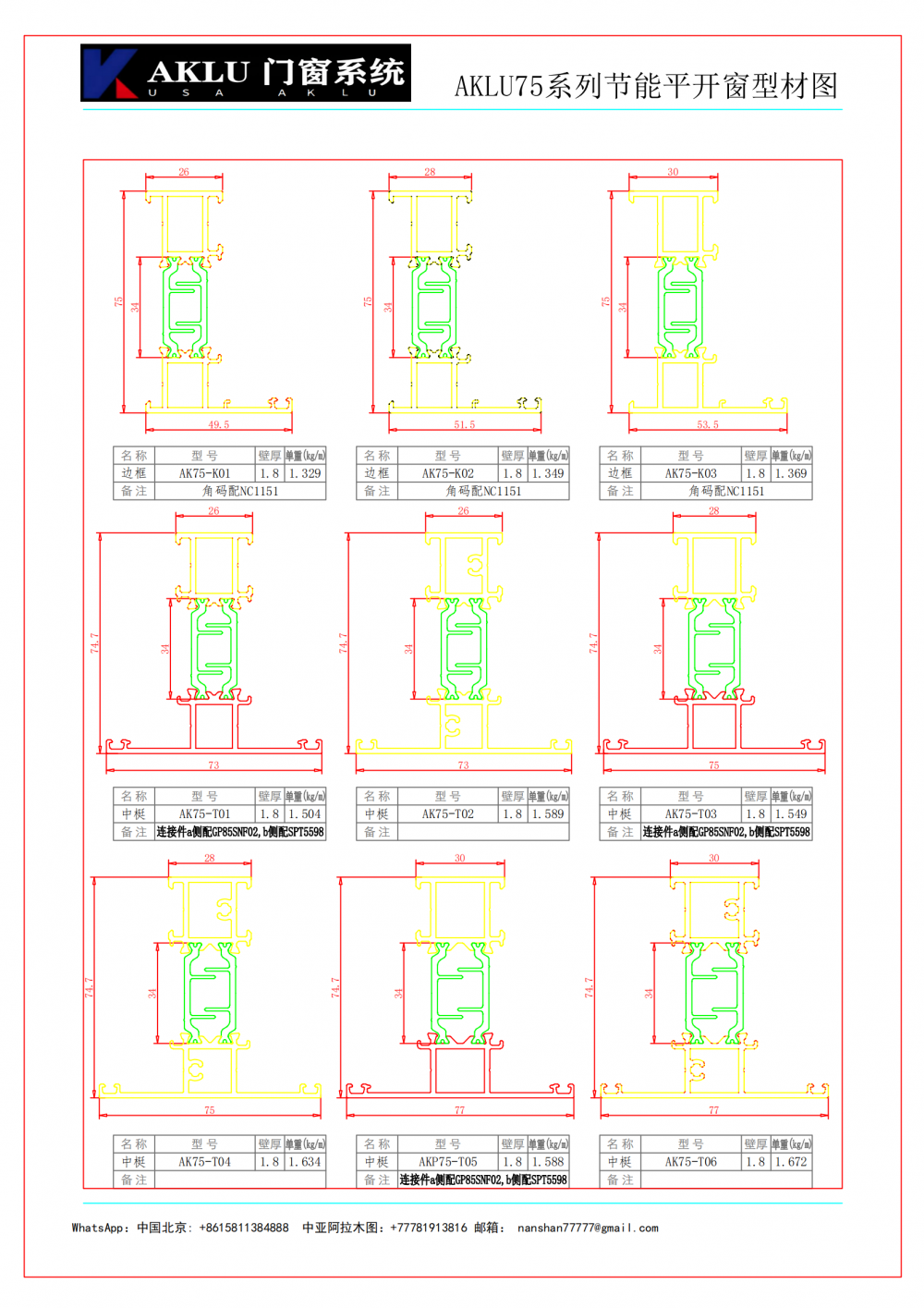

size : 75mm × 50mm × 30mm
Center frame size : 75mm × 73mm × 30mm
Inner opening size: 85mm × 50 mm × 38mm

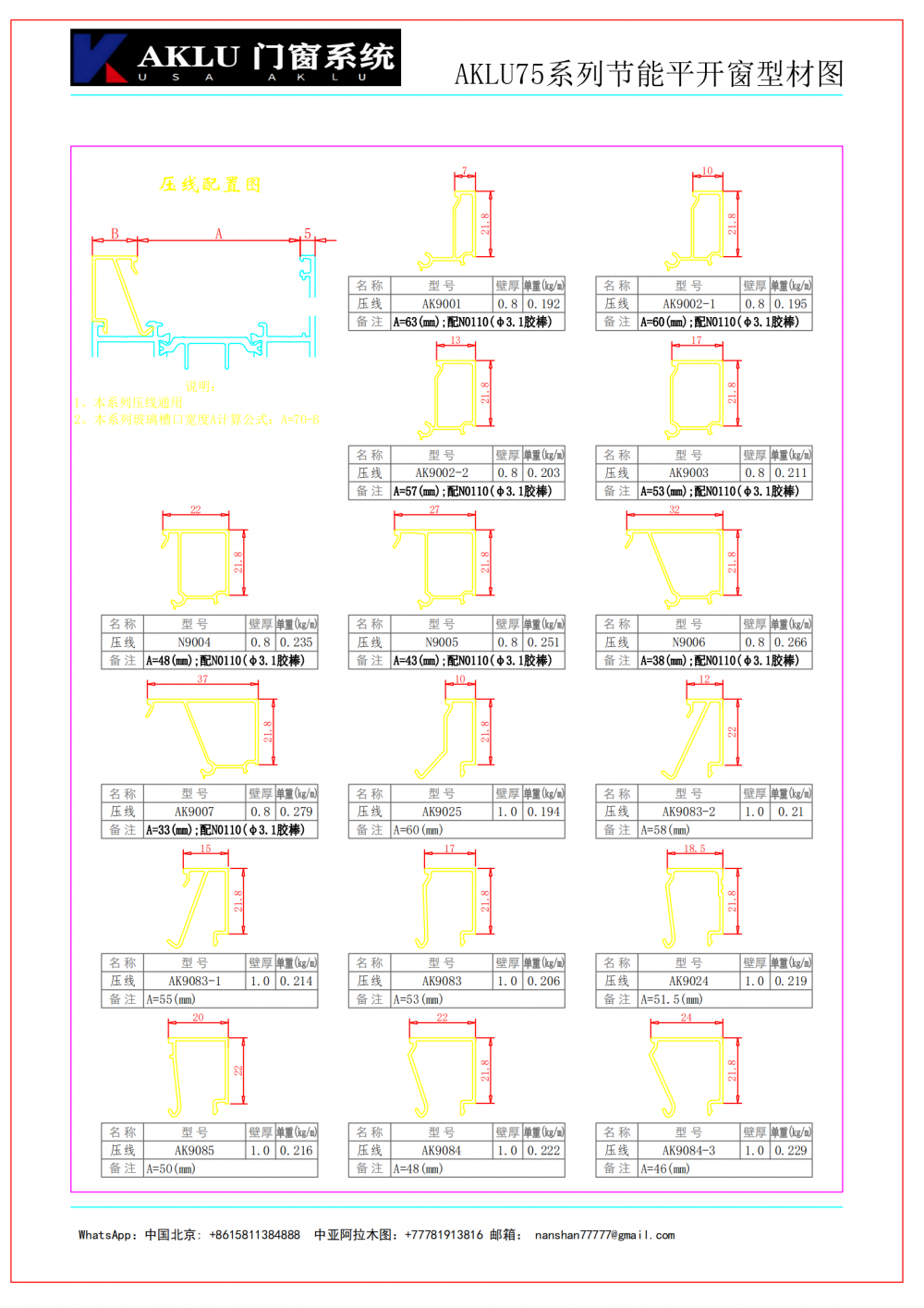

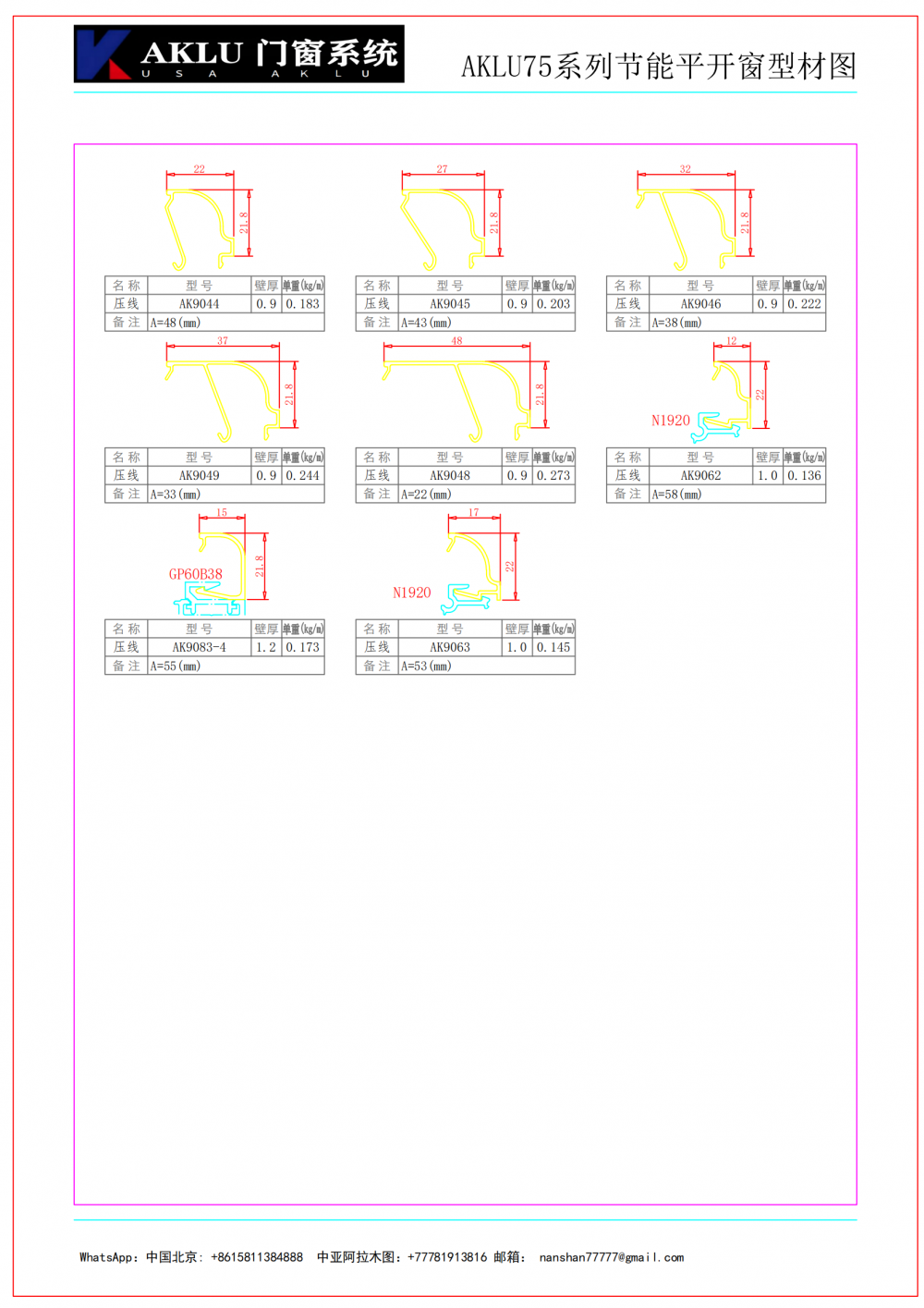

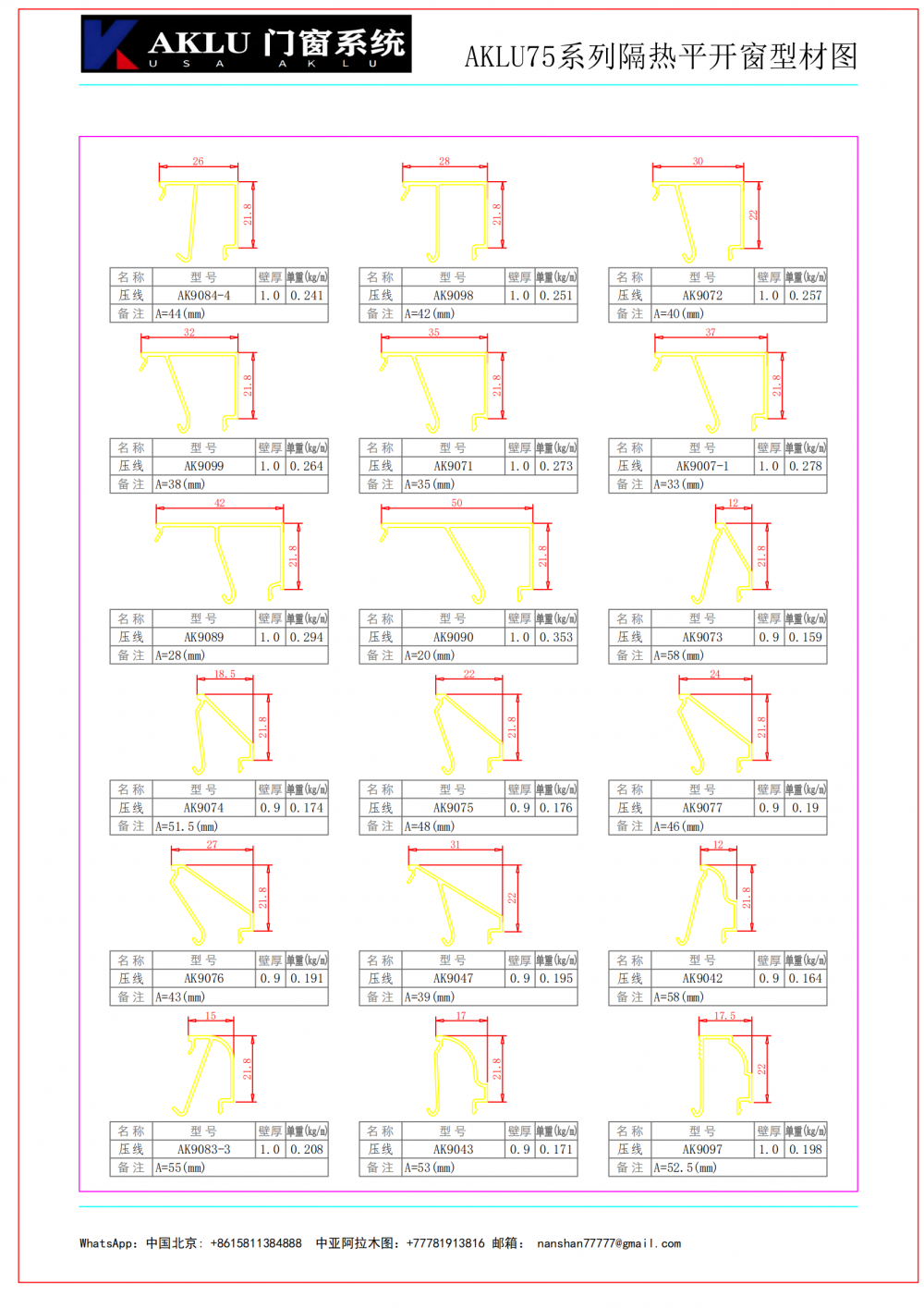

Profile wall thickness: 1.4mm 1.8mm 2.2mm
External opening size: 85mm × 78 mm × 33mm
Glass notch : 43mm-63mm
Glass specifications: 5+12A+5+12A+5mm, 6mm+9A+6+9A+6 optional
Insulation strip material: PA66 nylon strip
Thermal insulation strip width: 34mm, can be equipped with multiple cavities
Sealing strip material: EPDM rubber strip
Hardware configuration: Standard AKLU European standard notch
Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging
Product performance parameters:
Air tightness: National standard GB/T 31433-2015, test result is level 8
Water tightness: National standard GB/T 31433-2015, test result is level 8
Wind pressure resistance: National standard GB/T 31433-2015, test result is level 8
Thermal insulation: National standard GB/T 31433-2015, test result is level 8
Sound insulation: National standard GB/T 8485-2008, test result is level 3 ≤ 40db
