It comes from China's largest aluminum profile production base, with an annual output value of up to 3 million tons. The high starting point has created a complete aluminum processing industry chain with the shortest distance in the same region of the world, including thermoelectricity, alumina, electrolytic aluminum, casting, aluminum profile/hot rolling-cold rolling-foil rolling, and waste aluminum recycling (recycling). The company has always adhered to the development strategy of "innovation-driven, high-end manufacturing, and deep processing". The terminal products are widely used in aviation, automobiles, rail transportation, ships, energy, petrochemicals, containers, industrial profiles, fine civil profiles, high-end system doors and windows, container cans, food packaging, battery foil, aluminum deep processing and other fields. The products are sold all over the world and can be customized according to customer needs.

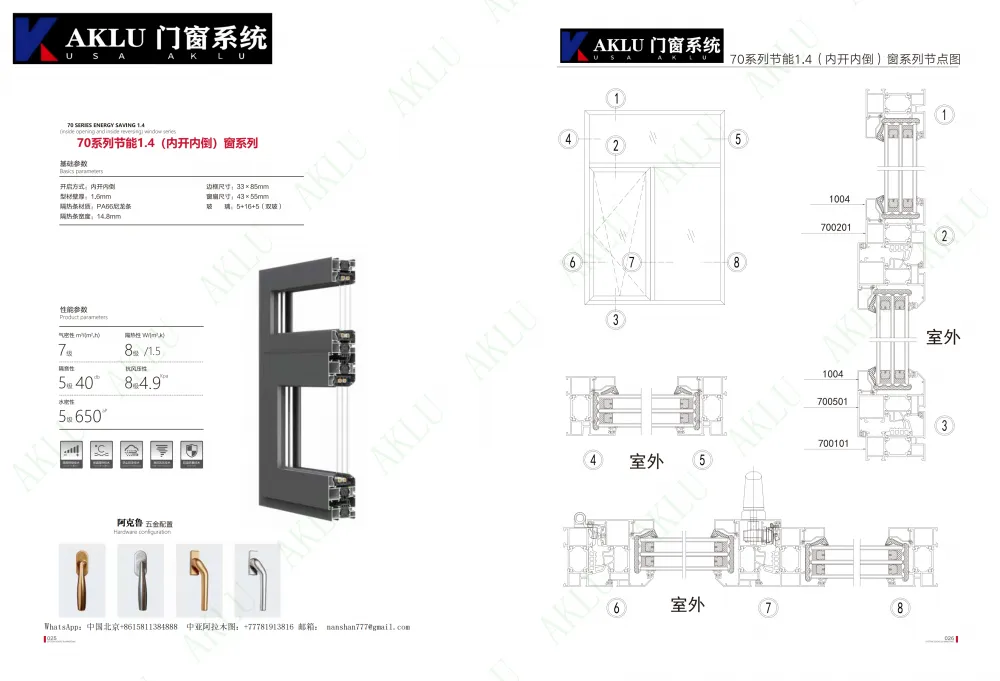

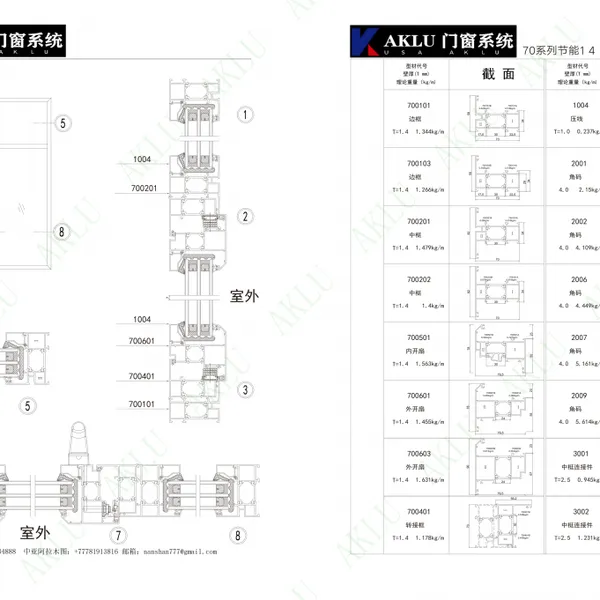

AKLU 70 series energy-saving single system window

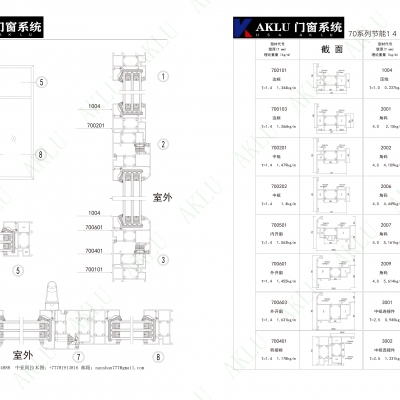

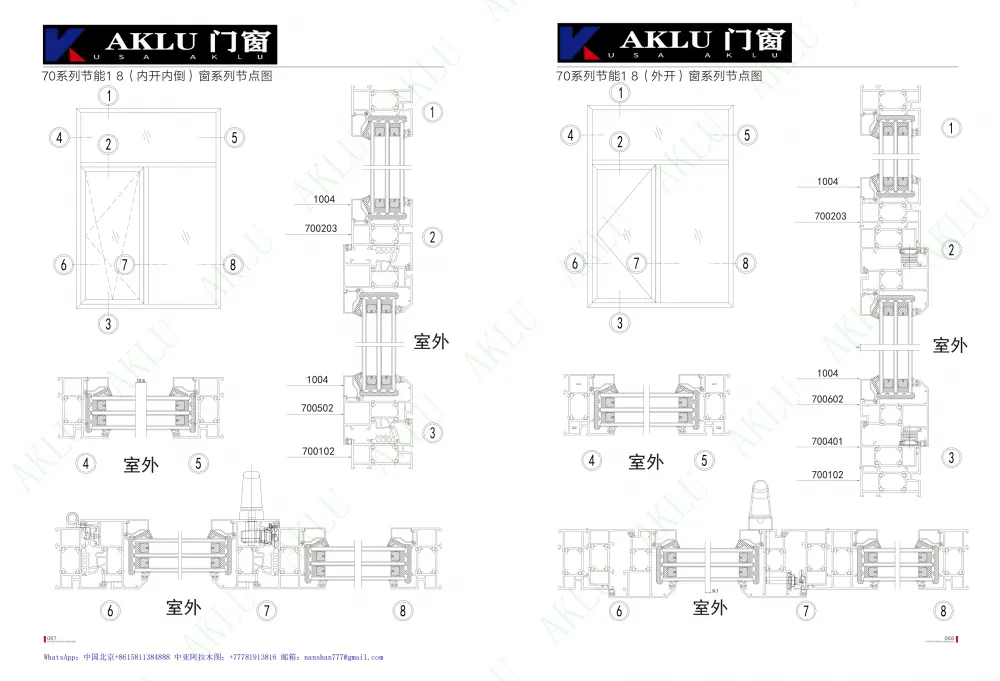

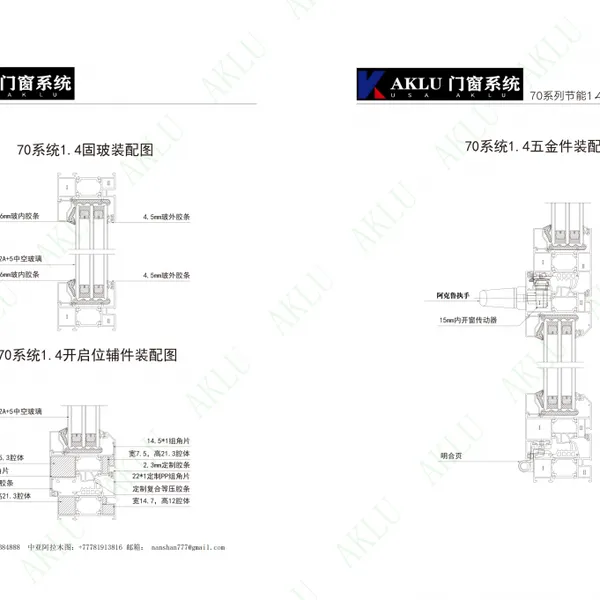

AKLU 70 series is an energy-saving single window, without diamond mesh, which enhances the thermal insulation performance. It adopts the pin injection process, and the middle support connection adopts the connector injection process; it enhances the waterproof, airtight, thermal and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; it can be equipped with light strip decoration. Standard configuration: dust strip, steel sheet, anti-sinking block.
Basic configuration parameters :
Frame size : 70mm × 58mm × 34mm
Center size : 70mm × 82mm × 34mm
Inner opening size: 79.5mm × 78 mm × 55mm
wall thickness: 1.4mm, 1.8 mm
External opening size: 79.5mm × 78 mm × 25mm
Glass notch : 30mm-43mm
Glass specifications: 5mm+16A+5mm, 5mm+12A+5+12A+5
Insulation strip material: PA66 nylon strip
Thermal insulation strip width: 30mm , can be equipped with multiple cavities
Sealing strip material: EPDM rubber strip
Hardware configuration: Standard AKLU European standard notch
Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging
Product performance parameters:
Air tightness: National standard GB/T 31433-2015, test result is level 7
Water tightness: National standard GB/T 31433-2015, test result is level 5
Wind pressure resistance: National standard GB/T 31433-2015, test result is level 5
Thermal insulation: National standard GB/T 31433-2015, test result is level 7
Sound insulation: National standard GB/T 8485-2008, test result is level 5 ≤ 40db
