Help CenterMesh Silicone Hose, Silicone Braided Hose
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Inorganic Silicone
Certification:
ISO
Application:
Medical, Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin shanghai qingdao shenzhen
Delivery Detail:
5 days
Related Products
-
Silicone Rubber Fiber Braided Reinforced Hose, Silicone Braided HoseNegotiableMOQ: 1 Piece -
Platinum Vulcanized Mesh Silicone HoseNegotiableMOQ: 1 Piece
-
Braided Silicone Rubber Hose With Low Temperature Resistance and Enhanced Silicone Rubber HoseNegotiableMOQ: 1 Piece
-
Platinum Vulcanized Silicone Tubing With Built-in Glass Fiber Thread ReinforcementNegotiableMOQ: 1 Piece
-
Silicone Rubber Fiber Braided Reinforced Hose, Silicone Braided HoseNegotiableMOQ: 1 Piece
Material
Inorganic Silicone
Certification
ISO
Application
Medical, Industrial
Product Name
Silicone Vacuum Hose
Tube
100% High Quality Silicone
Thickness
1/1.5/2mm
Characteristic
No Taste, No Toxic, Eco-Friendly
Characteristic2
Any Colors Are Available
Sample
Free Sample Available
Temperature
-40~230 Degree
Hardness
50~80 Shroe a
Transport Package
Woven Bag, Plastic Film and Carton
Specification
custom
Trademark
Biaohui
Origin
China

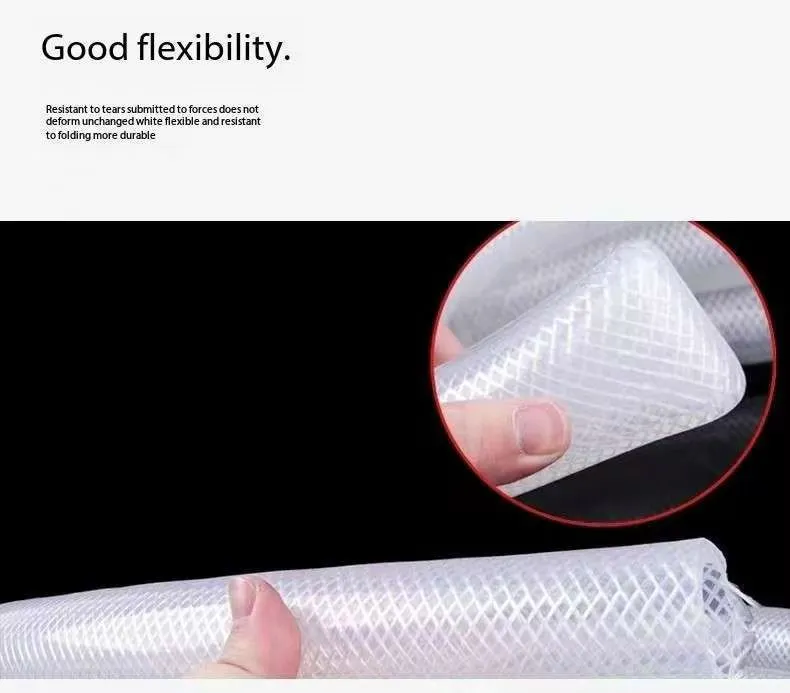

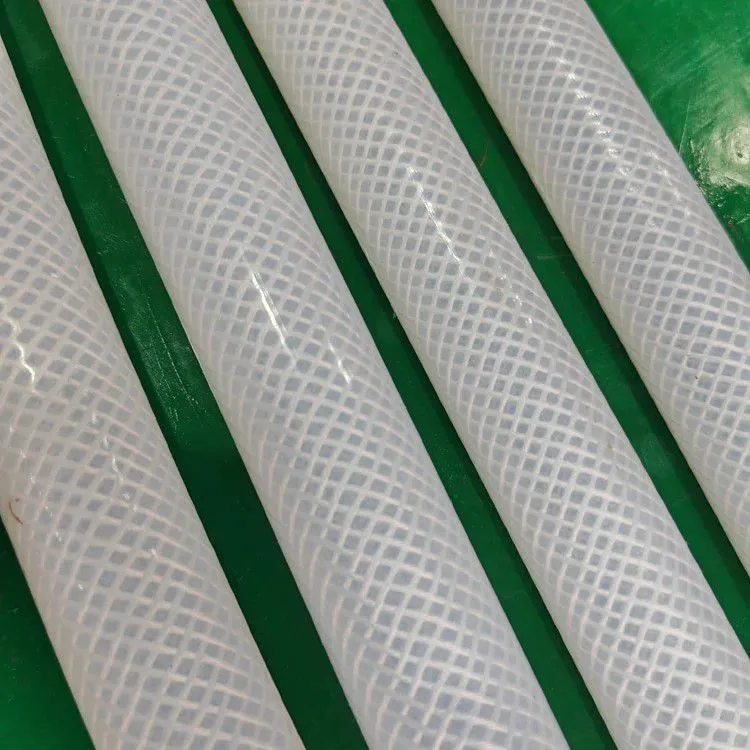

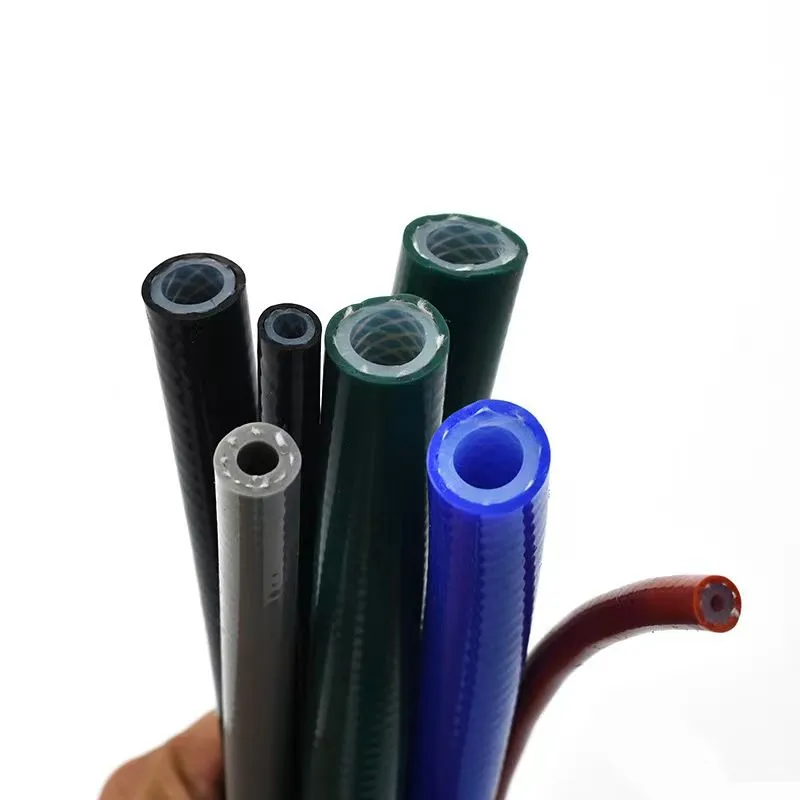

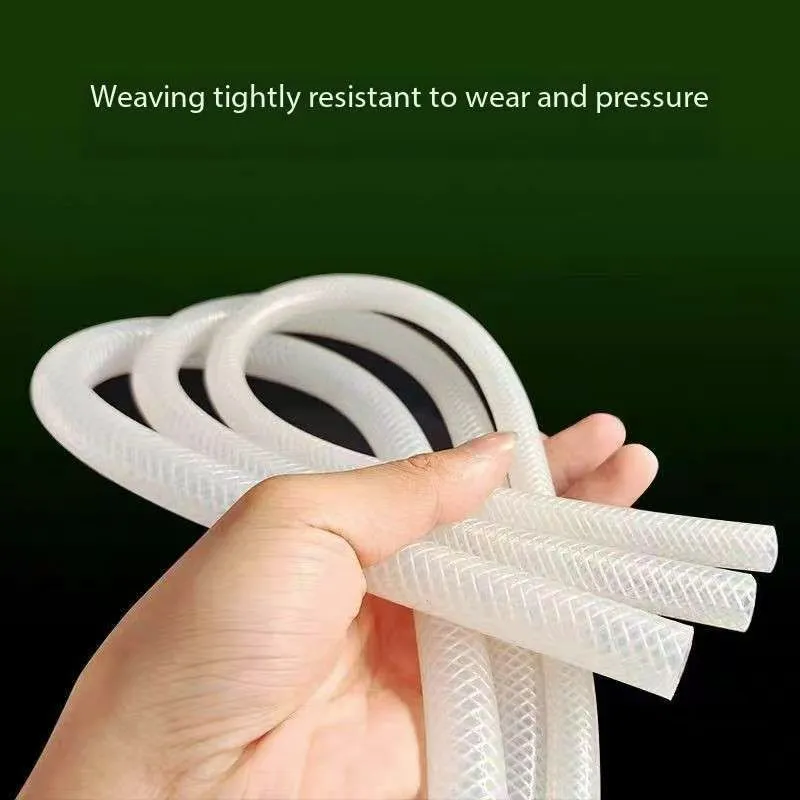

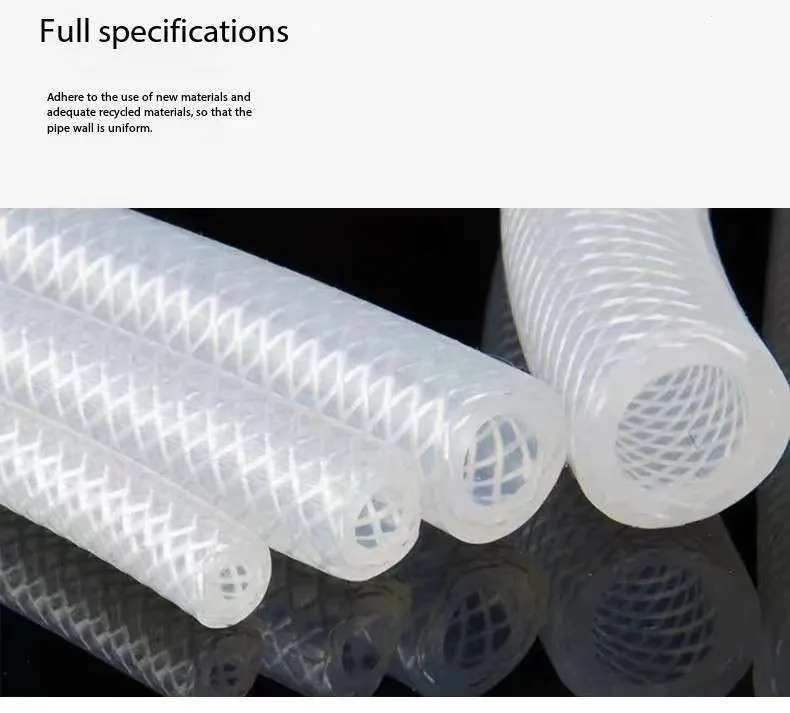

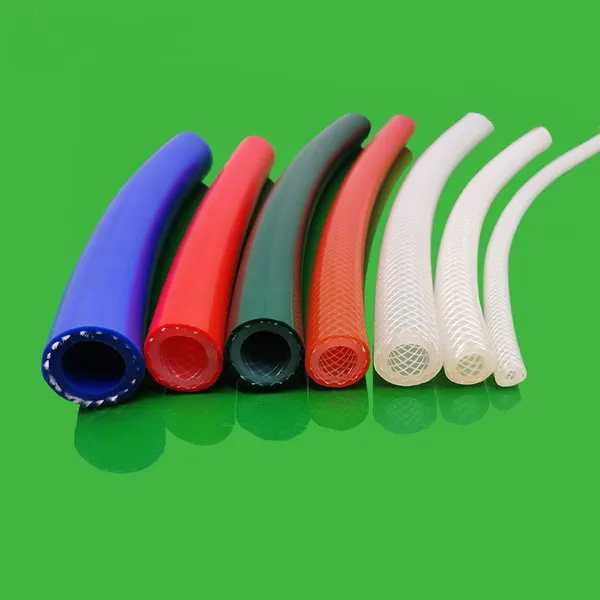

Mesh Silicone Hose, Silicone Braided Hose
Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc
Construction: Type PF is manufactured from High purity platinum cured Silicone with polyester fiber reinforcement.
Temp. Range: -60°C and 200°C.
Colour: Translucent (Coloured covers available)
Length: Standard maximum length is 50 meters, for a longer length, please contact us.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
Technical Parameter：
Cord |
ID |
OD |
Bending |
W.P |
B.P |
|
in. |
mm |
mm |
mm |
bar |
bar |
|
005 |
3/16" |
4.8 |
10 |
25 |
12 |
45 |
006 |
1/4" |
6.4 |
12.6 |
40 |
11.5 |
35 |
008 |
5/16" |
7.9 |
15 |
45 |
10 |
30 |
010 |
3/8" |
9.5 |
16.5 |
60 |
9 |
27 |
013 |
1/2" |
12.7 |
20.3 |
70 |
8.5 |
25.5 |
016 |
5/8" |
15.9 |
24 |
85 |
7 |
21 |
019 |
3/4" |
19 |
28 |
95 |
6.4 |
19 |
022 |
7/8" |
22 |
31.5 |
110 |
5.5 |
17 |
025 |
1" |
25.4 |
35.2 |
135 |
5 |
15 |
032 |
1-1/4" |
32 |
40.8 |
160 |
2.5 |
7.5 |
