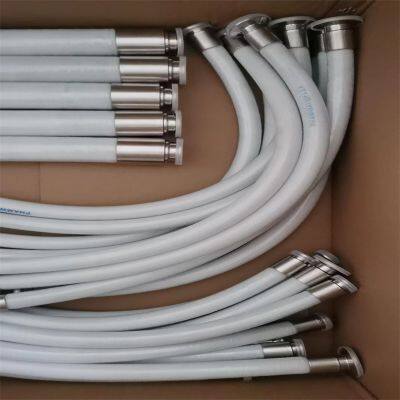

Help CenterFluorosilicone Steel Wire Silicone Rubber Tube
Related Products
-
Double Layer Steel Wire High Temperature and High Pressure Silicone HoseNegotiableMOQ: 1 Piece -
Food Sanitation Grade Platinum Vulcanized Silicone Hose, Pharmaceutical Silicone HoseNegotiableMOQ: 1 Piece
-
High Temperature Four Layer Cloth Reinforced HoseNegotiableMOQ: 1 Piece
-
Four Layer Polyester Fabric Silicone Steel Pipe Sanitary Grade Silicone Hose High Temperature ResistanceNegotiableMOQ: 1 Piece
-
Sanitary Pressure Hose Quick Fitting Pressure Silicone HoseNegotiableMOQ: 1 Piece
Application: It can be used in high and low temperature food, cosmetics, chemical, pharmaceutical and bioengineering with acidic or alkaline substances, such as suction of yogurt dairy products, edible oil, alkaline cosmetic mask, laundry fluid, or biological drugs with alkaline or acidic substances, etc.

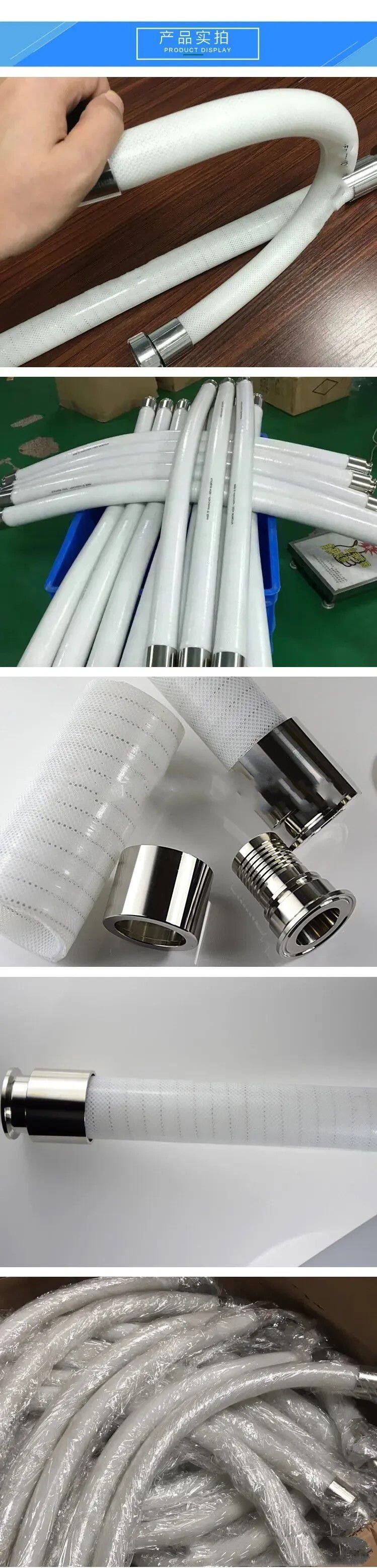

Construction: Inner tube fluorosilicone, reinforced with four layers of polyester fiber and stainless steel wire, outer tube platinum cured silicone.
Temp. Range: -60°C and 180°C
Color: Translucent; other colors can be customized.
Advantages:
1- Smooth inner wall with good corrosion resistance, can be used to transport acid and alkali medium;
2- Odorless, tasteless, completely non-toxic, without any plasticizers and additives;
3- It has good air tightness and is not easy to penetrate substances,
4- Oil resistance, can be used to transport various edible oils, flavors, etc.
5- Abrasion resistance, can be used to transport high-pressure dry ice, ice water mixture.
6- Appearance anti-adhesion, vacuum-resistant, CIP and SIP cleanable.
Standard length: 6m or 10m
| CORD | ID | OD | BEND | B.P | W.P | VACUUMM | |
| in. | mm | mm | mm | bar | bar | bar | |
| 006 | 1/4" | 6.4 | 17.4 | 120 | 19.5 | 58.5 | 0.91 |
| 008 | 5/16" | 7.9 | 19.0 | 130 | 18 | 54 | 0.91 |
| 010 | 3/8" | 9.5 | 21.0 | 140 | 16.5 | 49.5 | 0.91 |
| 013 | 1/2" | 12.7 | 24.0 | 150 | 15 | 45 | 0.91 |
| 016 | 5/8" | 15.9 | 27.0 | 160 | 13.5 | 40.5 | 0.91 |
| 019 | 3/4" | 19 | 30.0 | 170 | 12.5 | 37.5 | 0.91 |
| 022 | 7/8" | 22 | 33.0 | 180 | 12 | 36 | 0.91 |
| 025 | 1" | 25.4 | 36.0 | 190 | 11 | 33 | 0.91 |
| 032 | 1-1/4" | 32 | 43.0 | 200 | 9.5 | 28.5 | 0.91 |
| 038 | 1-1/2" | 38 | 49.0 | 210 | 8 | 24 | 0.91 |
| 045 | 1-3/4" | 45 | 56.0 | 230 | 7.5 | 22.5 | 0.91 |
| 051 | 2" | 50.8 | 62.0 | 250 | 6.5 | 19.5 | 0.91 |
| 064 | 2-1/2" | 63.5 | 74.0 | 360 | 6 | 18 | 0.91 |
| 076 | 3" | 76.2 | 88.0 | 500 | 4.5 | 13.5 | 0.91 |
| 089 | 3-1/2" | 89 | 102.0 | 900 | 3.5 | 10.5 | 0.91 |
| 102 | 4" | 102 | 115.0 | 1200 | 3 | 9 | 0.91 |
| 127 | 5" | 127 | 141.0 | - | 2.5 | 7.5 | 0.91 |
| 152 | 6" | 152 | 166.0 | - | 2 | 6 | 0.91 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp：+86 15075803959
WeChat ： +8615075803959
