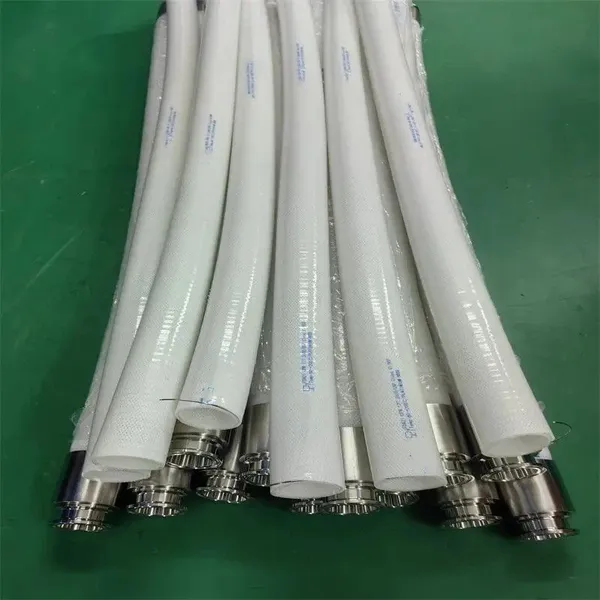

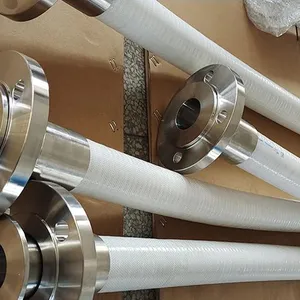

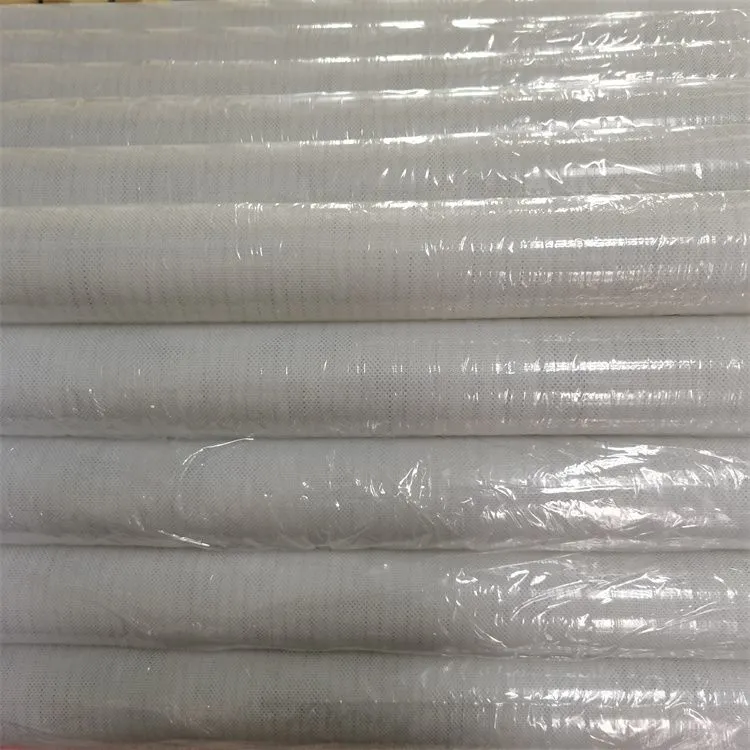

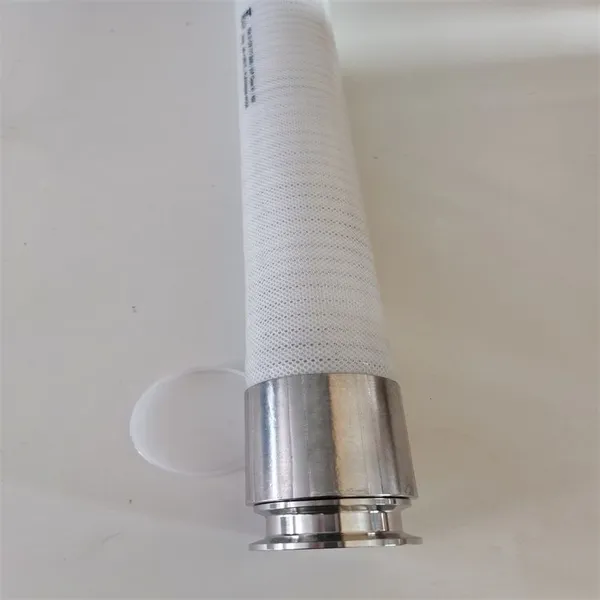

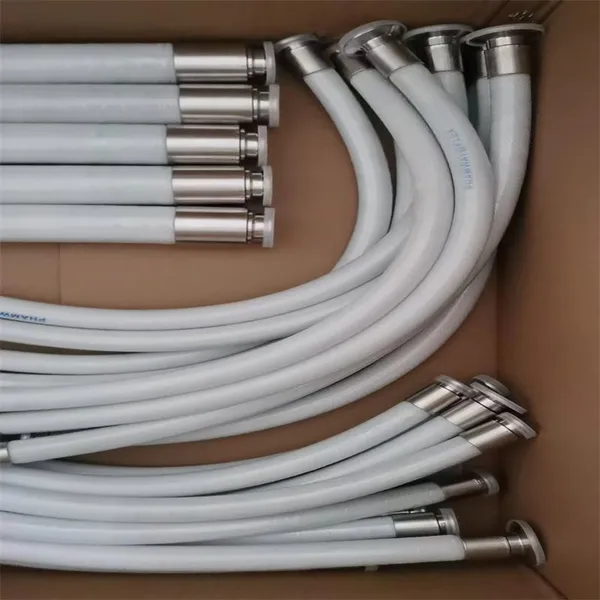

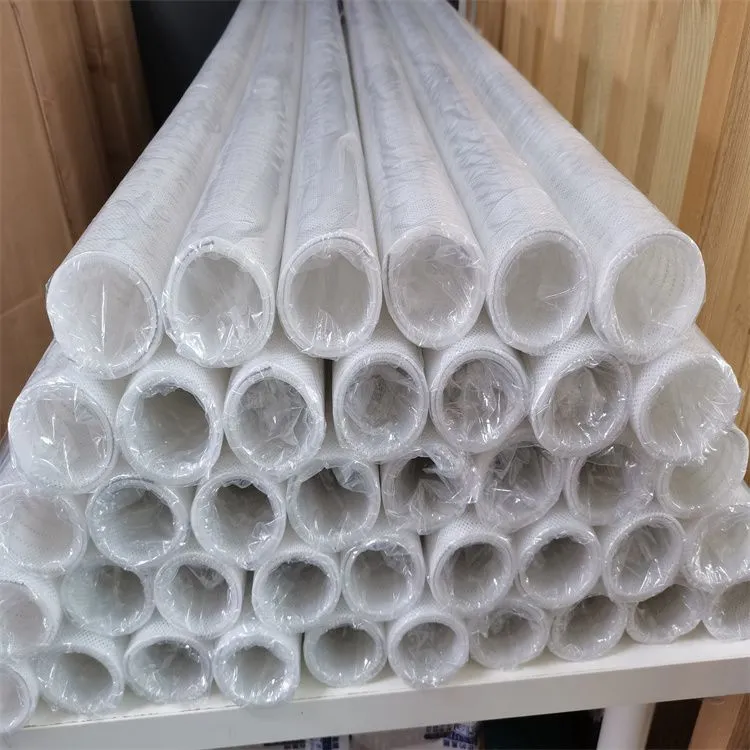

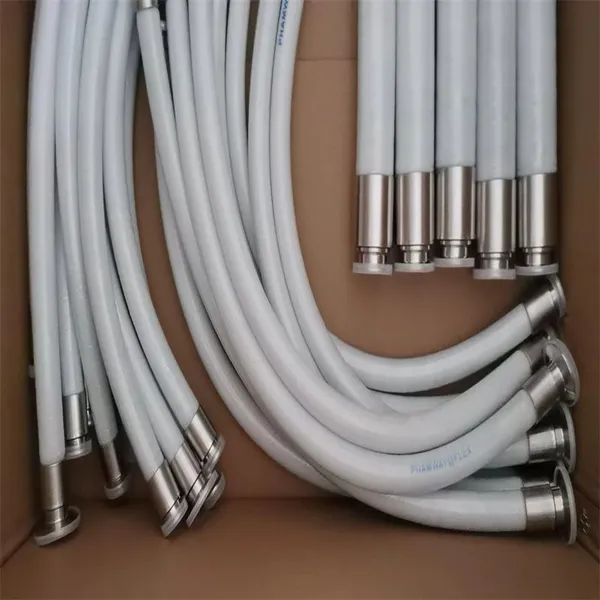

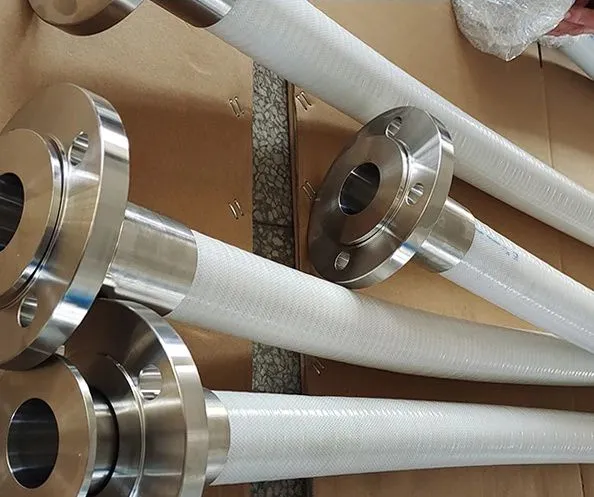

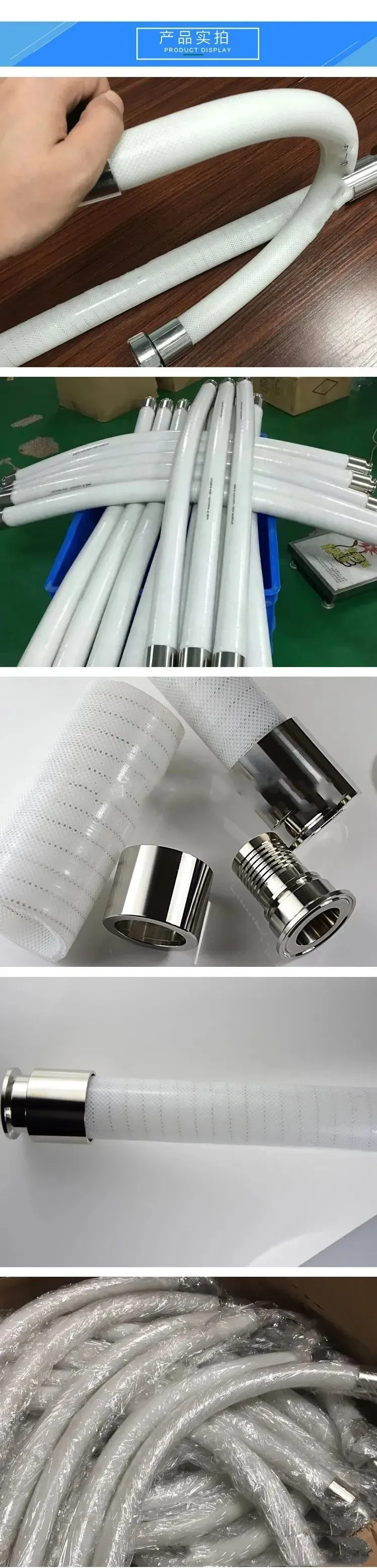

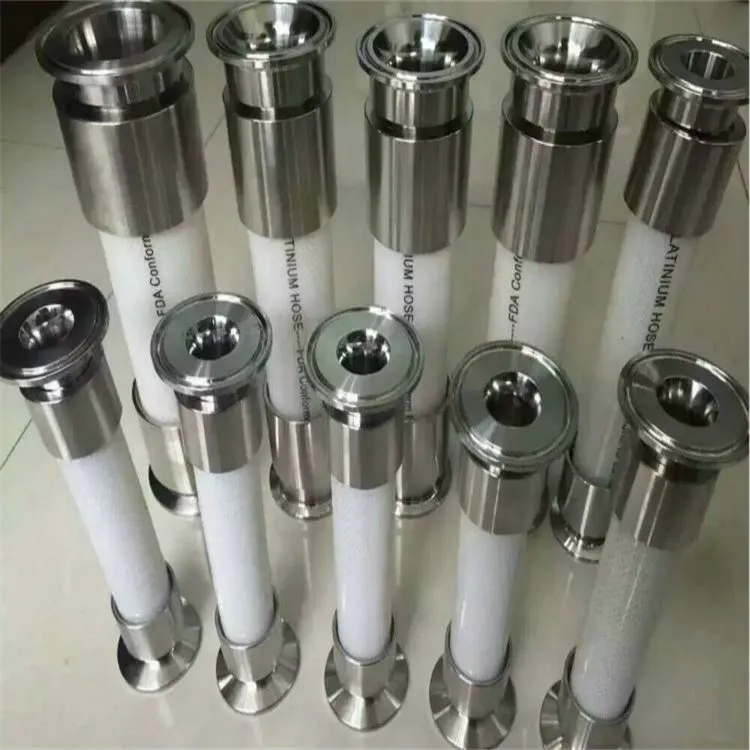

Platinum Vulcanized 4-layer Mesh Silicone Tube
Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc
Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Length: Standard length is 4 or 6 meters.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
| CORD | ID | OD | W.P | B.P | |
| in. | mm | mm | bar | bar | |
| 06 | 1/4" | 6.4 | 16.4 | 11.5 | 34.5 |
| 08 | 5/16" | 7.9 | 18.4 | 10.5 | 31.5 |
| 10 | 3/8" | 9.5 | 20.4 | 9.5 | 28.5 |
| 13 | 1/2" | 12.7 | 23.4 | 8.5 | 25.5 |
| 16 | 5/8" | 15.9 | 26.4 | 8 | 24 |
| 19 | 3/4" | 19 | 29.4 | 7.5 | 22.5 |
| 25 | 1" | 25.4 | 35.4 | 6.5 | 19.5 |
| 32 | 1-1/4" | 32 | 43 | 5.5 | 16.5 |
| 38 | 1-1/2" | 38 | 49 | 5 | 15 |
| 45 | 1-3/4" | 45 | 56 | 4.5 | 13.5 |
| 51 | 2" | 50.8 | 62 | 4 | 12 |
| 64 | 2-1/2" | 63.5 | 75 | 3.5 | 10.5 |
| 76 | 3" | 76.2 | 88 | 2.5 | 7.5 |
| 89 | 3-1/2" | 89 | 101 | 2 | 6 |
| 102 | 4" | 102 | 114 | 1.7 | 5.1 |
