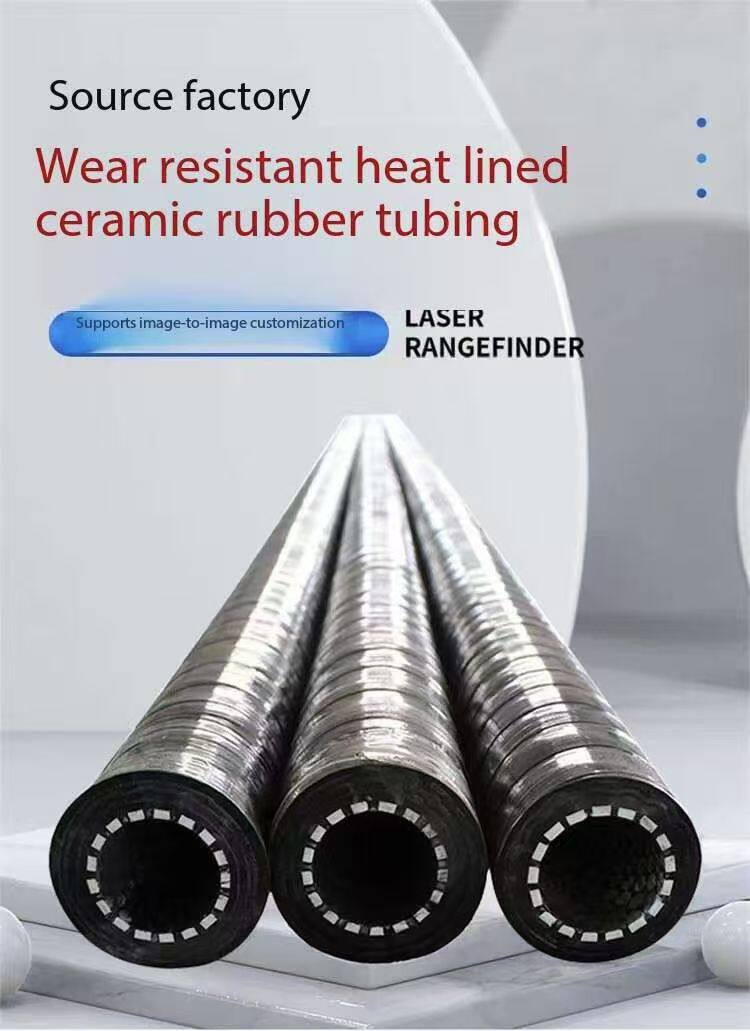

Lined Ceramic Wear-resistant Hose Ceramic Hose Coal Injection Hose

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, NR/SBR/Ceramic	Color	Black
Model	Wear Resistance Hose	Product name	Ceramic rubber hose
Application	carry the water or air, air tools, water	Cover	abrasion and aging resistant synthetic r
REinforcement	High tensile textile or tire cord with s	Working pressure	10bar, 15bar, 20bar
Transport Package	Safe Carton with Pallet	Specification	1 ''-20''
Trademark	Biaohui	Origin	Chian

Product Description

Mine slurry treatment Pipe Wear Resistant Rubber Ceramic Hose

Material: Alumina Ceramic
Color: white
Al2O3: ≥92%/95%/95%/ZTA
Mohs hardness: 9
HV hardness: 980/1040/1100/1250MPa
Bending strength: 260/280/320/350MPa
Compressive strength: 1150/1200/1250/1300MPa
Jet impingement abrasion:<0.47/0.42/0.28/0.1cm3
character: impact resistant ceramic

Hose Structure:
Inner rubber layer: NR + Ceramic sheet
Reinforcement: high-strength synthetic cord
Outer rubber layer: NR / SBR / BR
Working temperature : -20℃ to +100℃

Working principle:
High-quality wear-resistant ceramics are vulcanized inside the hose using an advanced vulcanization process. Multi-layer high-strength cords ensure that the pipeline has good compression resistance. It is not only very abrasion resistant, but also retains the soft characteristics of rubber tubes, and is generally used to isolate mechanical vibration or connect non-fixed equipment

Application:
Widely used in thermal power plants, cement plants, ore dressing plants, anti-corrosion chemicals, coal powder and slurry conveying systems, and also used in port and river dredging sand suction vessels, concrete pump trucks, etc.

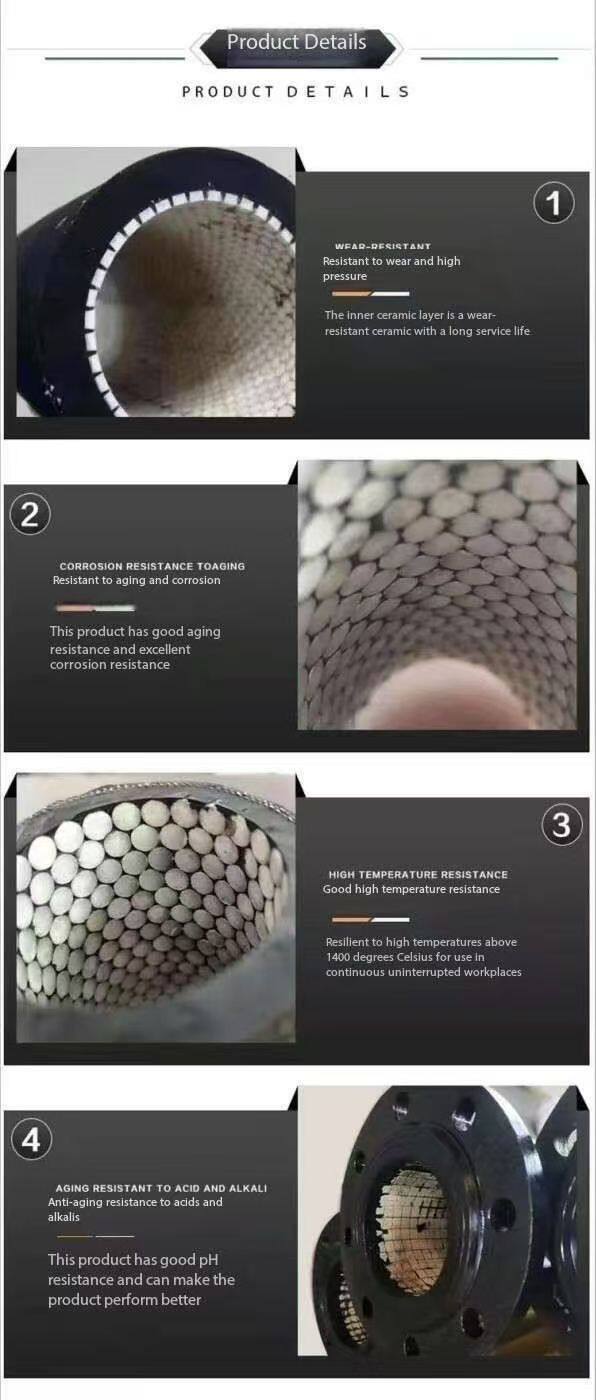

Advantage:

1. Wear resistance
The wear resistance of abrasion-resistant ceramic rubber hoses is more than 10 times that of ordinary steel pipes, and 20 times that of ordinary rubber pipes;

2. Corrosion resistance
Ceramic and high-quality anti-corrosion rubber can resist corrosion under harsh conditions;

3. Low running resistance
Lining ceramic is uniform, dense and smooth, which can reduce pressure loss and prevent the formation of eddy currents;

4. Impact resistance
The impact force on the ceramic is instantly buffered and absorbed by the rubber, so the wear-resistant ceramic rubber hose can withstand larger particle impacts;

5. Light weight
Weighing only 30% of steel pipes;

6. Flexible and flexible
The design and precise arrangement of the cylindrical ceramics in the rubber make the pipes have good flexibility, and the large-angle bending will not affect the ceramics;

7. Easy and fast installation

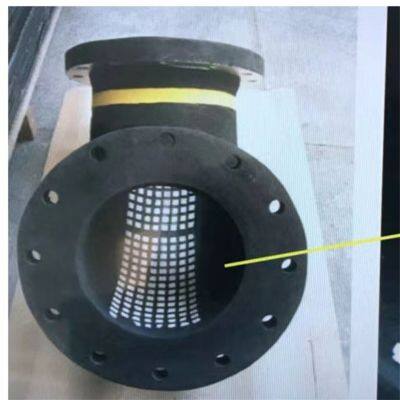

Provide a variety of connection methods such as fixed flanges, movable flanges, threads, and quick connectors.

SIZE		OD	WP		BP		Weight	Length
mm	inch	mm	psi	bar	psi	bar	kg/m	m
25	1"	47	150	10	450	30	1.9	20
32	1 1/4"	55	150	10	450	30	2.5	20
38	1 1/2"	62	150	10	450	30	3	20
51	2"	78	150	10	450	30	4.4	20
64	2 1/2"	91	150	10	450	30	5.3	20
76	3	106	150	10	450	30	6.7	20
102	4"	133	150	10	450	30	9.2	12
152	6"	186	150	10	450	30	12.9	12
200	8"	236	150	10	450	30	17.6	12
