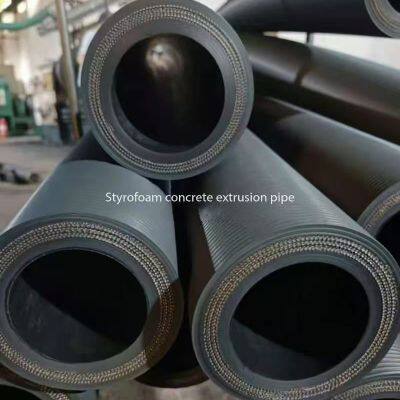

Help CenterPeristaltic Squeeze Extruded Pump Rubber Hose for Cement Mortar Conveyor
Related Products
-
Concrete Cement Extrusion Pump Hose for Peristaltic Pump HoseNegotiableMOQ: 1 Piece -
Concrete Pump Hose, Extruded Mortar Pump Extruded Rubber HoseNegotiableMOQ: 1 Piece
-
Rubber Extrusion Hose for Peristaltic Pump Used for Pumping MudNegotiableMOQ: 1 Piece
-
Squeezing Hose Squeezing Pump Concrete Pump Squeezing HoseNegotiableMOQ: 1 Piece
-
Concrete and Mud Squeezing Pump Tube Peristaltic Pump Hose Used for the Shell of Concrete and MudNegotiableMOQ: 1 Piece

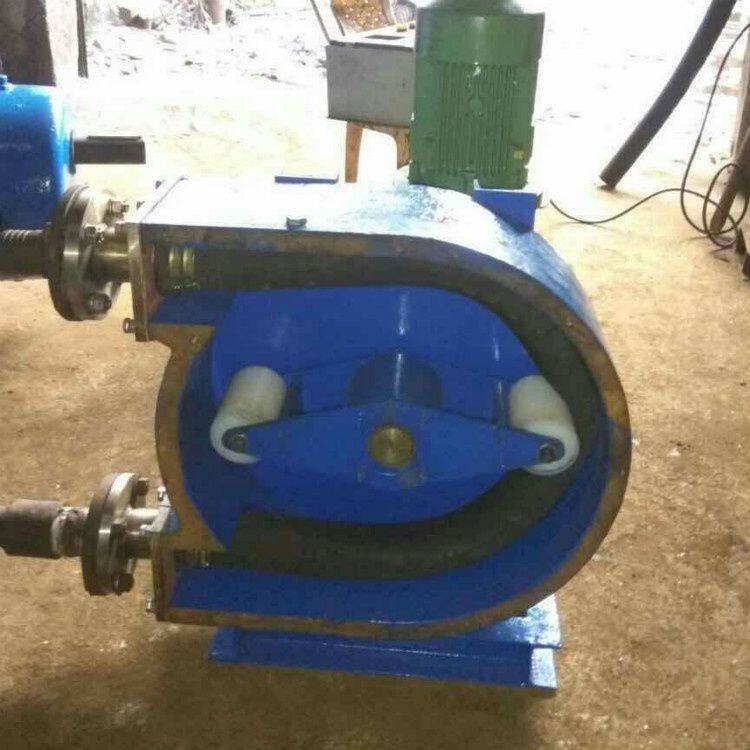

Peristaltic Pump replacement Hose is the par in a peristaltic pump. There the rotor with a number of rollers or shoes compresses the tubing and forces liquid to move. It is made from extremely flexible rubber (natural rubber, NBR, CSM, EPDM, silicone and others). While it resists compression, friction and chemical. They can be textile reinforced.
Tube: Black and smooth rubber compound
Reinforcement: Multiply high tensile textle cord
Cover: Black synthetic rubber; Wrapped
The lowest possible friction between the hose and roller
Temperature:-40ºC to +100ºC
| Model | Inner diameter of hose(mm) | Outer diameter of hose(mm) | Length of hose(mm) | Material of hose |
| 10 | 10 | 26 | 480 | |
| 20 | 20 | 42 | 720 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 25 | 25 | 49 | 900 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 32 | 32 | 66 | 1080 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 40 | 40 | 66 | 1240 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 50 | 50 | 84 | 1595 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 65 | 65 | 100 | 1840 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 75 | 75 | 116 | 1870 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 90 | 90 | 135 | 2970 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 100 | 100 | 145 | 3230 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
| 125 | 125 | 176 | 4075 | NR/NBR/EPDM/CSM/F-NR/F-NBR |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
contact information:
Company Name: Hebei Biaohui Rubber Products Co., Ltd
Address: Zhanggehou Rubber and Plastic Base, Jing County, Hebei Province
Telehone: +86 15075803959
E-mail: info@biaohuihose.com
WhatsApp：+86 15075803959
WeChat ： +8615075803959
