Industrial Ceramic Hose / Alumina Ceramic Lined Rubber Hose for Abrasive Materials Transfer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, NR/SBR/Ceramic
Model:
Wear Resistance Hose
Product name:
Ceramic rubber hose
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Black Wear-Resistant and Heat-Resistant Ceramic Rubber Lining Mortar Hose Synthetic Rubber Water Application Suction HoseNegotiableMOQ: 1 Piece -
Manufacturers Supply Alumina Lined Ceramic Wear-resistant Pipe Soft Bendable Ceramic Hose Coal Injection PipeNegotiableMOQ: 1 Piece
-
Alumina Ceramic Tube High Hardness Insulation Ceramic Lined Rubber HoseNegotiableMOQ: 1 Piece
-
Peristaltic Pump HoseNegotiableMOQ: 1 Piece
-
Concrete Cement Extrusion Pump Hose for Peristaltic Pump HoseNegotiableMOQ: 1 Piece
Material
Other, NR/SBR/Ceramic
Model
Wear Resistance Hose
Product name
Ceramic rubber hose
Application
carry the water or air, air tools, water
Cover
abrasion and aging resistant synthetic r
REinforcement
High tensile textile or tire cord with s
Working pressure
10bar, 15bar, 20bar
Transport Package
Safe Carton with Pallet
Specification
1 ''-20''
Trademark
Biaohui
Origin
Chian
Industrial Ceramic Hose / Alumina Ceramic Lined Rubber Hose for Abrasive Materials Transfer
Material: Alumina Ceramic
Color: white
Al2O3: ≥92%/95%/95%/ZTA
Mohs hardness: 9
HV hardness: 980/1040/1100/1250MPa
Bending strength: 260/280/320/350MPa
Compressive strength: 1150/1200/1250/1300MPa
Jet impingement abrasion:<0.47/0.42/0.28/0.1cm3
character: impact resistant ceramic
2. Corrosion resistance
Ceramic and high-quality anti-corrosion rubber can resist corrosion under harsh conditions;
3. Low running resistance
Lining ceramic is uniform, dense and smooth, which can reduce pressure loss and prevent the formation of eddy currents;
4. Impact resistance
The impact force on the ceramic is instantly buffered and absorbed by the rubber, so the wear-resistant ceramic rubber hose can withstand larger particle impacts;
5. Light weight
Weighing only 30% of steel pipes;
6. Flexible and flexible
The design and precise arrangement of the cylindrical ceramics in the rubber make the pipes have good flexibility, and the large-angle bending will not affect the ceramics;
7. Easy and fast installation
Provide a variety of connection methods such as fixed flanges, movable flanges, threads, and quick connectors.
Color: white
Al2O3: ≥92%/95%/95%/ZTA
Mohs hardness: 9
HV hardness: 980/1040/1100/1250MPa
Bending strength: 260/280/320/350MPa
Compressive strength: 1150/1200/1250/1300MPa
Jet impingement abrasion:<0.47/0.42/0.28/0.1cm3
character: impact resistant ceramic

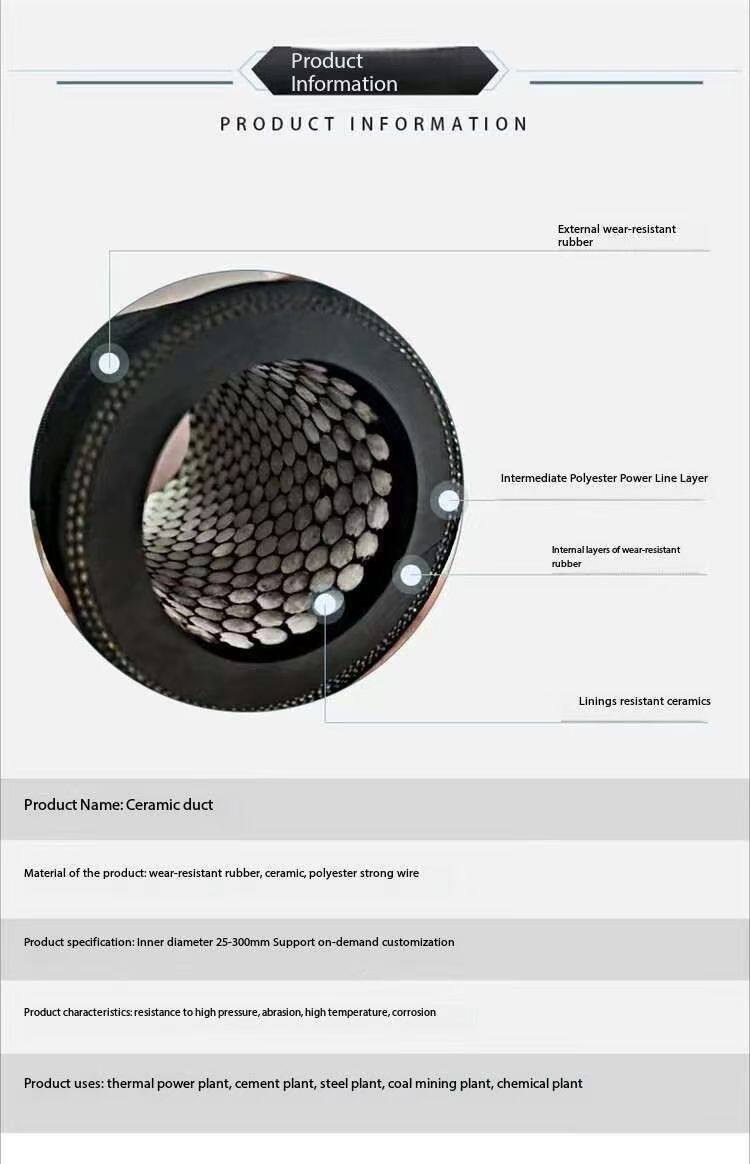

Hose Structure:
Inner rubber layer: NR + Ceramic sheet
Reinforcement: high-strength synthetic cord
Outer rubber layer: NR / SBR / BR
Working temperature : -20℃ to +100℃
Working principle:
High-quality wear-resistant ceramics are vulcanized inside the hose using an advanced vulcanization process. Multi-layer high-strength cords ensure that the pipeline has good compression resistance. It is not only very abrasion resistant, but also retains the soft characteristics of rubber tubes, and is generally used to isolate mechanical vibration or connect non-fixed equipment
Inner rubber layer: NR + Ceramic sheet
Reinforcement: high-strength synthetic cord
Outer rubber layer: NR / SBR / BR
Working temperature : -20℃ to +100℃
Working principle:
High-quality wear-resistant ceramics are vulcanized inside the hose using an advanced vulcanization process. Multi-layer high-strength cords ensure that the pipeline has good compression resistance. It is not only very abrasion resistant, but also retains the soft characteristics of rubber tubes, and is generally used to isolate mechanical vibration or connect non-fixed equipment
Application:
Widely used in thermal power plants, cement plants, ore dressing plants, anti-corrosion chemicals, coal powder and slurry conveying systems, and also used in port and river dredging sand suction vessels, concrete pump trucks, etc.
Advantage:
Widely used in thermal power plants, cement plants, ore dressing plants, anti-corrosion chemicals, coal powder and slurry conveying systems, and also used in port and river dredging sand suction vessels, concrete pump trucks, etc.
Advantage:
1. Wear resistance
The wear resistance of abrasion-resistant ceramic rubber hoses is more than 10 times that of ordinary steel pipes, and 20 times that of ordinary rubber pipes;
The wear resistance of abrasion-resistant ceramic rubber hoses is more than 10 times that of ordinary steel pipes, and 20 times that of ordinary rubber pipes;
2. Corrosion resistance
Ceramic and high-quality anti-corrosion rubber can resist corrosion under harsh conditions;
3. Low running resistance
Lining ceramic is uniform, dense and smooth, which can reduce pressure loss and prevent the formation of eddy currents;
4. Impact resistance
The impact force on the ceramic is instantly buffered and absorbed by the rubber, so the wear-resistant ceramic rubber hose can withstand larger particle impacts;
5. Light weight
Weighing only 30% of steel pipes;
6. Flexible and flexible
The design and precise arrangement of the cylindrical ceramics in the rubber make the pipes have good flexibility, and the large-angle bending will not affect the ceramics;
7. Easy and fast installation
Provide a variety of connection methods such as fixed flanges, movable flanges, threads, and quick connectors.
