Home > Products > industry hose > Multi Purpose Chemical Resistant Composite Hose SGP, Chemical Composite Hose
Multi Purpose Chemical Resistant Composite Hose SGP, Chemical Composite Hose
Negotiable
/ Piece
1 Piece(Min. Order)
- Tianjin shanghai qingdao shenzhen
- T/T
- 3 days
You May Like
-
Bunkering Bunker Fuel Oil Vapor Recovery Composite Hose
-
Vapor Recovery Ggp Gge Oil Vapor Recovery Chemical Flexible Composite Hose
-
Composite Suction Tanker Unloading Bunkering Hose
-
Tanker Unloading Oil-Gas Composite Bio-Fuel Suction Hose
-
Flexible Oil Suction Composite Hose for All Grades of Biodiesel
-
Biofuel and Biodiesel Composite Hose
Product Details
| Material | PP | Kind | Other, Composite Hose | |
| Model NO. | 1“-8“ | Color | Red, Green, Blue, Black and So on | |
| Model No | Composite Hose | Thickness | 5-15mm | |
| Length | 1-60meter Per PCS | Features | Flexible, Anti-UV, Anti-Age, Anti-Oil | |
| Temperature | -5ºC+ to 80ºC | Working Pressure | 10-16bar | |
| Burst Pressure | 30-48bar | HS Code | 40093100 | |
| Transport Package | PVC Seaworhty Film/ Woven Belts | Origin | China |
Product Description
Composite Hose
Multi Purpose Chemical Resistant Composite Hose SGP, Chemical Composite Hose
Construction:
Internal helix: Stainless steel
External helix: galvanized steel
Inner tube: polypropylene film
Temp. Range: -30°C to + 80°C

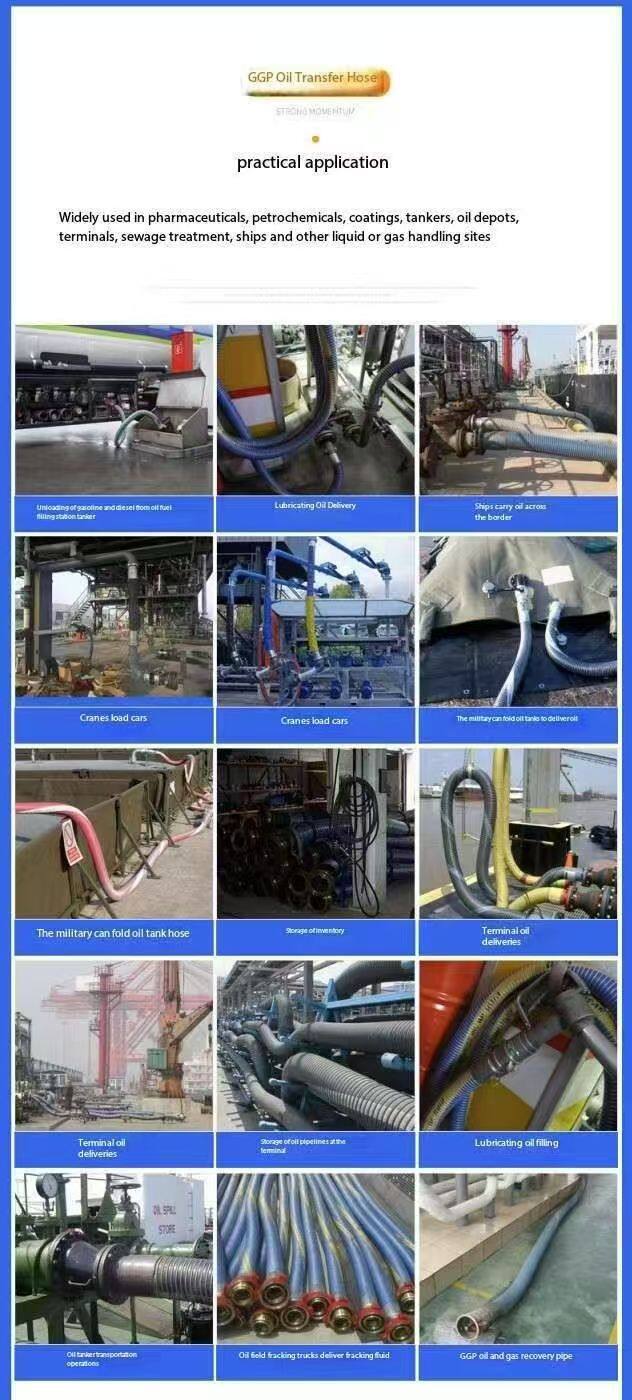

Application: This anti-static composite hose is designed for suction and discharge use on plant or road/rail tankers with a wide range of chemicals. The hose construction is exceptionally lightweight and flexible for ease of handling yet remains robust, hard-wearing and cost effective. Electrically resistant to less than 10 ohms.
Standard/Approval: BS EN13765：2003 and BS5842：1980（1996）
Length: 3/4” up to 4” 40m, 5” up to 8” 20m
Code | ID | Bend Radius | Work Pressure | Burst Pressure | length | |
in. | mm | mm | bar | bar | m | |
SGP025 | 1" | 25 | 100 | 17 | 51 | 40 |
SGP038 | 1-1/2" | 38 | 112 | 17 | 51 | 40 |
SGP051 | 2" | 51 | 150 | 17 | 51 | 40 |
SGP065 | 2-1/2" | 65 | 190 | 17 | 51 | 40 |
SGP076 | 3" | 76 | 225 | 17 | 51 | 40 |
SGP102 | 4" | 102 | 350 | 17 | 51 | 40 |
SGP152 | 6" | 152 | 600 | 17 | 51 | 20 |
SGP203 | 8" | 203 | 850 | 17 | 51 | 20 |
