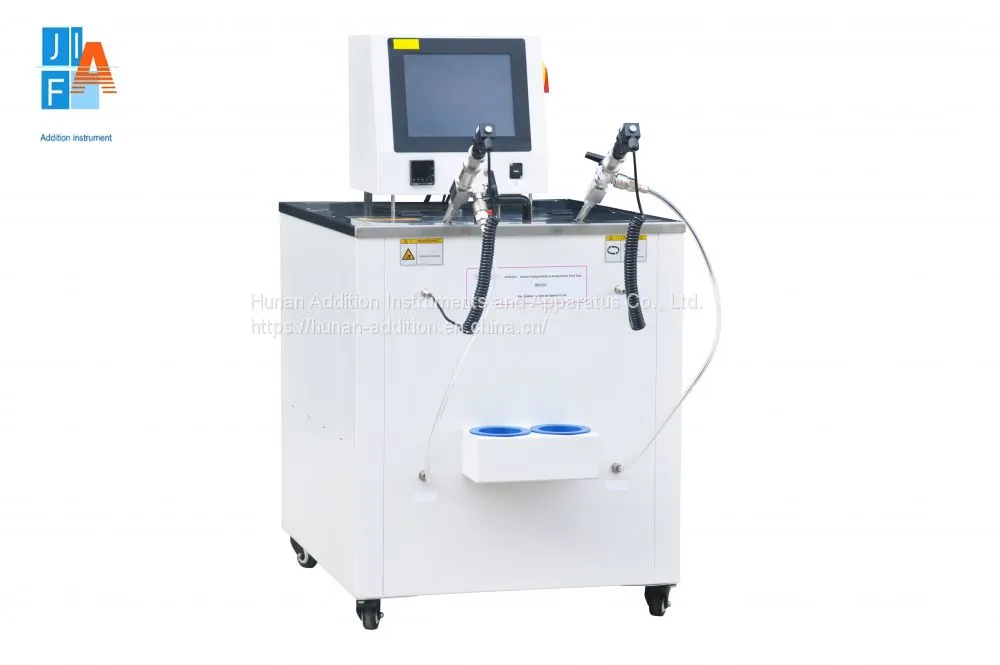

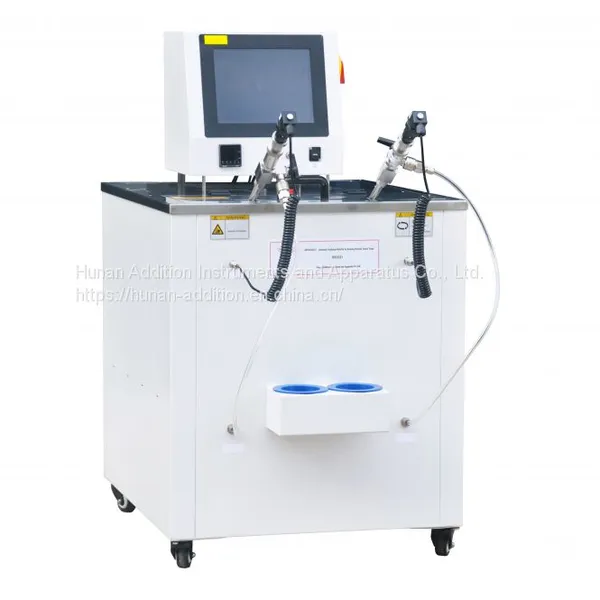

ASTM D2272 Automatic Lubricant Oxidation Stability Tester(Metal Bath)

Oxidation Stability Tester(Metal bath)    ASTM D2272                                                                                                                                                                  Product Model: JF0193

Product Introduction

It is composed of microcomputer, control detection system, control system, oxygen bomb support, gas circuit and other parts. Computer control is the core of the whole system. The gas circuit is composed of oxygen pipeline quick connector, oxygen charging/deoxygenating solenoid valve, left and right oxygen charging and discharging manual control valve, left and right oxygen bomb (including pressure transmitter) and its quick connector pipeline. Equipped with an oxygen bomb holder, the oxygen bomb can be easily loaded and unloaded on the oxygen bomb holder.

Technical Parameter

1. Applicable standards: ASTM D2112  ASTM D2272  SH/T0193

2. Instrument form: double bomb operation, vertical

3. Temperature control temperature: adjustable from room temperature to 200°C, temperature control accuracy 0.1°C

4. Display: large LCD screen

5. Display contents: ① Temperature curve of the liquid in the bath;

② Pressure curve of the sample;

6. Pressure detection accuracy: ±2‰

7. Motor speed: 100±3r/min

8. Working power supply: AC220,240V 50,60HZ

9. Power of the whole machine: 1500W

10. Instrument size: 700×600×1040mm

11. Net weight: 46KG

Main Feature

1. Dry heating, no need to use silicone oil medium heating, direct air heating mode;

2. The instrument is controlled by a microcomputer, which can carry out two groups of tests at the same time. The whole test process and the printing of the measurement data are automatically carried out.

3. Large-screen English interface, hyperbolic screen display (including temperature control status, pressure curve, test data, etc.), automatic drawing.
