Aircraft battery
ROAD SHENG POWER SUPPLY （BEIJING）CO., LTD
Germany SILVERFIR - Akkumulatorenwerk GmbH
ROAD SHENG POWER SUPPLY （BEIJING）CO., LTD
WANG ZE LONG
QQ：1515974895
Tel: +86 186 3096 8614（WeChat）
Email：wangzelong@rvzotbattery.com.cn
URL：
Drawing number 33490279600
Connector drawing number 3089946080
Battery electrode type Nickel-cadmium
Number of cans in the battery 20 pieces
Can drawing number 3743273200
Nominal voltage 24 volts
Capacity 27 amps/hour
👉Maximum load current at half voltage 15 seconds Ipr(A) at 25°C 1125 amps(A) (±5 A) this 👈
Length 478mm (±5mm)
Width 168mm (±5mm)
Height 237mm (±5mm)
👉Weight 29.3kg (±0.3kg) this 👈
Ventura AERO provides complete aircraft and airport ground support equipment(GSE)solutions to corporate,FBO,MRO,military,airline and general aviation customers worldwide.Ventura AERO manufactures and distributes industrial-grade new,used and refurbished aircraft GSE.We offer excellent pricing and short lead times on an entire range of high-quality GSE.We supply an unprecedented variety of service capabilities that are unmatched in the industry,allowing us to customize complete GSE packages.
Our extensive and diverse product lines set us apart,making Ventura AERO the preferred GSE supplier for over 16,000 organizations globally.Combine this with our team of professionally certified mechanics and engineers,revered customer service and an online parts store,and you have the best aircraft GSE supplier in the business.
Ventura AERO
GSE Manufacturer&Global Supplier
Type F20/27H1C-M1
Drawing number 33490279600
Connector drawing number 3089946080
Battery electrodes type Nickel-cadmium
Number of cans in the battery 20 pieces
Can drawing number 3743273200
Nominal voltage 24 volts
Capacity 27 amp/hour
Length 478mm (±5mm)
Width 168mm (±5mm)
Height 237mm (±5mm)
Weight 28.6kg (±0.1kg)
Aviation battery - 4 pieces.
The supplied goods must be manufactured no later than 2024.
A document (letter or "DATASHEET") issued by the manufacturer stating that the offered goods are compatible with MI-8 helicopters.
Batterie20 FP 25 H1C-R have bat-tery container,battery lid and power plug origin in CIS states.
The cell is the basic component of the nickel-cadmium battery(fig.2).The"Safely Plus Power"cell marked wilh"C"is a further developed cell,ensuring even more safety and reliability in flying operations.Optically"Safety Plus Power"cells are indicated by the yel-low and green color of the cell-lid.Cell comprises positive and negative electrodes in sinter-plate design,consisting of separators,electrolyte,cell con-tainer and a vent.
Accumulator components:
1-negative electrode
2-positive electrode
3-separator
4-plate pack
5-negative pole bolt
6-positive pole bolt
7-electrolyte level indicator
8-baffle
9-pole bolt sealing ring
10-cell cover
11-vent sealing ring
12-vent
13-upper pole nut
14-spring washer
15-lower pole nut
16-limiting cap
17-pole bolt sealing ring
18-cell container
GENERAL AVIATION

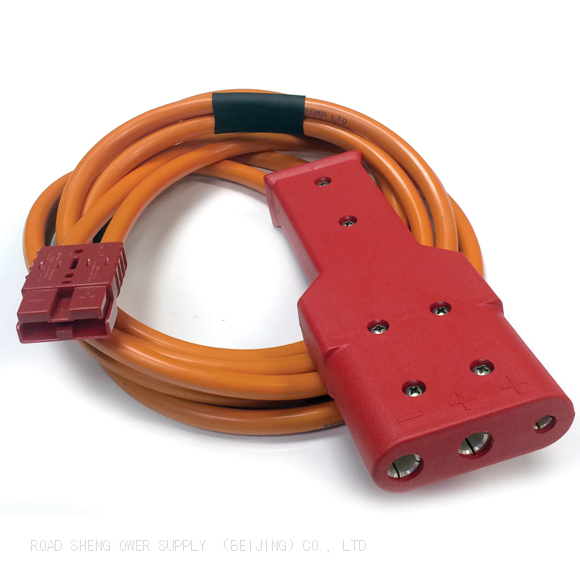

3 PIN NATO AN2551 external power connector for 12V/24V or 28VDC application.
3 PINS NATO AN2551 standard plug,made of strong polycarbonate,registered plug.
Construction screws together in minutes.
Sleeves are silver plated.With solenoid pin.Stainless steel screws.
Corrosion proof and resist to high temperature,voltage and amperage.
Hardness 13800psi,max.recommended cable for‘0’AWG(53 mm2).
Mates with the aircraftplugs AN2552-3A external power receptacle.
Performance and dimensions to ISO 461(BS4G173:1985)and appropriate MOD(Air)and NSN Standards,(0.7 kg)
Cable assemblies to client requirements available.
Recommended wires:25mm2 or 2 AWG.
Glass transition temperature of about 150°C(297°F).
