Product DescriptionThe Ventura range of battery,aircraft start units are the ideal solution for starting the majority of DC aircraft.They are designed to start aircraft from the very smallest up to the largest business jets.There are a range of voltages(12V,24V and 28V)and power capacities available.Here is a brief outline of what you should be considering.It is important to choose not only the right start power unit for your aircraft,but also the right unit for your operation.Some customers only want a unit to start in emergencies and some will be using it multiple times a day.Although Ventura units are designed to start aircraft,some customers require a small amount of continuous power as well.Please discuss your requirements with our sales team;they have the experience to recommend the correct unit for your needs.For some small aircraft the requirement is for a 12V unit.We manufacture 12V units in 3 sizes,although any aircraft that needs 12V only needs to use our smallest RB25A 12V unit,the larger units are only really for multiple starts.
As standard,most DC powered aircraft only need 24V DC to start.The ground power port normally indicates 28V DC,but this is for the continuous power requirements.The onboard battery is 24V therefore you only need 24V to start.We have a large number of 24V start power units available ranging from small hand portable units to large trolley cart units.If you are unsure please contact one of our sales team and they will be more than happy to help you.We also manufacture a number of 28V DC aircraft start units too.In most cases this is only to provide customers with peace of mind as most aircraft will start from 24V DC.Although there are a few aircraft that are volt sensitive and need a 28V DC start system.
Products/Ground Power Units/Start Power Units/28V Start Power Units/RB60A 28v Start Power Unit
Max amps:1500(nom.short circuit current)2300(Max.short circuit current)Capacity:27 amps hrs 10 hour rateMax
Max amps: 1500 (nom. short circuit current) 2300 (Max. short circuit current)
Capacity: 27 amps hrs @ 10 hour rate
Max voltage: 30V DC
Size: L 17.5″ x W 4.1″ x H 14.9″ (445 mm x 105 mm x 380 mm)
Weight: 27 kg (59.5 lbs)
Operating Temp: -40°C – +60°C
Case: Stainless steel
Voltage indication: Digital to IP65
Auxiliary protection: Circuit breaker 40A
Auxiliary input: 29V DC

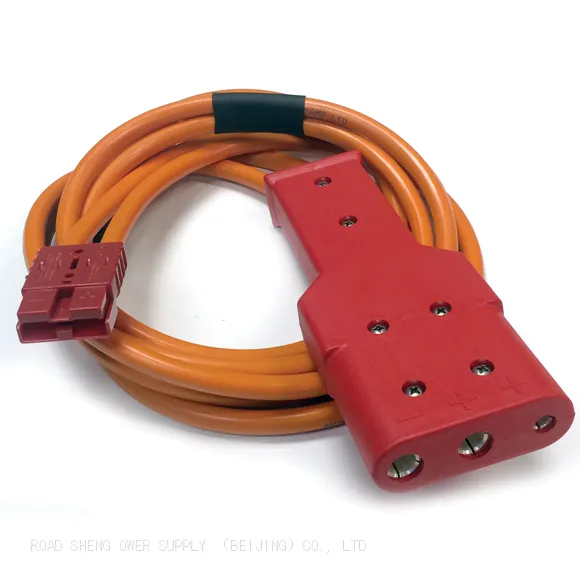

Aircraft cable: 78.7″ (2 m) heavy duty
Charger: 8 amp universal AC input. Charging time less than two hours from 50%
Protection: Reverse polarity warning
The design utilizes the latest in military aerospace technology to achieve a high power to weight ratio.Maintenance free and are cleared as non hazardous cargo for carriage in aircraft.The standard power pack system includes a unit charger and an output cable.
Features;
Totally weather protected.
Air transportable,'Non Hazardous'
Maintenance free.
Tough and compact.
No memory effect.
Works in any orientation.
Fast Charge.
No Cycling.
Leak Proof.
Cells Replaceable on condition.
Starts piston,turbine and turbo prop aircraft and helicopters.
External charger for prolonged unit life.
Starts Cars and Vans
Aux.power units.
Lightweight portable start power at remote locations.
Technical;
Capacity.27 Amp Hrs 10 Hr Rate.
Max Voltage.30v DC.
Case.Stainless Steel.
Weight:27kg
Ventura RB60A 28v Aircraft Starter Power Pack
Code:RB60A
The Redbox RB60A 28v Power Pack is an all weather start unit,able to operate in extremes of temperature.Suitable for many types of light aircraft and rotorcraft,and helicopters in the field or in remote locations.
