Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Lead-Acid Batteries
Usage:
UPS
Rechargeable:
Chargeable
Contact Supplier Request Quote Chat Now
Road Sheng Power Supply（beijing）co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Lead-Acid Batteries
Usage UPS
Rechargeable Chargeable
Electrolyte Acid
Nominal Voltage 12V
Transport Package WOODEN CASE
Specification 12V200Ah
Trademark Ventura
Origin CHINA

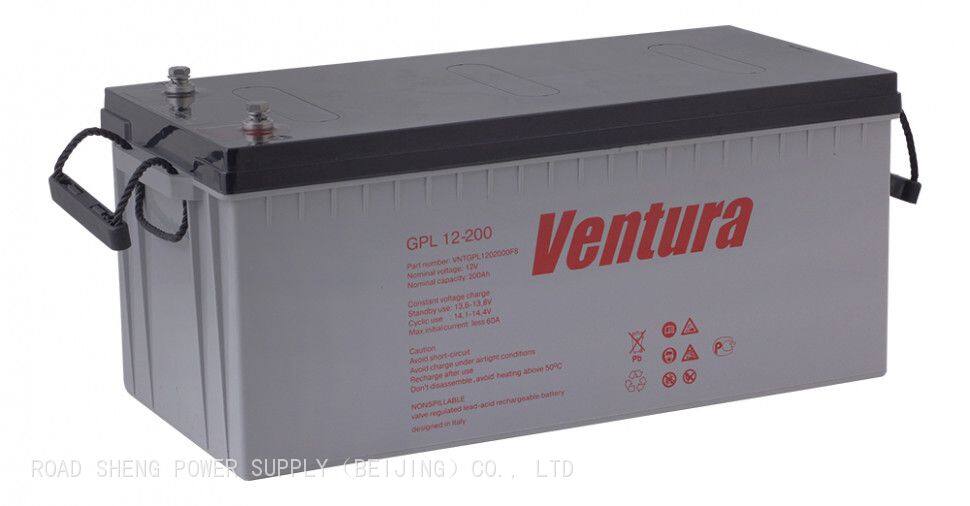

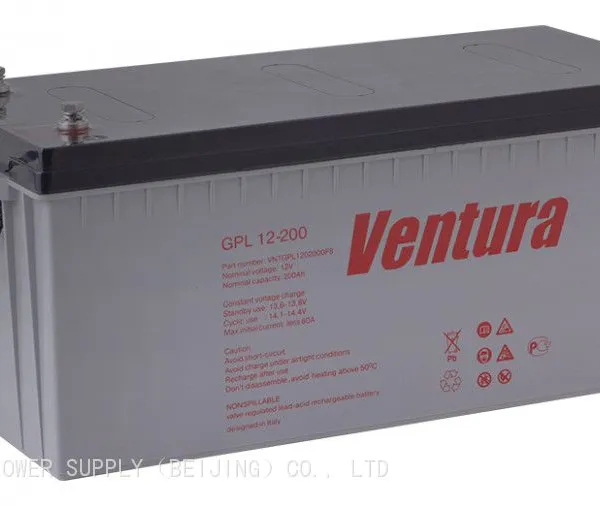

微信图片_20250625133140　　Accumulator battery Ventura GPL 12-200


　　Lead-acid batteries Ventura GPL Series manufactured by technology with absorbed electrolyte(AGM).The batteries of this series used a more advanced design of arrays of highly pure lead alloy that increases the service life and improves the discharge characteristics


　　Battery Ventura GPL series is recommended for use in the buffer,and in a cyclic mode of operation.-in a variety of portable devices,as well as in stationary systems with redundant power


　　The service life of 10 years


　　specifications:


　　voltage,V-12


　　.Volume,A/h-200


　　Dimensions,mm LxWxH-522h238x238


　　Weight kg-62


　　applications:


　　backup power sources;


　　uninterruptible power supply;


　　Cash registers;


　　Medical equipment;


　　Portable devices;


　　Other instrumentation field


　　Features and benefits:


　　A fully.sealed construction,the electrolyte can not leak;


　　internal gas recombination system,no need for topping up water;


　　No restrictions on lane evozku air,rail or road;


　　Compliance with UL safety requirements;


　　Operation in any position;


　　doped calcium lead plates provide high energy density;


　　Low self-discharge


　　<.br/>Standards and certifications:


　　compliance Certificate(State certification system UkrSEPRO);


　　Conclusion of the state sanitary and epidemiological expertise.


　　Life:


　　In the buffer mode 10 years.


　　The cyclic operation:1200 cycles at 30%depth of discharge.


　　Temperature settings:


　　Storage from-35°C to+60°C


　　charge from-10°C to+60°C


　　discharge from-20°C to+60°C


　　charge method:


　　constant voltage charge(25C)


　　cyclic mode:14.5-14.9


　　buffer mode:13.6-13.8

1759

　　Ventura GPL


　　СерияGPL–расширеннаялинейкауниверсальныхнеобслуживаемыхстационарныхаккумуляторныхбатарейобщегоназначениясувеличеннымсрокомслужбыиноминальнымнапряжением12В,емкостьюдо250А·ч,изготовленныхпотехнологииAGM.


　　СМОТРЕТЬВ360


　　Ventura GPL


　　№1УНИВЕРСАЛЬНАЯБАТАРЕЯ


　　АккумуляторыVentura GPLприменяютсявсистемахбесперебойногопитаниялюбыхмощностей,медицине,телекоммуникациях,объектахинформационныхтехнологий,загородныхдомахидр.дляработыврежимепостоянногоподзарядаилициклическомрежиме.


　　Сферыприменения


　　Увеличенныйсрокслужбы


　　Расширенныймодельныйряд


　　Решеткипластинутолщеныивыполненыизсплаванаосновесвинцавысокойстепениочистки,чтообеспечиваетувеличенныйсрокслужбыиповышеннуюкоррозионнуюстойкостьпластин


　　Улучшеннаяпроводимостьисокращенноевремязарядаблагодарядобавкеуглеродавотрицательныепластины(технологияGFC)


　　Вположительныеэлектродывведенаорганическаясубстанциядлядополнительнойзащитыактивноймассыотоплывания(технологияSOI)


　　УдаропрочныйкорпусизABS-пластика


　　Низкийуровеньсаморазрядаобеспечиваетдо12месяцевхранениябезподзаряда


　　Особенности


　　Формаотображения:


　　Таблица


　　Значки


　　Список


　　Тип


　　Номинальное


　　напряжение,В


　　Емкость,А·ч


　　С20до1,75В/эл


　　Длина,мм


　　±3мм


　　Ширина,мм


　　±3мм


　　Высота(свыводами),мм


　　±3мм


　　Масса,кг


　　±3%


　　Типвывода


　　PDF


　　Ventura GPL 12-15


　　Ventura GPL 12-26


　　Ventura GPL 12-33


　　Ventura GPL 12-40


　　Ventura GPL 12-45


　　Ventura GPL 12-55


　　Ventura GPL 12-65


　　Ventura GPL 12-75


　　Ventura GPL 12-80


　　Ventura GPL 12-100


　　Ventura GPL 12-120


　　Ventura GPL 12-150


　　Ventura GPL 12-200


　　Ventura GPL 12-250
