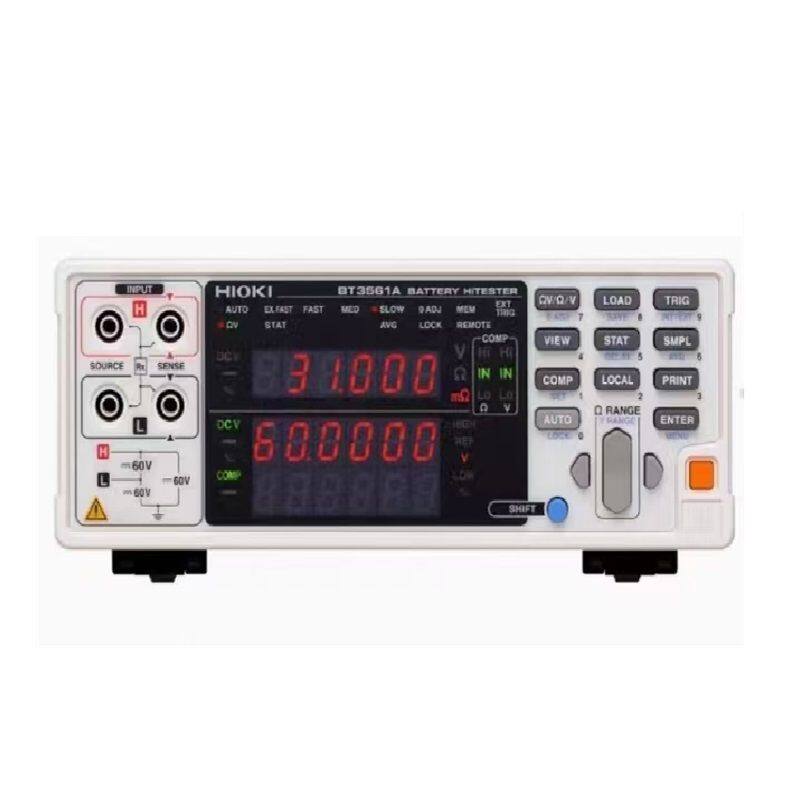

Hioki BT3561A - Battery HiTester Small packs of up to 60 V
Hioki BT3561A
Small cells for power motors, Small packs of up to 60 V
Voltage measurement ranges: 6 V/60 V
Resistance measurement ranges: 30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
Simultaneous measurement of internal resistance and open circuit voltage.
Equipped with LAN
Battery HiTester - Fully automated production line testing of small cells for power motors or small packs of up to 60 V
Battery HiTester Small packs of up to 60 V
Measuring battery performance and safety using internal resistance (AC-IR) and open-circuit voltage (OCV)
Inspect the quality of completed cells, modules, and packs on production lines. Measure internal resistance (AC-IR) and open-circuit voltage (OCV) to check battery quality.
Cells produced at the cell production factory are shipped to the module production factory after undergoing a shipping inspection. Since factors such as vibrations during shipment and even the passage of time can cause defects, batteries undergo an acceptance inspection before being assembled into modules and packs.
Reducing test system development cost and management man-hours

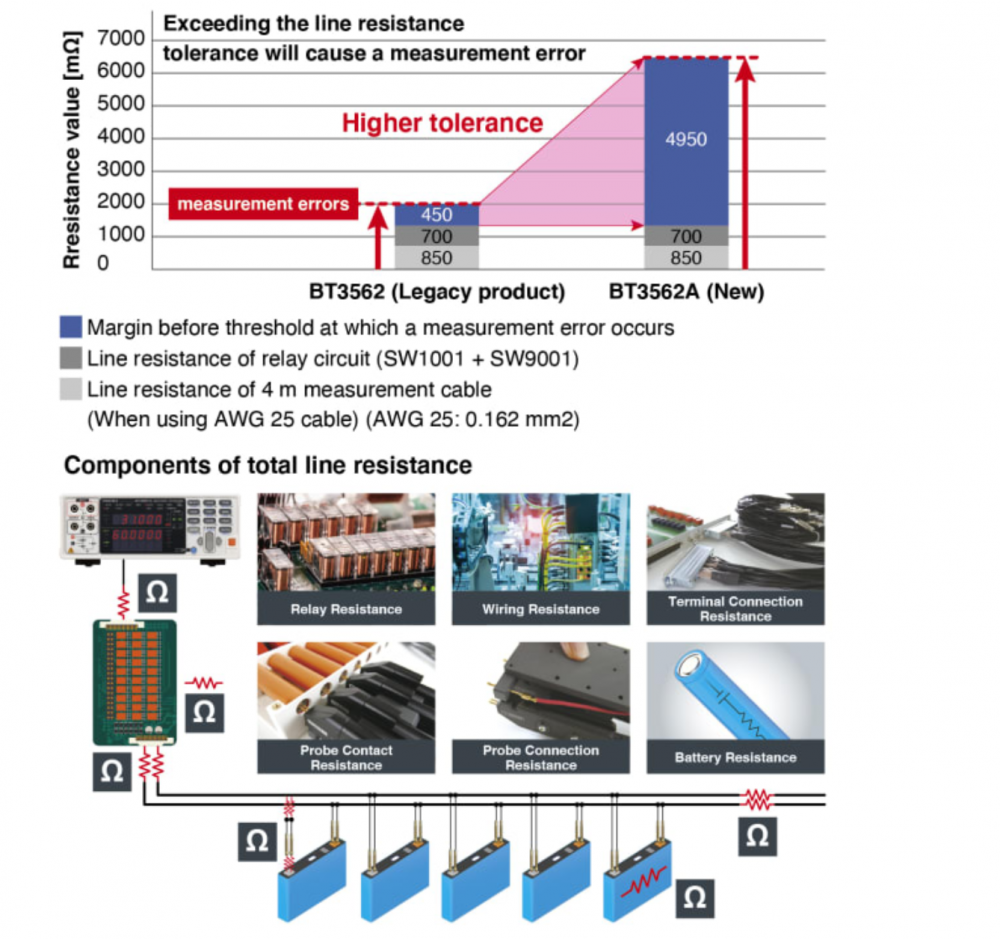

The new BT356xA has dramatically improved tolerances for line resistance compared to previous models. This improvement makes it easy to build test systems with large numbers of channels using relays. Additionally, a longer maintenance cycle for systems in use means fewer maintenance man-hours. Finally, its capability to handle thinner cables than with previous models* makes it easier to route cables.
| Resistance measurement ranges | |
| 30 mΩ Max. display | 31.000 mΩ, resolution: 1 μΩ, measurement current: 100 mA |
| 300 mΩ Max. display | 310.00 mΩ, resolution: 10 μΩ, measurement current: 10 mA |
| 3 Ω Max. display | 3.1000 Ω, resolution: 100 μΩ, measurement current: 1 mA |
| 30 Ω Max. display | 31.000 Ω, resolution: 1 mΩ, measurement current: 100 μA |
| 300 Ω Max. display | 310.00 Ω, resolution: 10 mΩ, measurement current: 10 μA |
| 3 kΩ Max. display | 3.1000 kΩ, resolution: 100 mΩ, measurement current: 10 μA |
| Basic accuracy | ±0.5% rdg ±5 dgt（30 mΩ range or more |
| Measurement frequency | 1 kHz ±0.2 Hz |
| Measurement method | AC four-terminal method |
| Voltage measurement ranges |
|
| Basic accuracy | ±0.01% rdg. ±3 dgt. |
| Response time | 10 ms |
| Sampling period | Ω or V (60 Hz): 4 ms (EX.FAST), 12 ms (FAST), 35 ms (MEDIUM), 150 ms (SLOW) ΩV (60 Hz): 8 ms (EX.FAST), 24 ms (FAST), 70 ms (MEDIUM), 253 ms (SLOW) Ω or V (50 Hz): 4 ms (EX.FAST), 12 ms (FAST), 42 ms (MEDIUM), 157 ms (SLOW) ΩV (50 Hz): 8 ms (EX.FAST), 24 ms (FAST), 84 ms (MEDIUM), 259 ms (SLOW) |
| Functions | Contact check, Zero adjustment (±1000 counts), Pulse measurement, Comparator (Hi/ IN/ Lo), Statistical calculations (Max. 30,000), Delay, Average, Panel saving/loading, Memory storage, LabVIEW® driver |
| Interfaces | LAN (TCP/IP, 10BASE-T/100BASE-TX) RS-232C (Max. 38.4 kbps, Available as printer I/F) EXT I/O (37-pin Handler interface) Analog output (DC 0 V to 3.1 V) |
| Power supply | 100 to 240 V AC, 50 Hz/60 Hz, 35 VA max. |
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
Elevate Your Business with New Energy Lithium Battery Pack Equipment
- Create More Value and Earn More for you !our main products:
1. cylindrical Battery PACK machines
2. Automatic Prismatic&polymer Battery PACK Assembly Line,Any interested in us,please feel free to contact with us
Battery machine factory contact number
Shenzhen AITOP Intelligent Equipment Co., Ltd.
Email :sales(@) /+8618098919495
Product Description

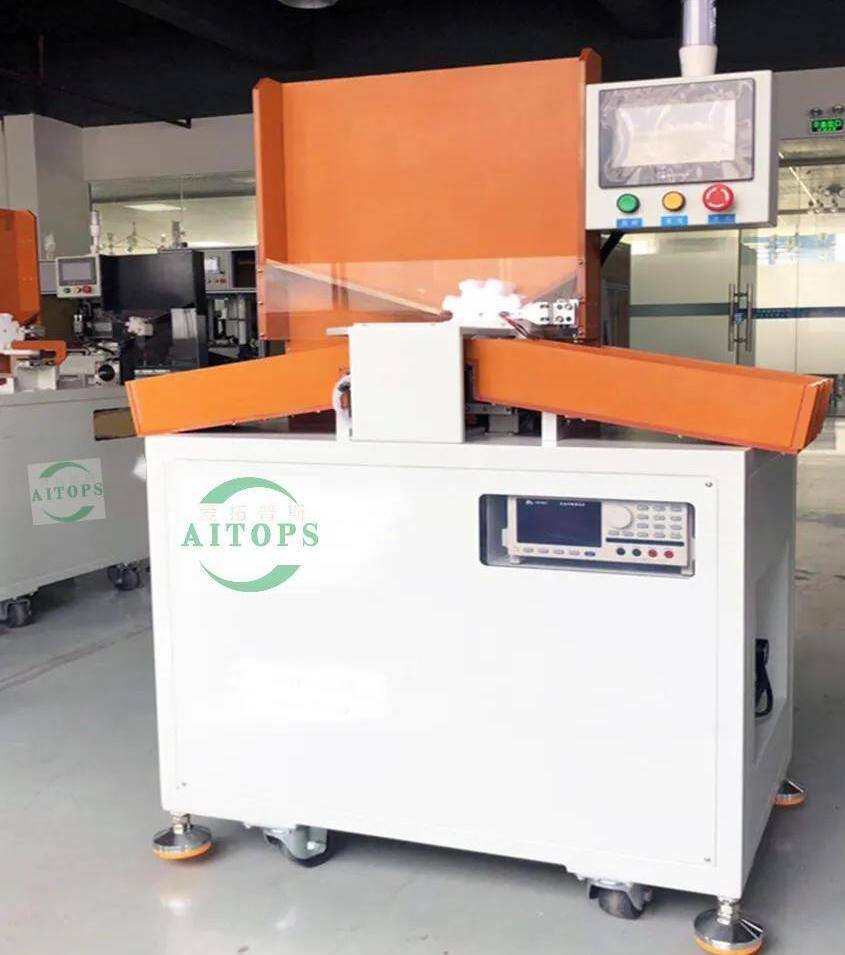

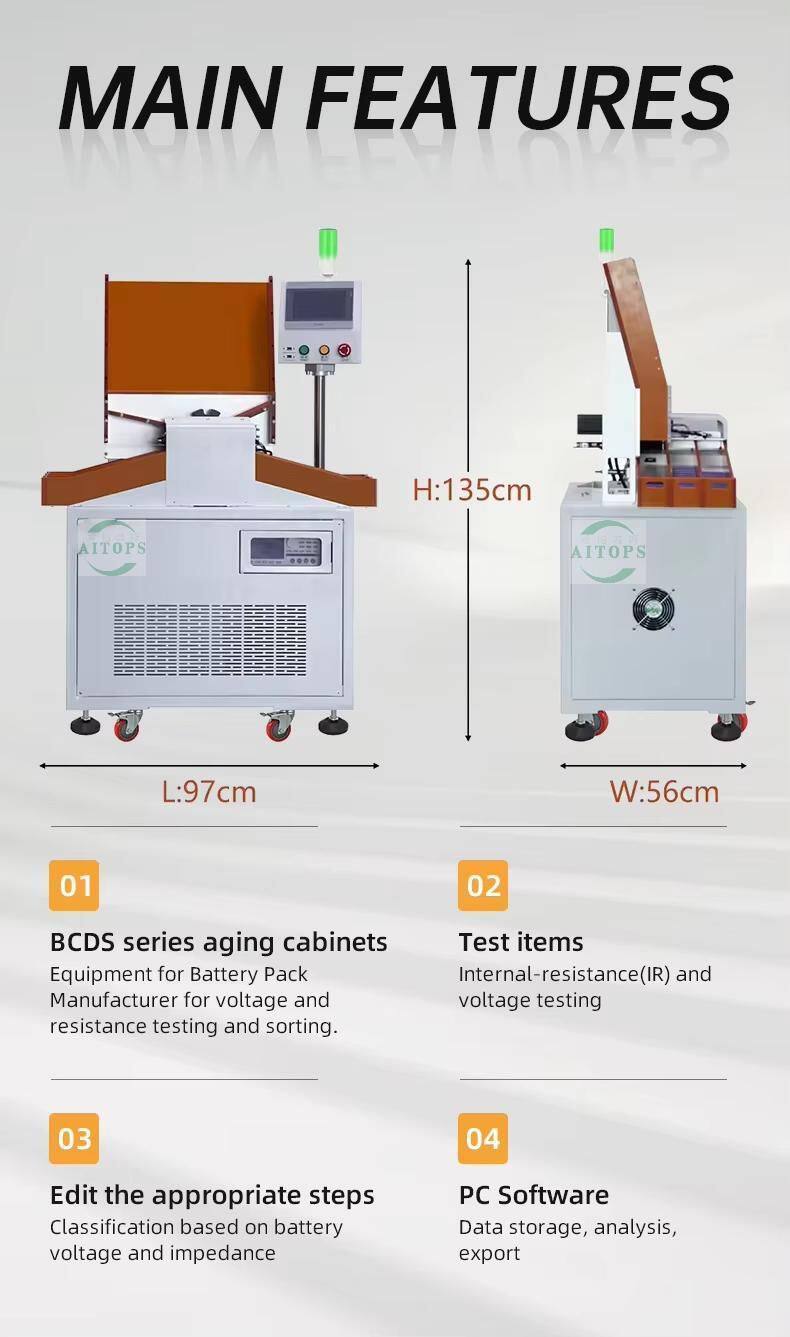

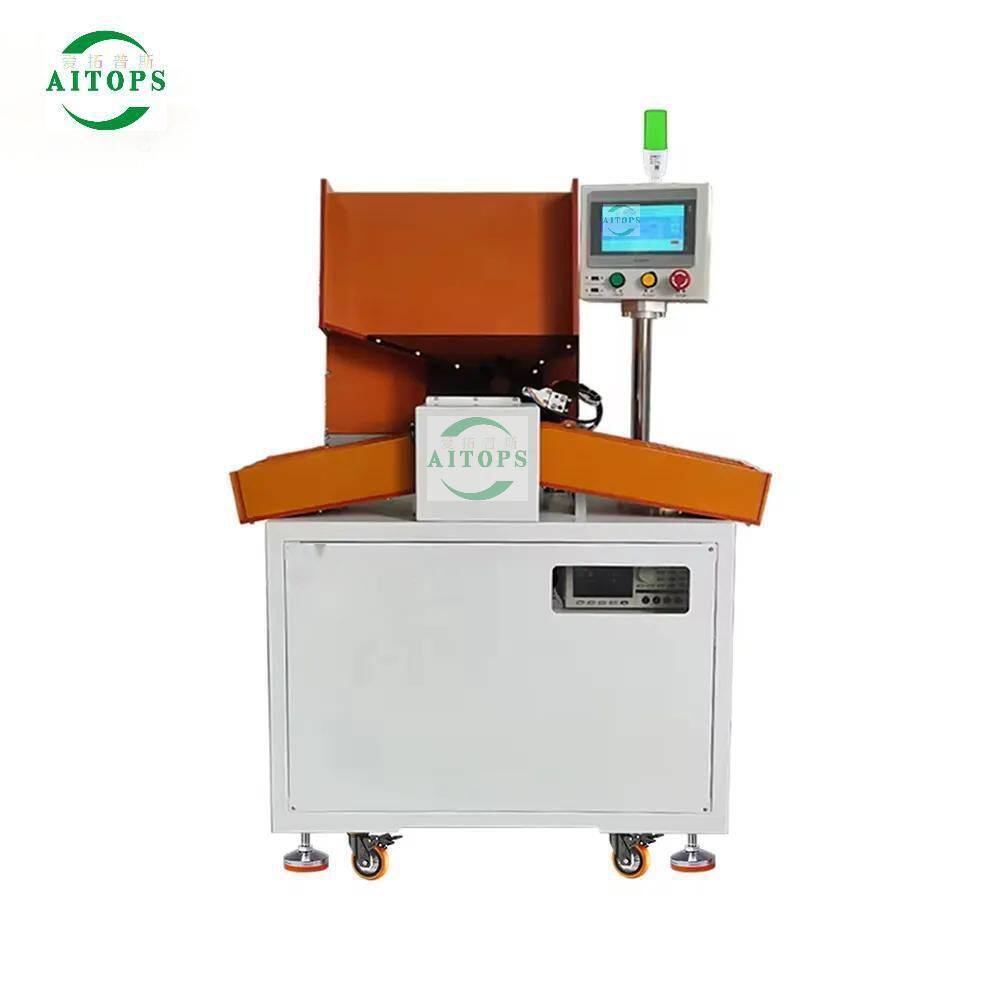

is used for testing batteries and sorting them out into 10 grades by their voltage, currenct and impedance. Cells are fed by wooden boxes, tested and sorted by manipulators and then collected by hands. This makes test precisely and sort efficiently at more than 4000 pcs per hour. This procedure can also be connected to other assemle lines to form a whole full automatic assembly line for battery pack producing.
Common use all in one 21700 32650 26650 18650 battery sorting machine /33140 32140 Battery Label Labeling Sticker Machine Insulation Paper Pasting Machine
Battery Making Machine 2 In 1 For 18650/26650/32650 Lithium Battery Cells Sorting And Insulation Paper Sticking
Features:
1 .sorting & Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and opertate for new hands.
4. High Efficiency, fully automatic, saving labor cost.
BatteryMachine ( battery sorting machine for batery cells group with similar voltage and resistance to battery pack, your battery packs will have a more longer life, and with the positive pole of the battery cell will be covered with insulating paper, your battery is more safer) #BATTERYTESTER #LFPBatteriestester #NMCbatterytester #EBikeBatteries #Energystorage #LFPNMCEBike #SolarNMCLFPBatteries AITOP manufacturers of batteries for Power bank, Solar,laptops,E-Vehicles, E-Bikes,E-Tools,toy,Mobile phones,Energy storage and etc.
We provide all kind of lithium battery pack assembly machines and solutions with good quality and services.
Our products including:
1.IR tester
2.Capacity tester for cylindrical &prismatic&polymer cells
3.BMS tester
4.Sorting machine for common use
5.Insulation paper sticker machine
6.Manual spot welding machine
7.Automatic spot welding machine
8.Battery pack integrated tester
9.Battery pack charging discharging aging machine battery pack charge discharge tester 10v,15v,20v,30v,60v,70v,100v,120v
capacity tester cell charge discharge tester 5v,3A/6A/10A/20A/30A/50A/60A/100A/200A
Bms tester 16 series 20s 24s 32s,48Series
battery pack function tester 100v 120A 200A
10.PVC shrinking machine
11. Nickel plate&PVC cutting machine
12.Laser welding machine
13.Wire bonding machine
5V series 5V6A 5V10A 5V30A 5V60A 5V100A 5V120A 5V240A...
15V series 15V10A 15V30A...
20V series 20V5A 20V10A 20V20A...
30V series 30V10 30V20A 30V30A 30V50A 30V60A 30V100A 30V200A. .....
60V series 60V10A 60V20A 60V30A 60V40A 60V50A 60V60A 60V100A 60V150A 60V200A 60V300A...
100V series 100V10A 100V20A 100V30A 100V50A 100V60A 100V100A 100V150A 100V300A...
120V series 120V10A 120V20A 120V30A 120V60A 120V100A 120V120A 120V300A...
150V series 150V10A 150V20A 150V40A 150V80A...
Energy saving aging meter is available only above 30V，Dear,Elevate Your Business with New Energy Lithium Battery Pack Equipment
- Create More Value and Earn More for you !our main products:
1. cylindrical Battery PACK machines

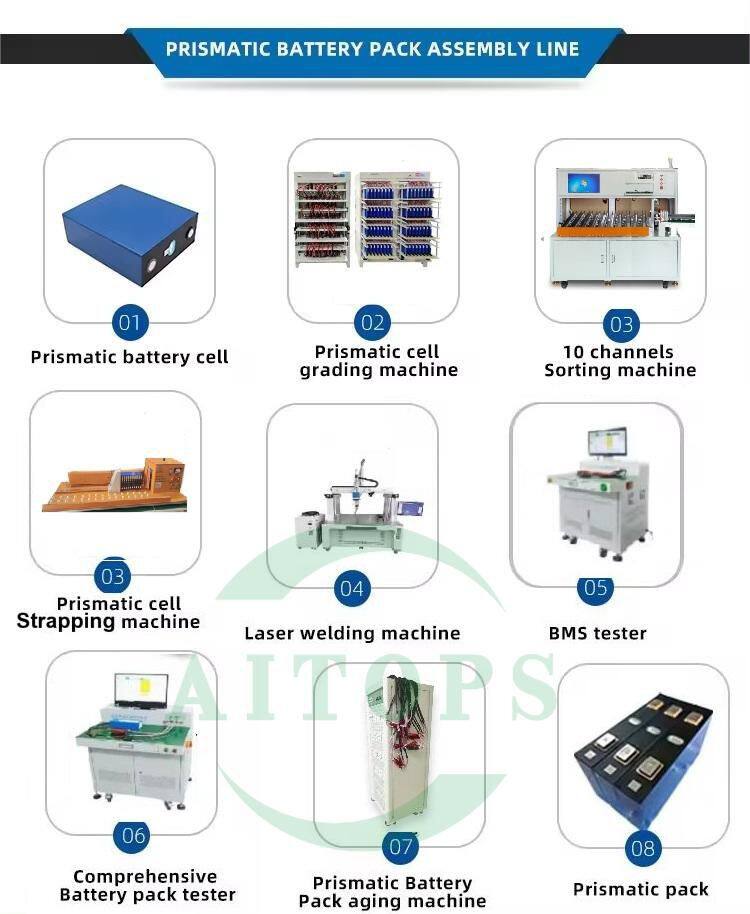

2. Automatic prismatic&polymer Battery PACK Assembly Line
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.

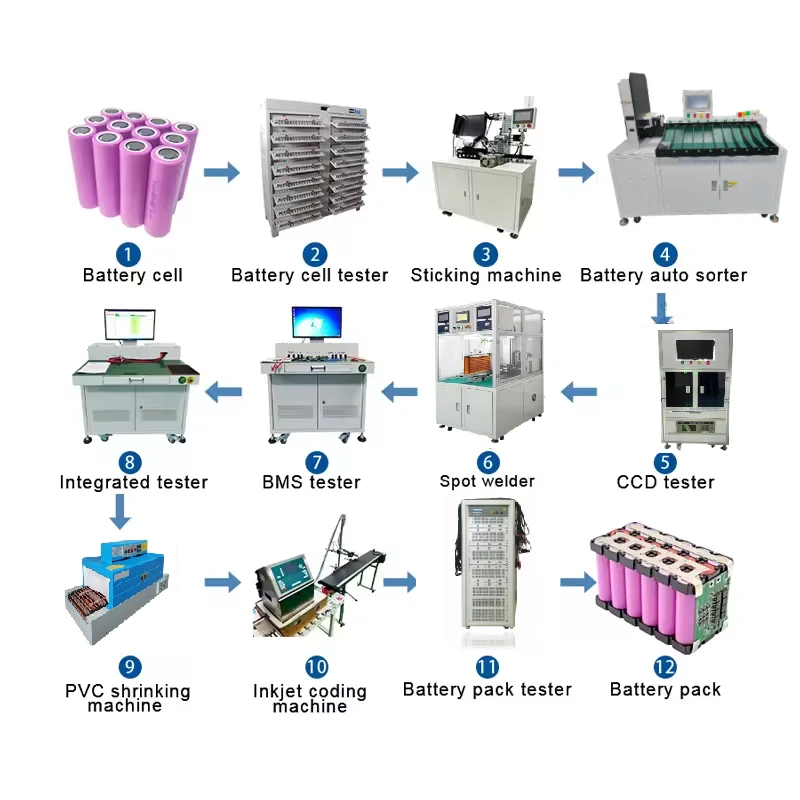

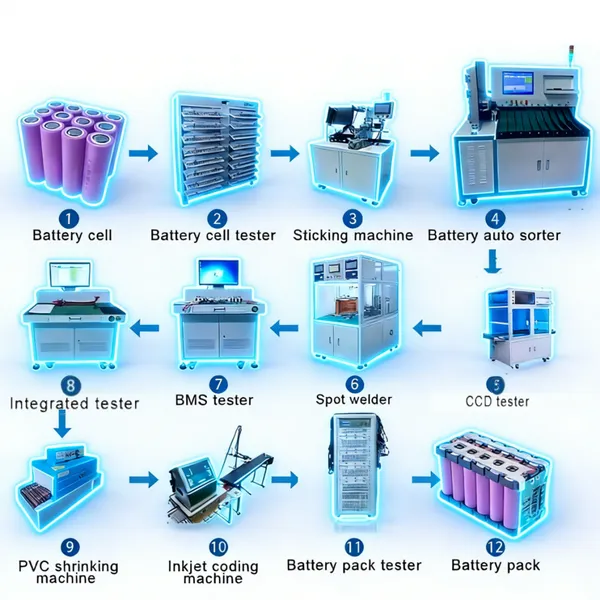

We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/
18098989643/
Email:sales(@)
