Functional description:
The 32700battery 13 channel sorting machine is suitable for the voltage and internal resistance sorting test of the 32700battery core which is divided by the battery core factory. The electrical control part of the sorting system adopts modular design, with high integration, good general purpose and convenient maintenance. The actuator adopts stepper motor control with high precision and good reliability. The number of equipment receiving slots is 13 slots, which can be arbitrarily set voltage and internal resistance value. The sorting efficiency is high, and the battery can be accurately sent to the specified gear according to the set internal resistance and voltage value. The equipment adopts the silo type loading, the cylinder automatically divides the material, and the personnel manually collects the material. Realize the automation of 32700cell sorting.
Parameters of the whole machine:
1. Host input power: single phase 220V/50Hz
2. Dimensions: 1800mm (length) * 800mm (width) * 1400mm (height)
3. Access air pipe: Φ10mm (outer diameter)
4. Air source low pressure: 0.4~0.6MPa
4. Machine weight: 290KG
5. Machine power: 0.5KW
u General configuration and standards of equipment
1. Equipment equipped with tools: 1 set of instructions, 1 set of Allen wrenches, and accessories for consumable parts list.
2. The equipment complies with the safety standards of the national equipment and meets the safety standards required by the relevant party's safety code.
3, the main configuration list
NO. |
Name |
Model/Technical Parameter |
Brand |
1 |
PLC main engine |
FBS-40mat |
Fakek |
2 |
Touch screen |
10-inch |
Kunluntongtai |
3 |
Geared motor |
5IK60RGN-C+5GN50K |
V.T.V |
4 |
servo motor |
400W |
Hcfa |
5 |
pneumatic component |
AirTAC |
|
6 |
slide |
Hiwin |
|
7 |
Battery tester selection |
HK3561/Hioki 3561 |
HK/Hioki |
Test items :
A. 32700cylindrical battery voltage test
B. 32700cylindrical battery internal resistance test
C. Based on the voltage and internal resistance test, the 32700cylindrical battery is divided and the specification is set.
Main technical parameters:
Tester accuracy
A. Voltage measurement technical parameters
Voltage measurement resolution: 0.1MA
3561 battery measuring instrument voltage range: 19.9999V
Accuracy: ±0.025% R.D.±6dgt
B. Internal resistance measurement technical parameters
Internal resistance measurement resolution: 0.1mΩ
3561 battery tester resistance range: 310.00mΩ / 3.1000Ω
Accuracy: ±0.025% R.D.±6dgt
C. Internal resistance measurement frequency: 1KHz ± 0.2 KHz (AC four-terminal method)
D.TWSL-1300-1 32700battery 13-speed one-measurement sorting machine test efficiency
Trouble-free operation design capacity: 3,500 / hour
E. Test data
The tester test result data includes test time, cell voltage value, cell internal resistance value, and receiving set value, and the data is comprehensive.

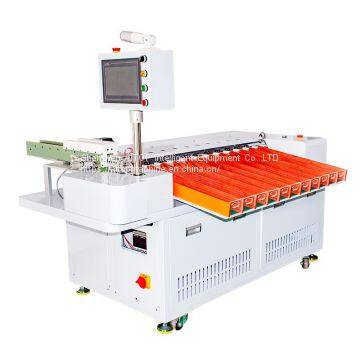

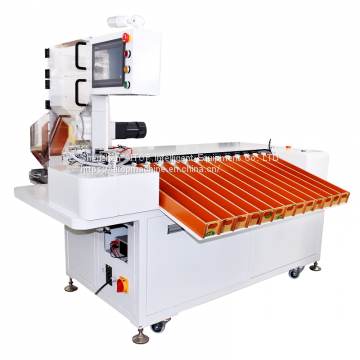

32700battery 13 channel sorting machine appearance:
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
