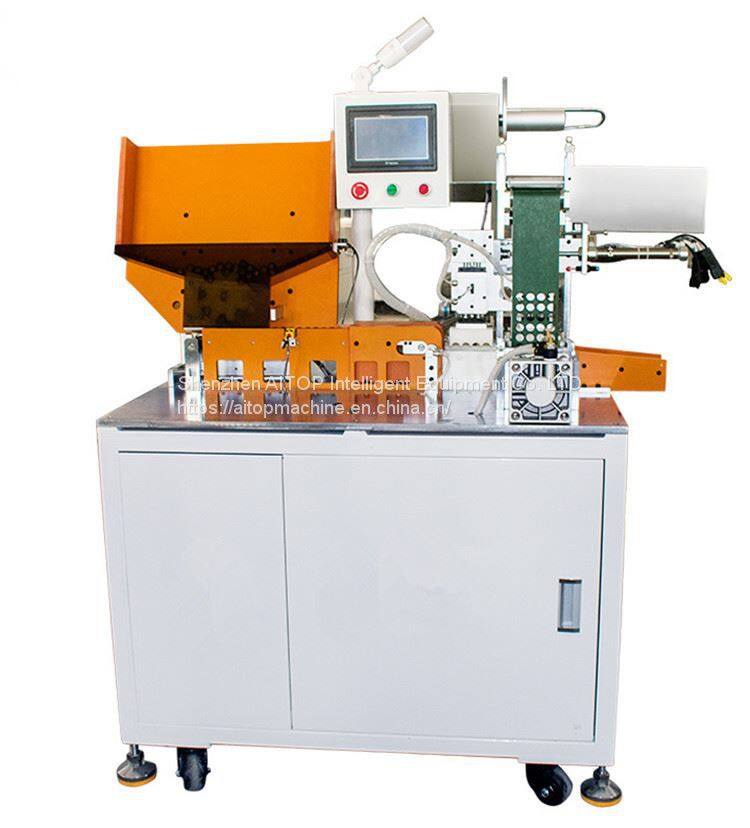

2 in 1 Insulation Paper Pasting Machine Sorting Machine For 8650/26650/32650 Insulating/Insulation Adhesive Highland Barley Paper Pasting Sticker

Automatic Lithium Battery Insulating Paper Pasting Sticking Machine Sticker Adhesive Label Labeling Machine for Cylindrical Cell

Features
This machine can use a big roll of barley paper or PVC to automatically paste cylindrical cells.
1. Stickers pasted stable, consistent, and long lasting.
2. Automatic failure alarm.
3. Easy to program, adjust, and operate for new hands.
4. High Efficiency, fully automatic, saving labor cost.

Performance Characteristics

The battery automatic pasting highland barley paper machine is an automatic equipment for testing cylindrical batteries (18650 cells) before pasting highland barley paper. The equipment is controlled by PLC to complete the test and sorting of stepping motor and cylinder (optional), eliminate defective products, realize the function of pasting highland barley paper on qualified electric cores, and complete about 4500 cylindrical finished electric cores per hour. The mechanical structure design is simple and generous, and the system performance is stable. It is a cylindrical battery insulation highland barley paper equipment with the highest cost performance in the market.

1 Manually pour the electric core into the hopper of the automatic spot welder 2 Load the rolled highland barley paper into the equipment 3 The factory parameters have been set. Just press the reset button, no debugging is required for any parts, and then press the start button to start production. The electric core pasted with highland barley paper flows out from the rear section and is received and boxed manually.

Technical Parameters

Production Efficiency	4500pcs / hour
Equipment Power	220V 50HZ，1.5KW，220V AC input
Use Air Pressure	0.4-0.8mpa. When using the air source, there must be a filtering device to ensure that the air flow is free of water and impurities
Adaptive Range	18650 electric core positive pole pasted with insulating highland barley paper
Suitable for Highland Barley Paper Width	100mm ± 0.5mm, inner diameter of coil 75mm, maximum outer diameter of coil 350mm
Suitable for Highland Barley Paper Thickness	0.1MM---0.3MM
Cushion Power	The 0.4KW variable frequency motor is debugged and equipped with buffer power to ensure no damage to the electric core
Cushion Effect	Good consistency, firm pasting and beautiful appearance
Control Device	7.5-inch touch screen, 2-axis stepper motor design, 42 point PLC programmer

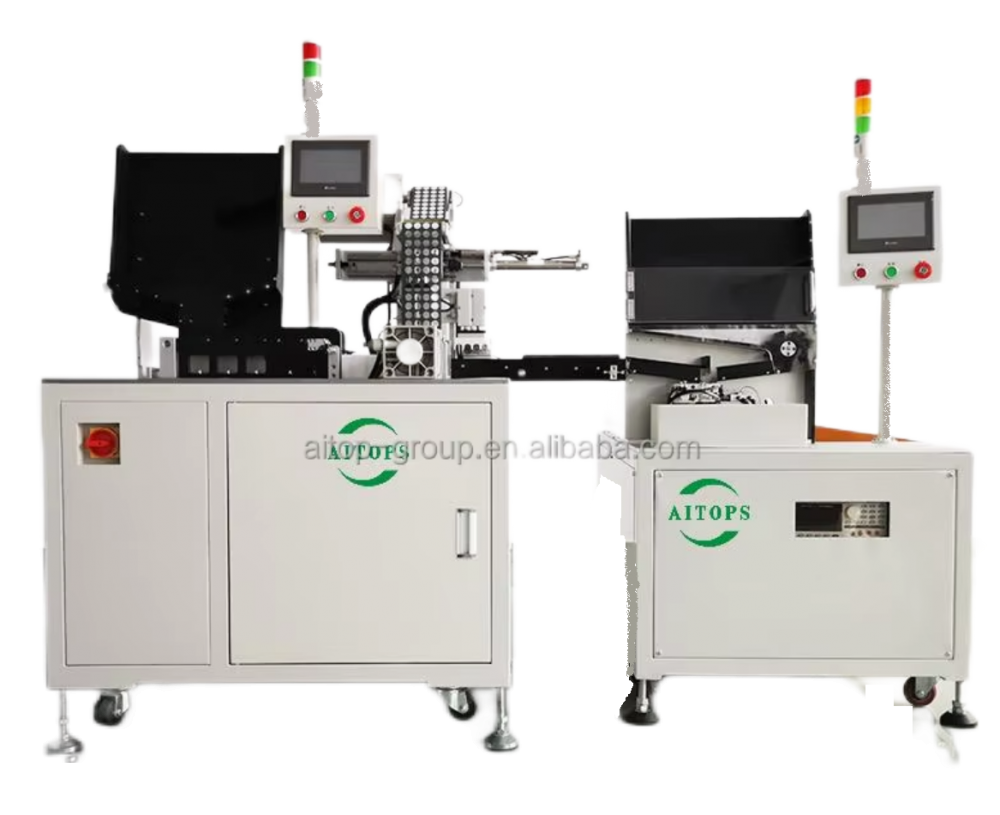

18650/21700/26650/32650/32700 batteries to sorting and sticker. it has been a cost-effective sticker and sorting combination integrated equipment. The two machines are loaded and received in the same direction. They can be combined with single operation or separately. automatic device for 18650/21700/26650/32650/32700 batteries to sorting and sticker. it has been a cost-effective sticker and sorting combination integrated equipment. The two machines are loaded and received in the same direction. They can be combined with single operation or separately.Sticker die can be replaced, applicable to battery 18650 21700 26650 32650 32700 etc, sorter can be equipped with 5 channels, 6 channels, 11 channels, etc.

achine	Voltage Supply	single-phase ~ 220V, 50Hz
	Rated power	2KW
	Surface pad material	highland barley paper or PVC material
	Material specification requirements	the max diameter of barley paper roll material is 350MM, the inner diameter of paper roll core is 72-75MM
	batrery type	18650 battery cell positive or negative pole is automatically pasted with highland barley paper mat or PVC material
	Feeding method	insert battery cell hopper: 400pcs each time, available for 2 separate inserting units
	Pneumatic pressure	0.4-0.8Mpa barley paper machine
	Cushioning power	electric or pneumatic
	Control device	7.5 inch touch screen, PLC programmer and servo motor
	Barley paper roll width	100mm
	Speed	4000-4500PCS/hour, 4PCS per punch
	Dimensions	L1000mm×710mm×1500mm
	Machine weight	200Kg
	Knife mold	slow-moving wire processing method, high precision, 5000 knife molds are coated once to remove sticky water
Sorting machine	Equipment power supply	single-phase ~220V±10%/50Hz±10%, power <300W
	Battery Types	18650（other sizes available）
	Receiving channel	10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
	Test parameters	AC internal resistance, DC voltage
	Internal resistance test	Test range: 80mΩ,
		Accuracy: ±0.5%rdg
		Display resolution: 0.01mΩ
	Voltage test	Test range： 8V
		Accuracy ：±0.015%rdg,
		Display resolution： 0.01mV
	Sorting speed	6000 pieces/hour
	Unwinding channel	400 batteries can be stored
	Display result	5.7 inch LCD screen + PC synchronous display + industrial computer
	Weight	<300Kg
