GP319 1-24S Lithium Battery Tester Battery Voltage Tester with Tool Box Enables Quick Measurement
Lithium Battery Voltage Quick Tester for BMS 1-24S

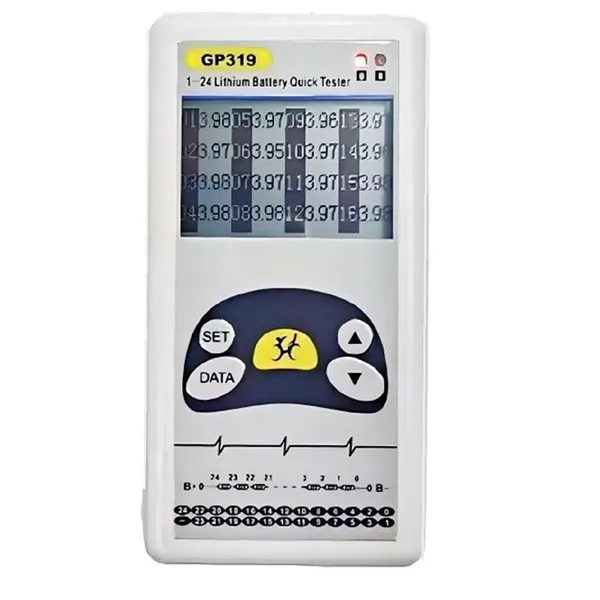

GP319 is a handheld lithium battery meter. It can quickly detect the voltage of 24S batteries at the same time, automatically analyze and compare the voltages. GP319 has high accuracy, strong timeliness and clear display. It is simple, practical and reliable to use and easy to carry. It is a cost-effective battery tester.
Type: Handheld quick tester
Battery Support: Detects up to 24 cells simultaneously
Functionality: Measures voltage with integrated data analysis
Output: Displays test results rapidly
Application: Designed for lithium battery diagnostics
GP319 Handheld Lithium Battery Quick Tester:
This device is designed to quickly detect the voltage of up to 24 battery cells simultaneously. It features an integrated system for data analysis and delivers test results promptly, ensuring efficiency in battery diagnostics.
The Lithium Battery Voltage Quick Tester for BMS (1-24S) is a compact and efficient tool designed for quickly testing the voltage of lithium battery packs with 1 to 24 series cells. This tester is ideal for assessing the state of charge, identifying imbalances, and ensuring proper functionality of battery management systems (BMS). It features a clear LCD display that shows individual cell voltages and the overall pack voltage, allowing for easy monitoring and diagnostics. Lightweight and portable, it is a valuable tool for technicians, engineers, and hobbyists working with lithium-ion batteries in various applications such as electric vehicles and renewable energy systems.
It is suitable for outdoor detection and on-site analysis of battery voltage for scientific research units, battery dealers, battery production units and battery protection system production units.
Features:
- Can be used to detect rechargeable batteries, including lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, lithium-polymer batteries and super capacitors
- A high-precision 12-bit high-voltage A/D detection circuit is integrated
- Supports online detection and battery status judgment of 1~24S batteries in series
- Real-time data analysis and display (including total voltage, highest voltage channel, highest voltage, lowest voltage channel, lowest voltage and maximum voltage difference)
- Supports two voltage display modes (analysis mode and high accuracy mode)
- The voltage safety parameters (maximum allowable voltage, minimum allowable voltage and two-stage allowable voltage difference) of battery can be set, with buzzer alarm
- All input channels support reverse polarity protection and short-circuit protection
- High-grade LCD display ensures stable and clear data. Its backlight can be manually controlled
- The system supports two power supply modes. It can be powered by the battery under test or by an external 9V square battery
- The system has low power consumption, beautiful and small appearance and solid structure. It is easy to carry
- The interface is imported 26-pin IDC socket, with 2.54mm pitch and gold-plated pins. The contact is firm and reliable to use
Working Environment Requirements:
- Working temperature: 10°C~40°C
- Storage temperature: -10°C to 50°C
- Operating environment and relative humidity: ≤70% RH (no condensation)
- Storage environment and relative humidity: ≤80% RH (no condensation)
- Application: Used indoors and outdoors

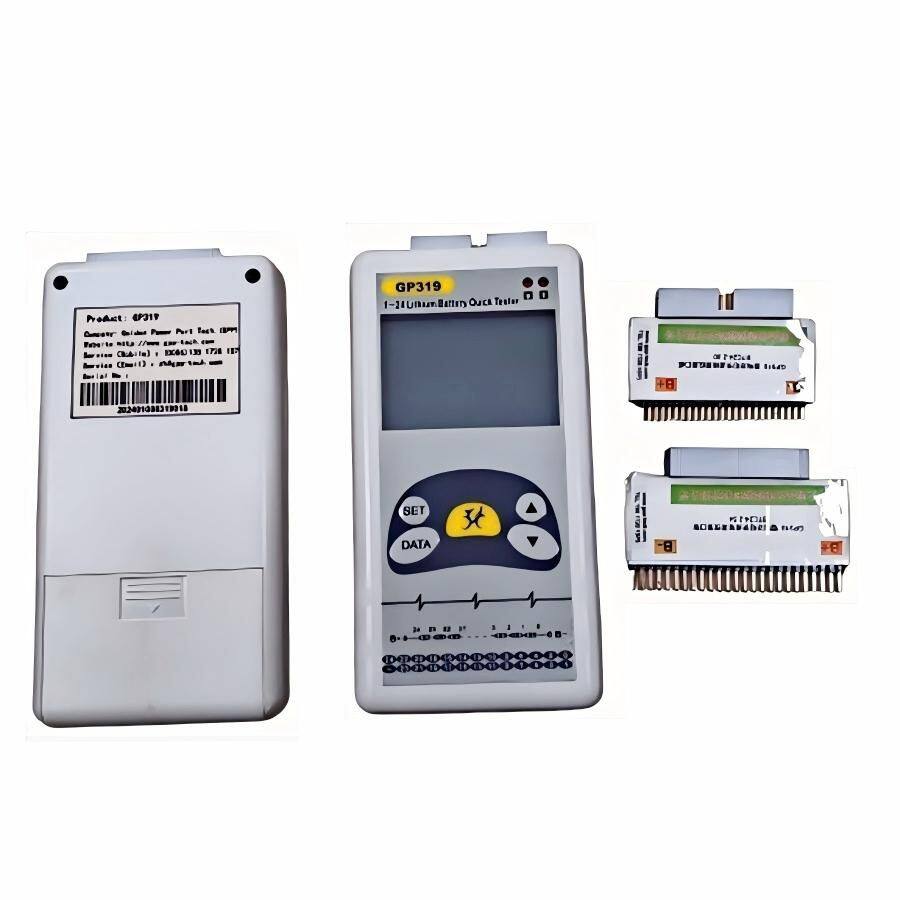

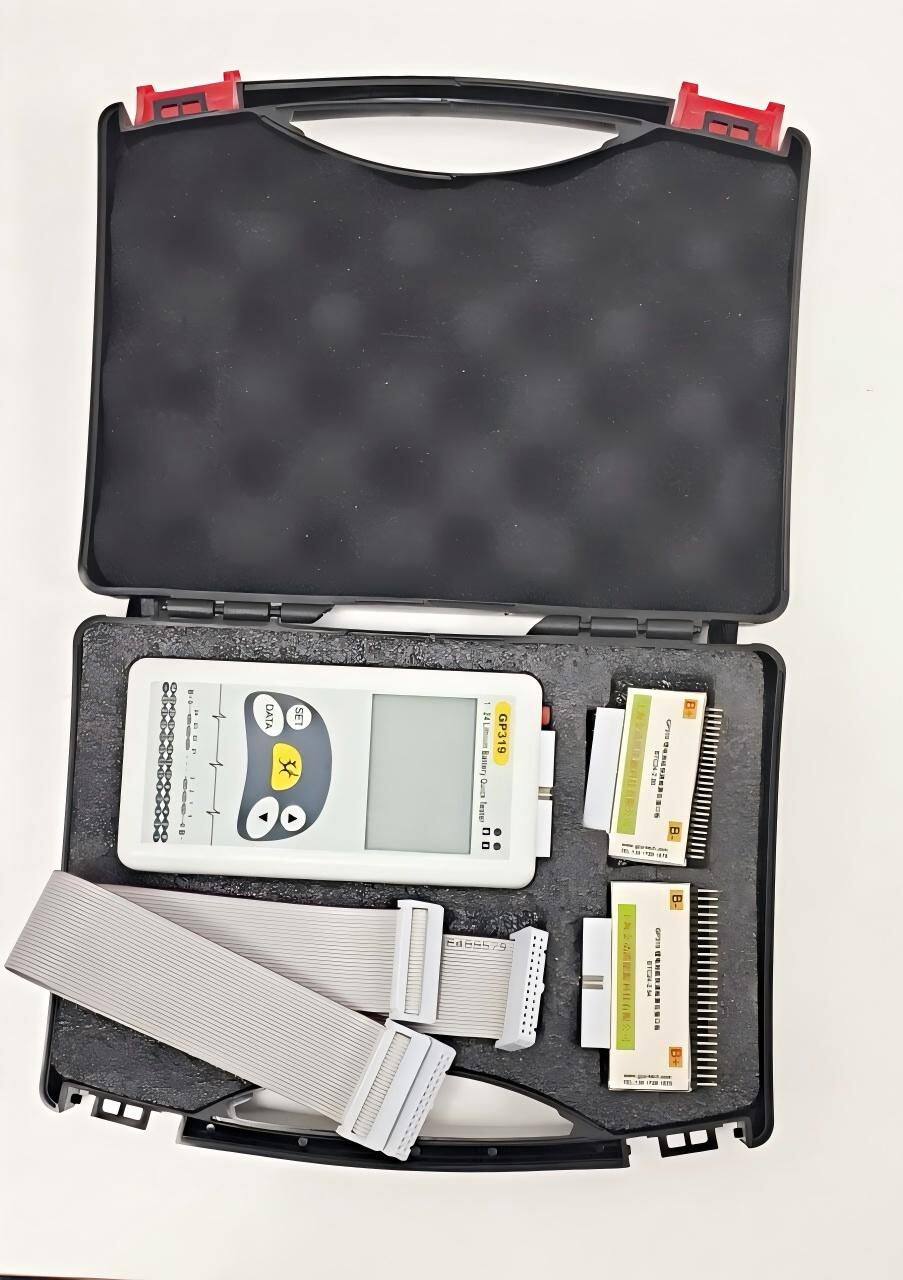

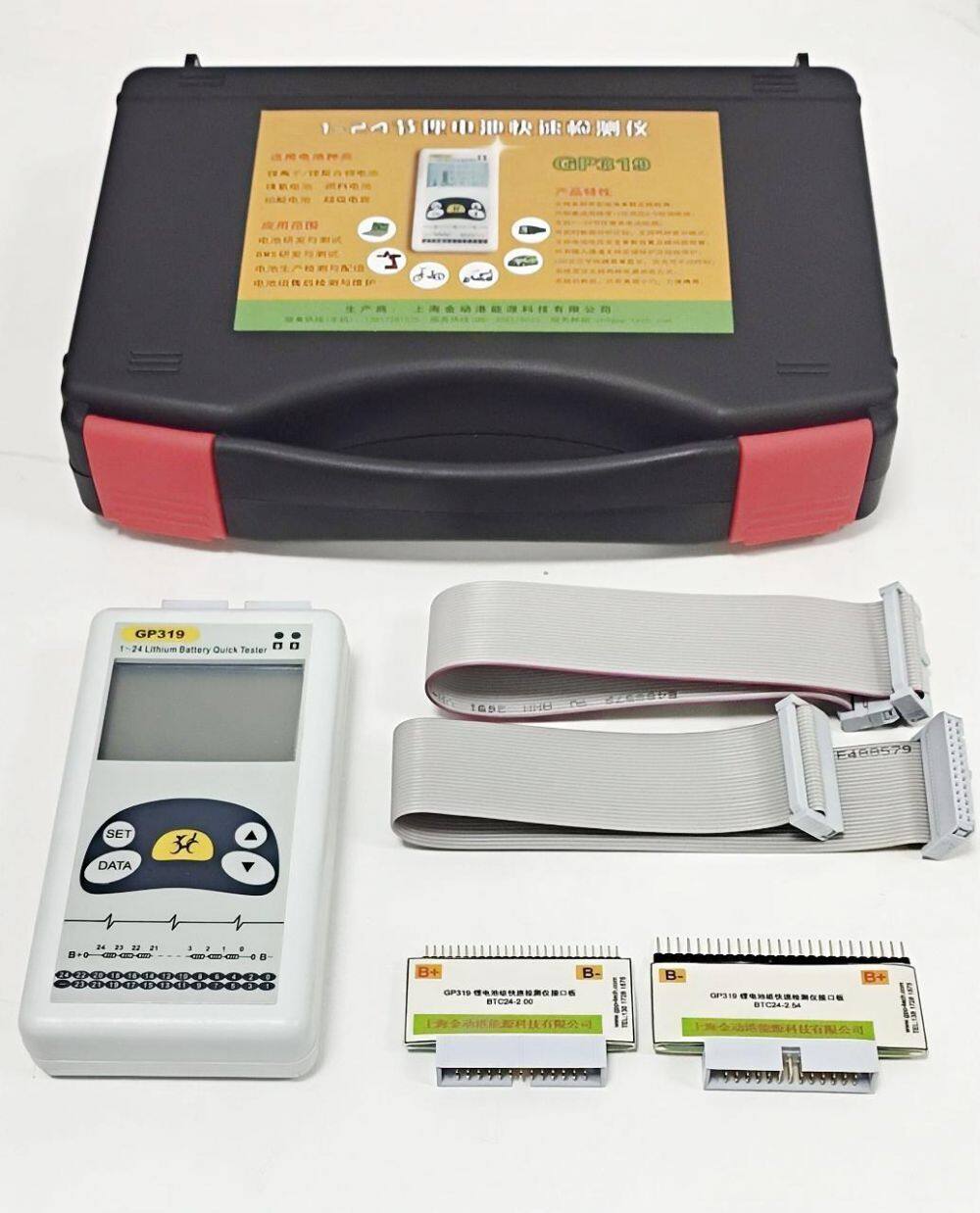

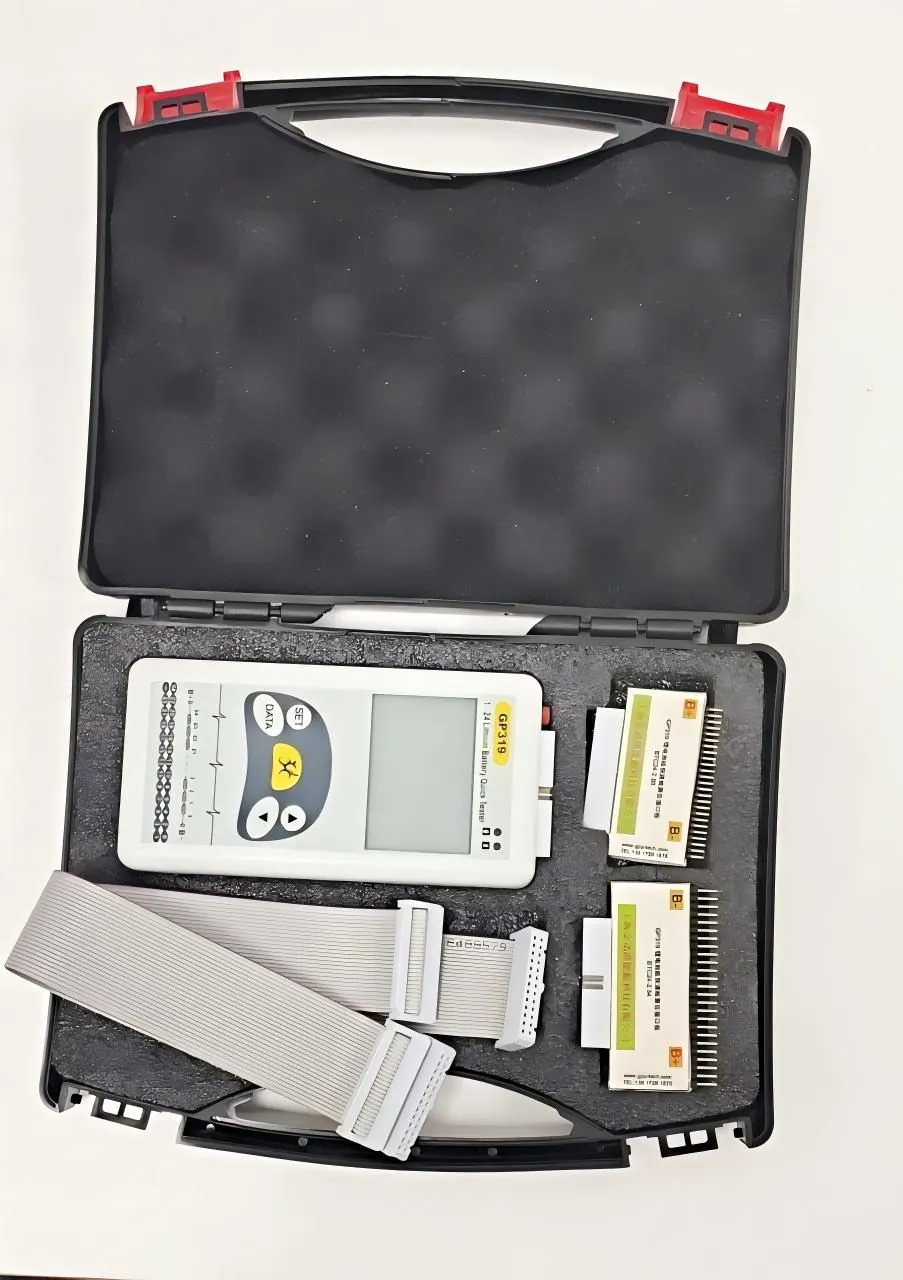

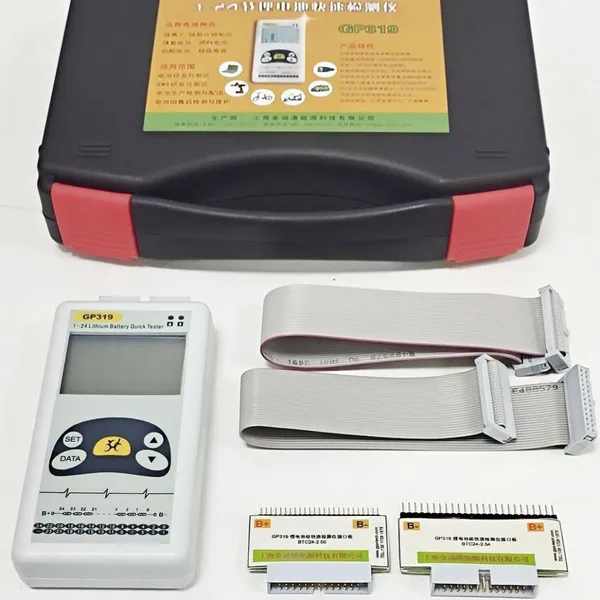

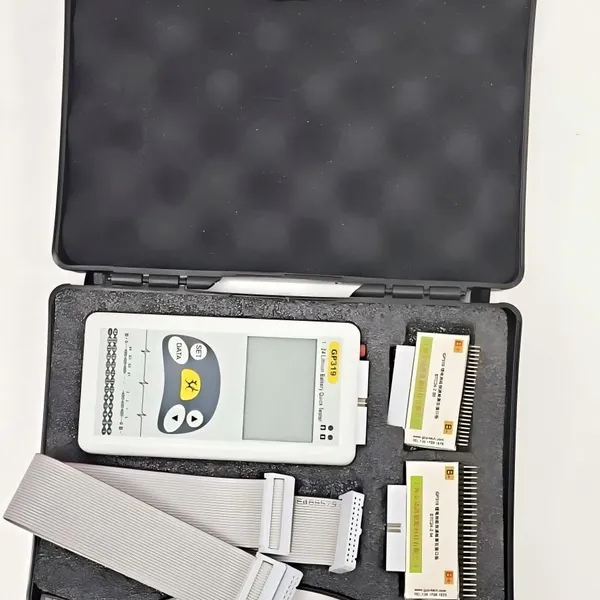

Package Included:
- 1 x GP319 tester
- 1 x BTL-24 test cable
- 1 x Test connector BTC24-2.54mm pitch
- 1 x Test connector BTC24-2.00mm pitch
- 1 x User manual
- 1 x User calibration instructions
- 1 x Plastic tool box
Product Picture
Techinical Parameters:
| SPECIFICATION | |||
| Model | TOP-500 | ||
| Power Supply | AC 220V, 50Hz | ||
| Power | 200w | ||
| Efficiency | 4000 pcs/h | ||
| Cells applied | 18650 battery cells | ||
| Programming interface | LCD screen | ||
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.

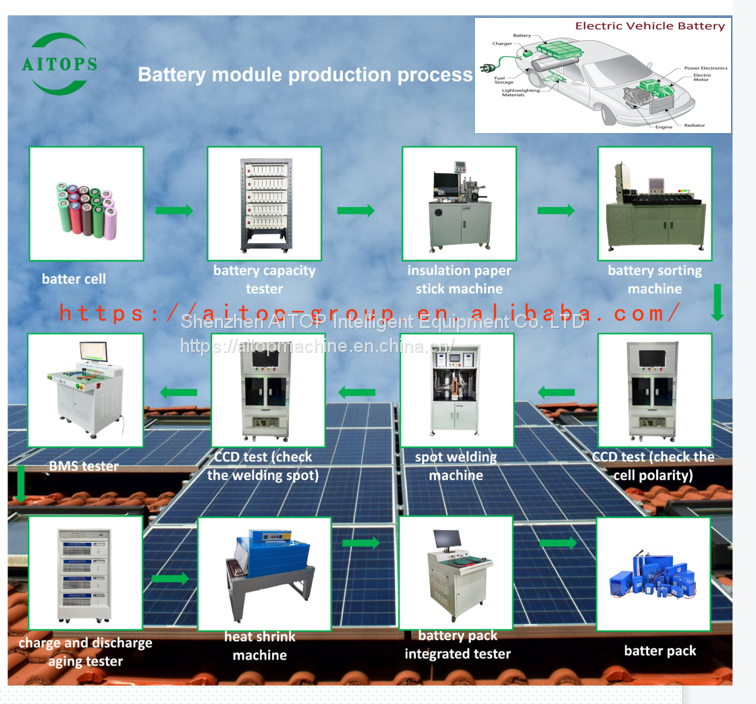

3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/18098919495
Email:sales(@)
