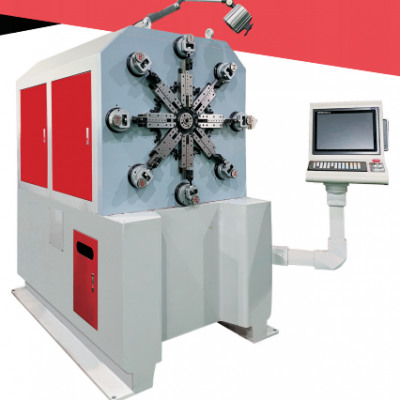

US-1225REW multifunctional copper wire forming machine
(Category) |
(Specification) |
(Model) |
US-1225REW |
(Flat wire range) |
0.3MM |
(Axis) |
10~14 |
(Wire Feed Wheel Sets) |
25 sets |
(Slide Axis) |
0.75KW×8 |
(Quill Rotary Axis) |
0.75 KW |
(Wire Rotary Axis) |
2.7KW |
(Wire Feeding Axis) |
2.7 KW |
(Spinner Axis - Optional) |
0.4KW |
(Free Arm Axis - Optional) |
0.4KW |
(Dimension - L×W×H) |
1650×1300×1750 (mm²) |
(Weight) |
1500kg |
1. The machine adopts Taiwan computer control system and servo motor imported from Japan, matched with high-precision reducer, which provides guarantee for the stability and precision of each step of forming action, effectively guarantees that the sliding seat does not slip, and ensures production safety.
2. The machine is divided into eight station shafts, wire feeding shafts, rotating mandrel shafts, and winding shafts (optional accessories), and 12 shafts can run synchronously. The eight station axes control eight groups of sliding seats, which can control the advance and retreat of each station or linkage at will.
3. The machine uses imported high-precision bearing parts to ensure stable and durable operation of the machine and effectively extend its service life. The wire breakage alarm of the wire feeder and the safety door protection mechanism provide all-round protection for the operator and the machine.
4. Advanced and intelligent professional-grade industrial computer operating system, multi-language display, the operation interface displays the position of each axis, wire feeding length, production speed, and production quantity are all displayed on the screen, and the program data can be edited and modified online, which is very convenient for debugging fast.
5. The machine design adopts European and American style and manufacturing process, and the product is high-end and atmospheric. It is popular in foreign markets such as Southeast Asia, the Middle East, Europe and the United States.
