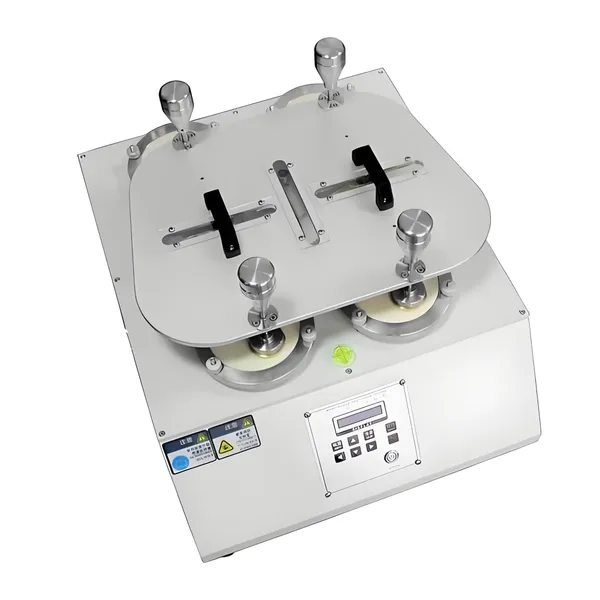

Help CenterDigital Martindale Abrasion Tester for Textile/Leather - ASTM D4966 & ISO 12947
Related Products
-
Industrial Martindale Tester for Automotive Seat Fabric - 9kPa Load & Data ExportUS$ 2000 - 3000MOQ: 1 Set -
Textile Factory Martindale Tester With 12 RPM Speed & 1000h DurabilityUS$ 2000 - 3000MOQ: 1 Set
-
OEM Service Customized Martindale Abrasion Machine With Brand Logo PrintingUS$ 2000 - 3000MOQ: 1 Set
-
High-Speed Martindale Tester for Shoes/Synthetic Leather - 25mm StrokeUS$ 2000 - 3000MOQ: 1 Set
-
Touchscreen Martindale Abrasion Tester for Quality Control Labs - Plug & PlayUS$ 2000 - 3000MOQ: 1 Set
Technical Parameter:
Model: |
DR-j803-4 |
Stations: |
4 Stations |
Interface: |
LCD display |
Standard |
GB / T4802.2, ASTM D4970, ISO12945-2 and other pilling degree test; GB / T13775, ASTM D4966, ISO12947 and other fabric abrasion tests. |
|
Count display
|
Projected Count: 0 ~ 999 999 times; Cumulative count: 0 ~ 99 9999 times |
Maximum stroke |
24 ± 0.5mm, 60.5 ± 0.5mm |
Loading : |
a. Holder:200±1g |
b. Dress material counter weight: 395±2g | |
c. Furnishings/Leather material counter weight: 594±2g | |
d. Stainless steel butterfly slice: 260±1g | |
Abrasion chunk effective rub diameter: |
A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm |
Pace speed of the holder |
50-2r/min |
Sample loading pressure hammer |
2385±10g |

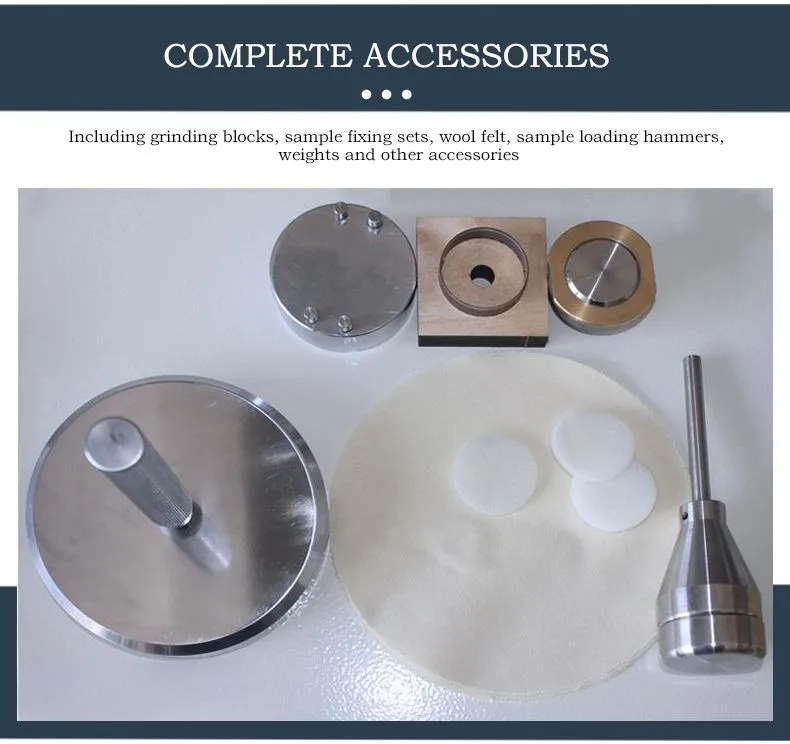

consumables |
Baize 4, Testing Cotton 4 |
Diameter of abrasion base： |
125mm |
Power |
AC 220V/50Hz |
Overall dimension: |
60cm*65cm*32cm(L×W×H) |
Weight |
76 KG |
In the textile and leather industry, abrasion resistance is one of the key indicators of product quality. In order to ensure that the products are durable enough for actual use, accurate and reliable abrasion testing is essential. We are proud to present this digital Martindale abrasion tester for textiles/leather that complies with ASTM D4966 and ISO 12947 standards, providing a professional and efficient solution for your product quality testing.
I. Standard Compliance, Quality Assurance
(A) ASTM D4966 standard compliance
ASTM D4966 is the American Society for Testing and Materials (ASTM) standard for textile abrasion resistance testing. Our Digital Martindale Abrasion Tester is designed and calibrated in strict accordance with this standard to ensure that the strict requirements of ASTM D4966 are met during the testing process, from sample preparation, test parameter setting to data collection and analysis. This makes the results you get when using this instrument for testing highly credible and comparable, and can be widely recognized worldwide.
(ii) ISO 12947 Standard Compliance
ISO 12947 is a standard issued by the International Organization for Standardization (ISO) for the testing of abrasion resistance of leather and synthetic materials. This tester also follows the ISO 12947 standard, with performance and accuracy comparable to advanced testing equipment worldwide. Whether in the domestic market or the international market, the use of testers in accordance with ISO 12947 standard can provide strong support for your product quality testing and help your products enter the international market smoothly.
Second, excellent performance, accurate measurement
(A) high-precision digital control system
This Martindale abrasion tester is equipped with advanced high-precision digital control system, which can accurately control various parameters during the testing process, such as the number of friction times, friction pressure, friction speed and so on. Through the digital display, you can intuitively set and adjust these parameters to ensure the accuracy and repeatability of the testing process. At the same time, the digital control system is also equipped with data recording and analyzing functions, which can record the data during the testing process in real time and generate detailed test reports, providing comprehensive data support for your product quality assessment.
(ii) High-quality wear-resistant test components
The wear-resistant test components of the instrument are made of high-quality materials and exquisite manufacturing process, which ensures the accuracy and stability of the test. The selection of friction heads and wear-resistant materials is carefully designed and strictly screened to simulate various friction situations in actual use, providing a realistic assessment of the wear resistance of textiles and leather. In addition, the wear-resistant test components also have good abrasion resistance and corrosion resistance, can be used in a long time to maintain stable performance, reduce equipment maintenance costs.
(iii) Multiple test modes available
In order to meet the needs of different users, this tester provides a variety of test modes, such as single-point test, multi-point test, reciprocating friction test and so on. You can flexibly choose the appropriate test mode according to the characteristics of the samples and test requirements to obtain more comprehensive and accurate abrasion resistance data. Whether for thin textiles or thick leather materials, you can adjust the test mode and parameters to get the ideal test results.
Humanized design, convenient operation
(A) simple and intuitive operation interface
The tester is equipped with a simple and intuitive operation interface, all the operation buttons and function menus are well laid out and easy to understand and operate. Even inexperienced users can familiarize themselves with the operation of the instrument in a short time and easily complete the wear-resistant test work. Detailed operation tips and help documents are also provided on the operation interface, so that you can get timely solutions to problems encountered in the process of using the instrument.
(ii) Convenient sample mounting and fixation
In order to facilitate the user to install and fix the sample, the tester is designed with a special sample fixture. The fixture has good clamping force and stability, which can ensure that the sample will not move or deform during the testing process and ensure the accuracy of the test results. At the same time, the sample fixture is very simple to install and remove, greatly improving the testing efficiency.
(iii) Intelligent alarm and protection function
The instrument is also equipped with intelligent alarm and protection functions. When abnormal conditions occur during the testing process, such as excessive friction, high temperature or equipment failure, the instrument will automatically send out an alarm signal and stop the test in order to avoid damage to the equipment and samples. This intelligent protection function not only improves the safety of the equipment, but also extends the service life of the equipment.
Fourth, widely applicable to meet the diverse needs
(A) applicable to a variety of textiles and leather materials
This Martindale abrasion tester is suitable for abrasion resistance testing of various textile and leather materials, including cotton, silk, wool, chemical fiber, leather and so on. Whether it is clothing fabrics, household goods or industrial textiles, this instrument can be used to accurately assess the abrasion resistance, providing a strong guarantee for your product quality control.
(ii) Widely used in different industries
As textiles and leather are widely used in many industries, this tester is also favored by several industries. Our digital Martindale abrasion tester plays an important role in the apparel manufacturing industry, luggage manufacturing industry, furniture manufacturing industry, automobile upholstery industry and so on. It helps enterprises and scientific research institutions to ensure the quality and performance of their products, improve the competitiveness of their products, and meet the needs of the market and customers.
V. Professional after-sales service, worry-free use
(A) Technical support team on standby
We have a professional technical support team, they have a wealth of product knowledge and practical experience, can provide you with a full range of technical support. Whether it is in the installation and commissioning of equipment, operation and use or maintenance, you can contact our technical support staff at any time you encounter any problem, they will provide you with timely solutions to ensure that you can use the tester smoothly.
