Technical Parameter:
Model: |
DR-j803-4 |
Stations: |
4 Stations |
Interface: |
LCD display |
Standard |
GB / T4802.2, ASTM D4970, ISO12945-2 and other pilling degree test; GB / T13775, ASTM D4966, ISO12947 and other fabric abrasion tests. |
|
Count display
|
Projected Count: 0 ~ 999 999 times; Cumulative count: 0 ~ 99 9999 times |
Maximum stroke |
24 ± 0.5mm, 60.5 ± 0.5mm |
Loading : |
a. Holder:200±1g |
b. Dress material counter weight: 395±2g | |
c. Furnishings/Leather material counter weight: 594±2g | |
d. Stainless steel butterfly slice: 260±1g | |
Abrasion chunk effective rub diameter: |
A model: 200g(1.96N,9KPa) , abrasion head￠ 28.8 -0.084mm |
Pace speed of the holder |
50-2r/min |
Sample loading pressure hammer |
2385±10g |
consumables |
Baize 4, Testing Cotton 4 |
Diameter of abrasion base： |
125mm |
Power |
AC 220V/50Hz |
Overall dimension: |
60cm*65cm*32cm(L×W×H) |
Weight |
76 KG |
All-in-one Martindale kit: one-stop solution for materials wear resistance testing
In the field of materials science and engineering, an accurate assessment of a material's wear resistance is a critical part of ensuring product quality and performance. We are proud to introduce the All-in-One Martindale Kit, which integrates an advanced Martindale tester, high-quality sandpaper, a precision sample cutter, and practical tools to provide you with a one-stop, all-encompassing solution for materials abrasion resistance testing that meets your needs in R&D, production, and quality control.

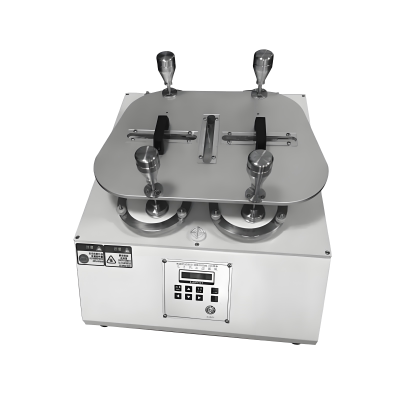

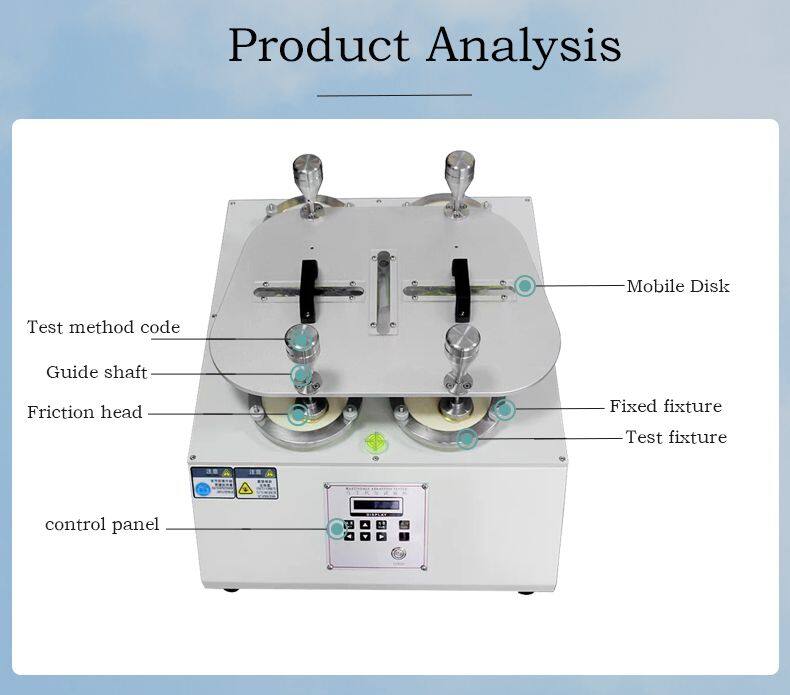

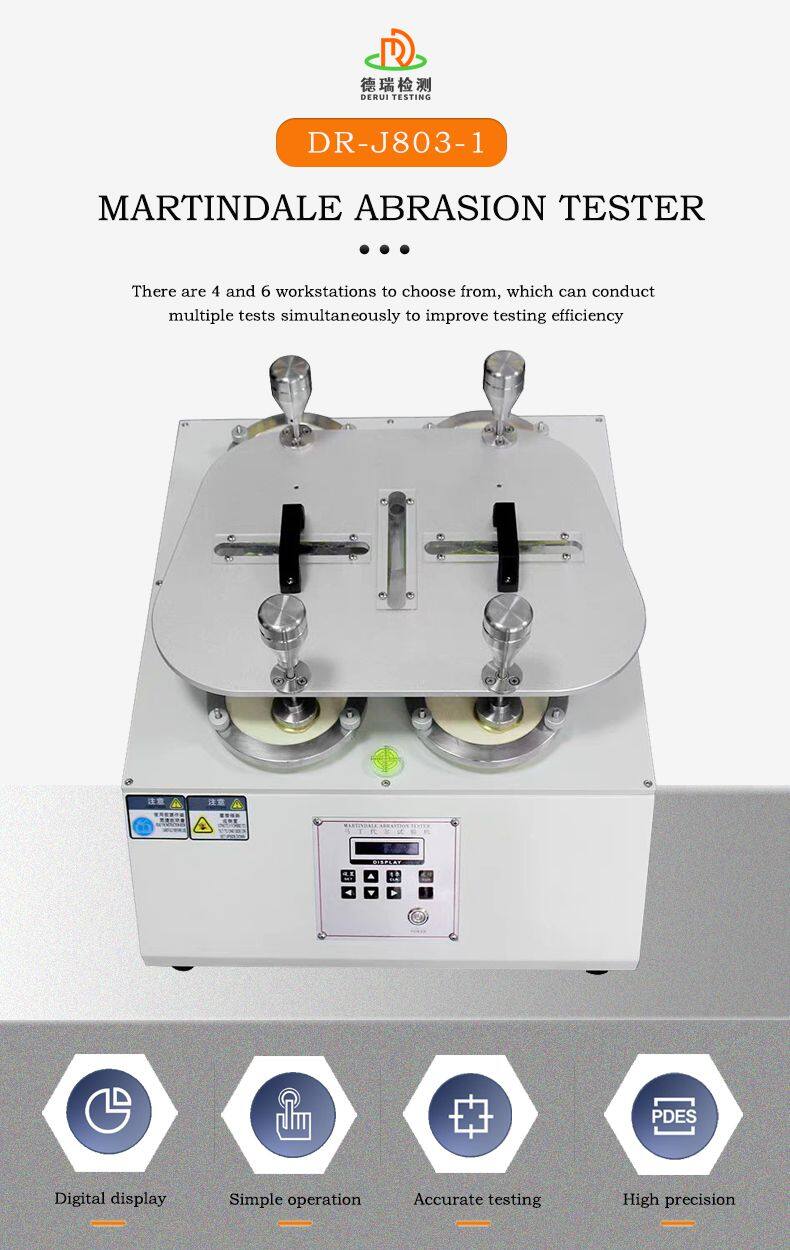

I. Core Component: High-performance Martindale Tester
(A) Accurate measurement, reliable data
This Martindale tester adopts advanced sensing technology and precise mechanical structure, which can accurately measure various parameters of the material in the friction process, such as friction force, friction number, wear degree, etc.. Through the high-precision measurement system, it ensures the accuracy and reliability of the test results and provides solid data support for material performance evaluation.
(ii) Multiple testing modes, flexible application
In order to meet the needs of different materials and tests, the tester has a variety of test modes to choose from, including constant speed friction, constant load friction and so on. You can flexibly adjust the test parameters according to the specific material characteristics and test requirements, and easily cope with a variety of complex test scenarios, whether it is textiles, leather, plastics or metal and other materials, you can get an accurate assessment of wear resistance.
(C) Humanized design, convenient operation
The tester is equipped with an intuitive and easy-to-understand interface, the operator can easily set the test parameters, start and stop the test process. At the same time, the instrument is also equipped with real-time data display and recording functions, so that you can always understand the progress and results of the test. In addition, the simple and clear operation procedure and humanized design concept make even inexperienced users can quickly get started and complete the test work efficiently.
High-quality supporting: high-quality sandpaper
(A) a variety of particle size options to meet different needs
Sandpaper is an indispensable consumable in Martindale testing, and our kits provide a variety of grit sizes for you to choose from. From coarse to fine grit, different grit sizes are suitable for different materials and testing stages, which can effectively simulate the different degrees of friction and wear that materials are subjected to in actual use, ensuring the accuracy and reliability of test results.
(ii) High-quality materials, strong durability
Sandpaper is made of high-quality abrasive and binder, with good abrasion resistance and corrosion resistance. In the process of long-time use, the sandpaper can maintain stable grinding performance and is not easy to fall off and deformation, which greatly extends the service life of the sandpaper and reduces the cost of testing.
Third, precision tools: sample cutter
(A) accurate cutting, sample quality is guaranteed
Sample cutter is a key tool for the preparation of test samples, our sample cutter adopts advanced cutting technology and precise mechanical structure, which can realize accurate cutting of various materials. Whether it is block material or sheet material, it can be cut quickly and accurately according to the size and shape you set, ensuring the dimensional accuracy and quality consistency of the samples, and providing a reliable guarantee for the subsequent test work.
(ii) Safe and reliable, easy to operate
The sample cutter is designed with full consideration of user's safety and operation convenience. Equipped with a protective device, effectively preventing the splashing of debris generated during the cutting process to cause injury to the operator. At the same time, the operation is simple and easy to understand, just place the sample on the cutting table, adjust the cutting parameters, you can easily complete the cutting task, greatly improving work efficiency.

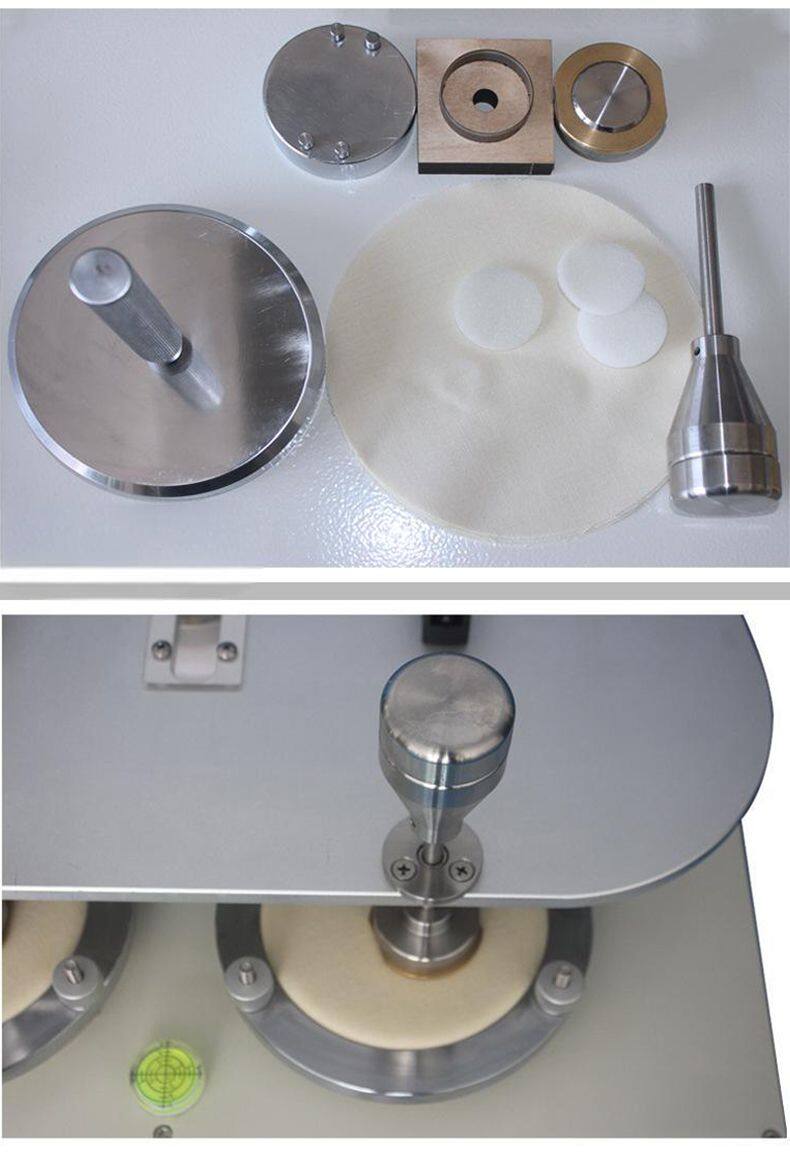

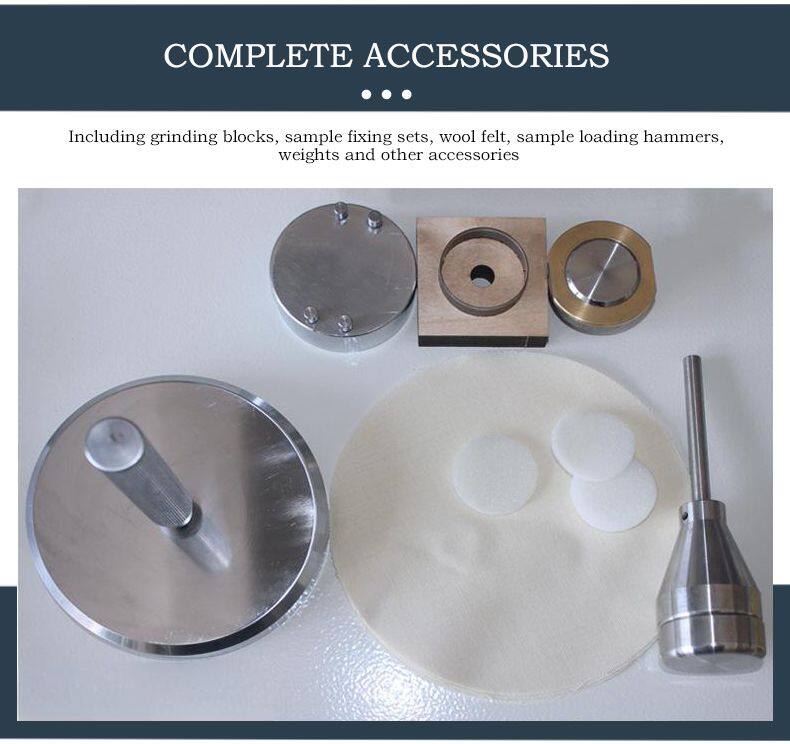

Fourth, practical tools to help test work
(A) a full range of tools to meet a variety of needs
The kit also contains a series of practical tools, such as tweezers, magnifying glasses, cleaning tools and so on. These tools play an important role in the material testing process, for example, tweezers can be used to clip tiny samples or impurities, magnifying glass can be used to observe the microstructure of the surface of the sample and wear and tear, and the cleaning tool ensures the cleanliness and hygiene of the test samples and instruments to ensure the accuracy of the test results.
(ii) Well-designed and excellent quality
These tools are carefully designed and strictly selected, made of high quality materials, with good durability and reliability. Whether in daily testing work or long-term use, they can maintain stable performance and provide you with quality service and support.
V. Wide range of applicable scenarios
(A) R&D center: material performance research and optimization
In the R&D center, the all-purpose Martindale kit can help researchers gain a deeper understanding of the wear-resistant properties of materials and provide important data support for the research and development of new materials. Through testing and comparing different materials and processes, researchers can continuously optimize material formulations and production processes to improve the wear resistance and quality stability of materials.
(ii) Production enterprises: product quality control and testing
For production enterprises, product quality is the lifeline of the enterprise. The all-round Martindale kit can be used as an important testing equipment in the quality management system of the enterprise, which is used to test and monitor the abrasion resistance of raw materials, semi-finished products and finished products. Through strict quality testing, it ensures that the products meet the relevant standards and customer requirements, and improves the market competitiveness of the enterprise.
(C) Testing organizations: third-party quality testing and certification
Testing organizations need to use accurate and reliable testing equipment to assess the performance of materials when carrying out third-party quality testing and certification work. With its high-precision testing performance and perfect supporting tools, the all-round Martindale kit can meet the strict requirements of testing organizations for material wear resistance testing, and provide customers with professional, fair and authoritative testing services.
Sixth, professional after-sales service and technical support
(A) Comprehensive training services
We provide users with comprehensive training services, including the operation and use of the instrument, maintenance, sample preparation and data analysis and other aspects of knowledge and skills training. Whether you are a first-time user or an experienced user, you can get professional guidance and help through our training, quickly master the use of the kit and improve work efficiency.
