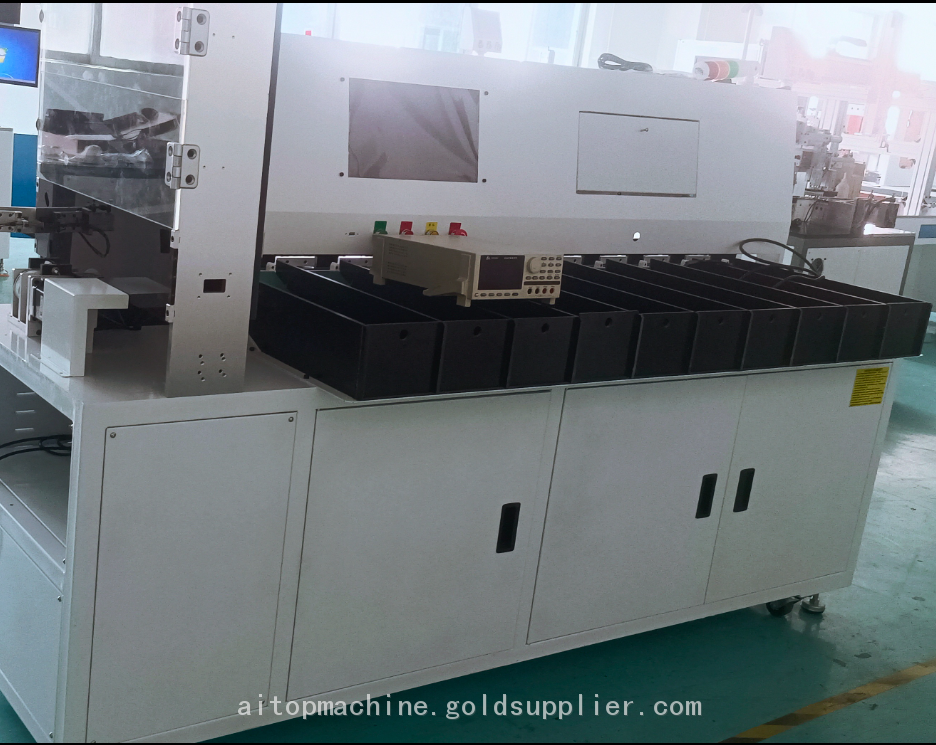

Cylinder 40135 33135 32140/33140 Li Ion Battery 5 Channels Battery Sorting Machine

is used for testing batteries and sorting them out into 10 grades by their voltage, currenct and impedance. Cells are fed by wooden boxes, tested and sorted by manipulators and then collected by hands. This makes test precisely and sort efficiently at more than 4000 pcs per hour. This procedure can also be connected to other assemle lines to form a whole full automatic assembly line for battery pack producing.

Common use all in one 32140 33140 33135 34135 battery sorting machine /33140 32140 Battery Label Labeling Sticker Machine Insulation Paper Pasting Machine

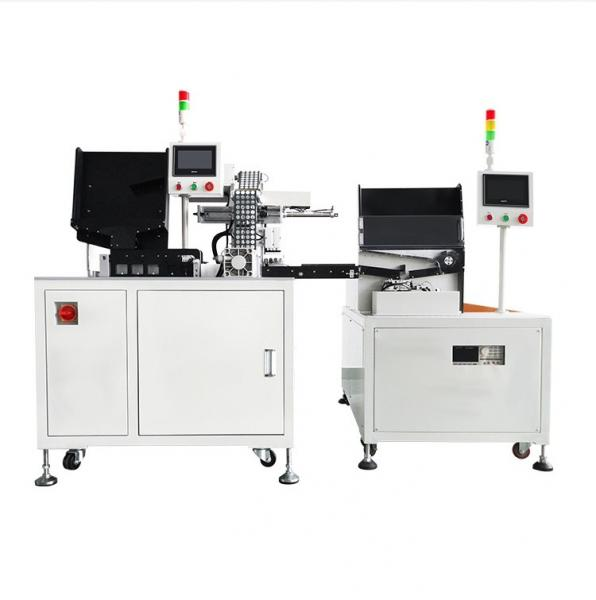

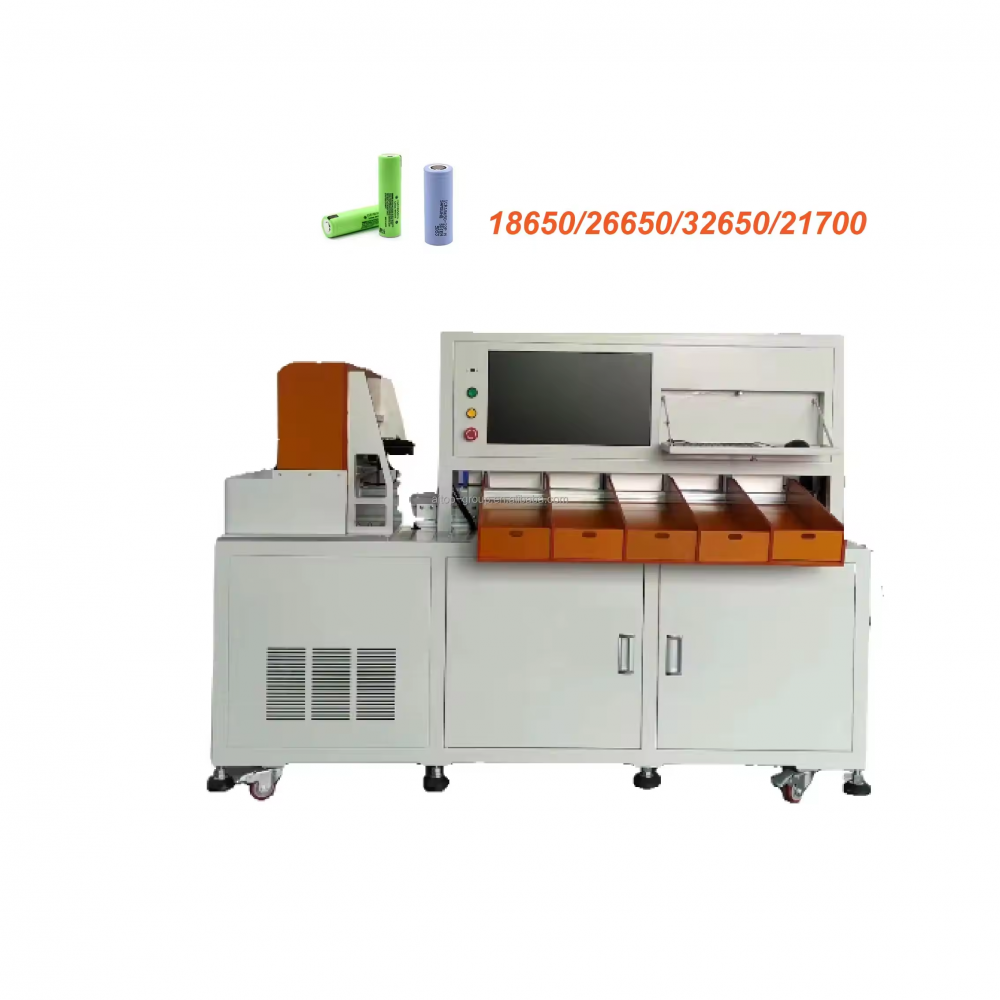

Battery Making Machine 2 In 1 For 18650/26650/32650 Lithium Battery Cells Sorting And Insulation Paper Sticking

Product Introduction

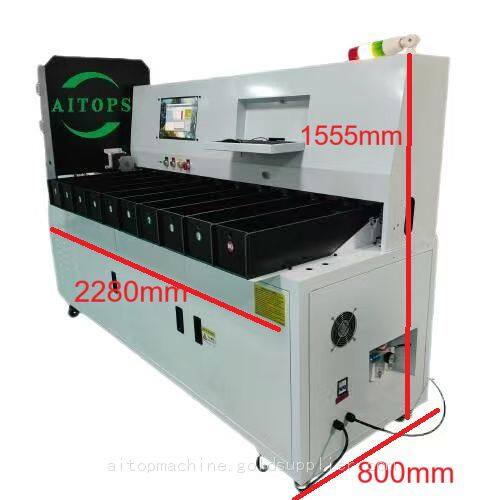

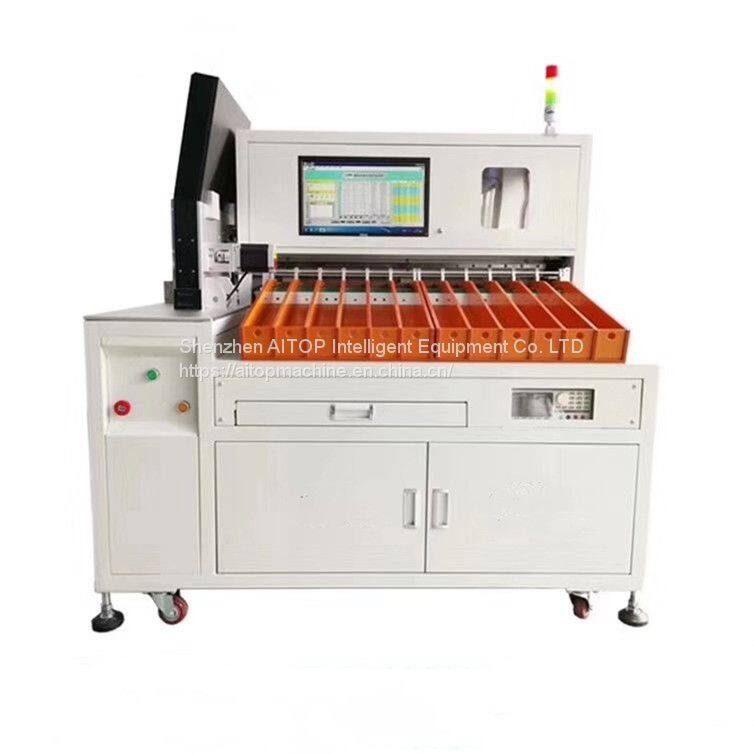

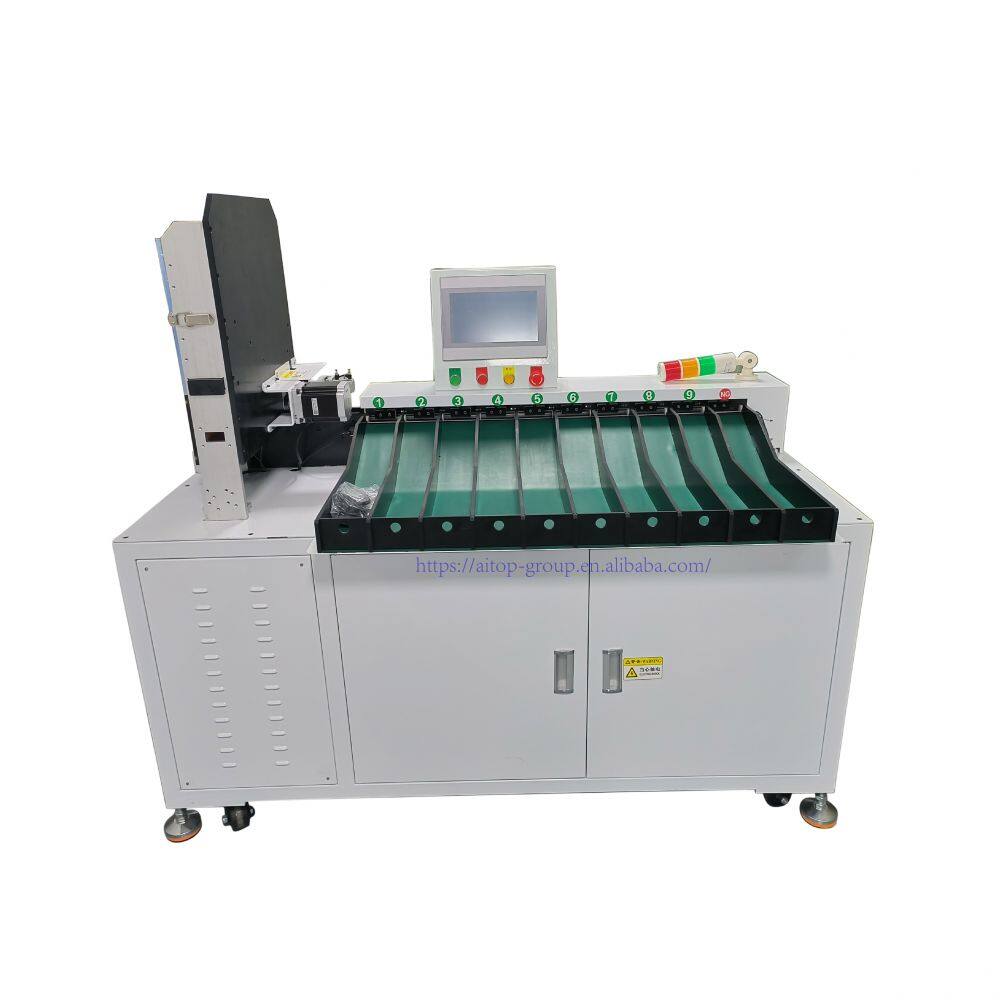

AITOP 40135 32140 33140 10ch 5 Channels Automatic Li ion Battery Sorting Machine With Barcode Scanner

Products Description

AITOP  Li ion battery sorting machine is a device used to sort the internal resistance and voltage of cylindrical lithium batteries. The tester adopts the Hioki 3561A/ option Hioki 3562 high-precision internal resistance and voltage active testing system, and comes with barcode scanning function. The testing results are analyzed by a computer to generate classified data, which can be queried, counted, and exported from historical testing data. This device sends the battery to the designated gear based on the internal resistance and voltage values set on the computer software. It adopts precise servo motor control and synchronous belt transmission, greatly improving the testing speed and stability of the testing data.

Parameters

Voltage Supply: Single-phase ~220V±10%/50Hz±10%, power <800W

Battery Types: 32140/33140(Replaceable Mold)

Receiving Channel: 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.

Test parameters: AC internal resistance, DC voltage.

Features

*Automatic sorting of voltage and internal resistance of cylindrical batteries such as 32140,33140;

*High precision, fast speed, high automation and high productivity;

*Touch screen operation, simple and quick response;

*The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability;

*Humanized handling of subtle links greatly ensures the safety of operators and products.

BatteryMachine ( battery sorting machine for batery cells group with similar voltage and resistance to battery pack, your battery packs will have a more longer life, and with the positive pole of the battery cell will be covered with insulating paper, your battery is more safer) #BATTERYTESTER #LFPBatteriestester #NMCbatterytester #EBikeBatteries #Energystorage #LFPNMCEBike #SolarNMCLFPBatteries AITOP manufacturers of batteries for Power bank, Solar,laptops,E-Vehicles, E-Bikes,E-Tools,toy,Mobile phones,Energy storage and etc.
We provide all kind of lithium battery pack assembly machines and solutions with good quality and services.
