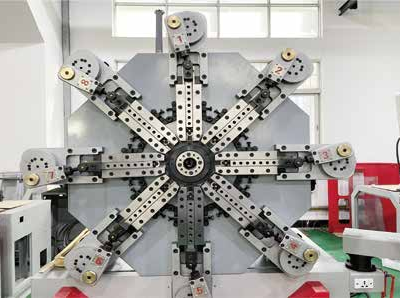

Help CenterUs-1040CNC Camless Spring Coiling Machine
Related Products
-
Us-508 High-speed Coil Spring Forming MachineUS$ 50000MOQ: 1 Piece -
Us-512 High-speed Coil Spring Forming MachineUS$ 50000MOQ: 1 Piece
-
Us-510 High-speed Coil Spring Forming MachineUS$ 50000MOQ: 1 Piece
-
Us-208 High-Speed CNC Spring Coiling MachineUS$ 50000MOQ: 1 Piece
-
Us-212 High-Speed CNC Spring Coiling MachineUS$ 50000MOQ: 1 Piece
Model |
US-1010 |
US-1025 |
US-236 |
US-1040 |
Wire Diameter |
Ø0.2～Ø1.0MM |
Ø0.3～Ø2.5MM |
Ø0.3～Ø2.5MM |
Ø1.0～Ø4.0MM |
Axis |
10~12 |
10~12 |
10~12 |
10-12 |

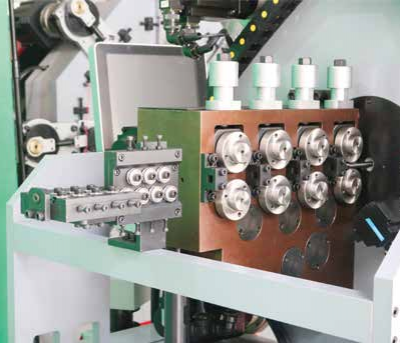

Wire Feed Wheel Sets |
1Set |
3Sets |
2Sets |
4Sets |
Slide Axis |
0.75KW×8 |
0.75KW×8 |
0.75KW×8 |
1.8KW×8 |
Quill Rotary Axis |
0.4 KW |
0.75KW |
0.75KW |
1.0 KW |
Wire Feeding Axis |
1.0KW |
2.7KW |
2.7KW |
5.5 KW |
Spinner Axis(Optional) |
0.4KW |
0.4KW |
0.4KW |
1.0KW |
Free Arm Axis(Optional) |
0.4KW |
0.4KW |
0.4KW |
1.0KW |
|
Dimension (LxWxH) |
1350x600x1550 (mm) |
1500x850x1750 (mm) |
1400x800x1750 (mm) |
1200x1700x2000 (mm) |
Weight (kg) |
500kg |
1100kg |
1100kg |
2000kg |
Machine features:
1. The machine adopts a camless design, which reduces the technical requirements for spring debugging and greatly reduces the setting time. It is at least 50% faster than using a cam machine to set up.
2. The machine uses Sanyo servo motors, high-precision reducers, bearings and gears to effectively guarantee the stable and high-energy operation of the machine and increase the machine's service life.
3.The machine is equipped with an industrial professional-grade computer operating system, multi-language display, easy-to-understand operation, rich functions, and can meet complex multi-task requirements.
3. The operating system has intelligent overload protection, automatic detection and alarm of wire feed rack disconnection, and the intelligent and sensitive protection module can provide effective protection for the safety of the operator and the spring machine.
