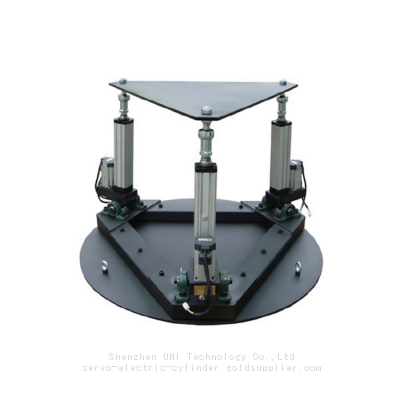

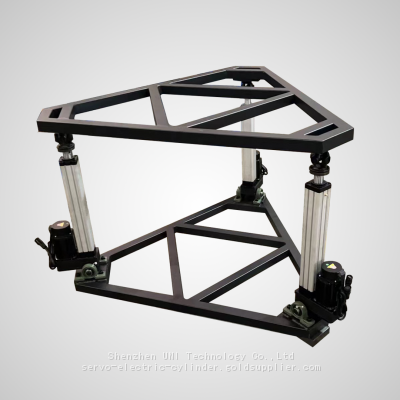

3DOF Electric Servo Actuator (3 axis) are equipped with controller. The custom control board can work with many games in Simtool. Among which, X-Plane, Dirt, iFactor are the most popular.
0-500mm/s adjustable high speed servo actuator with NSK bearing joints mounted fixed to frame. It have bigger payload and more balanced than 2DOF motion system. Besides, this setting allows more than 35 degrees of rotation in pitch,yaw,roll. 2G of acceleration is easy to make it. As a result, it is popular for motorcycle simulator and 9D Cinema seat. For 9D VR cinema, it will simulate the situation in the movie. So you will be empathize.
We will offer you an incredible virtual reality experience. Click our website for more details: /product/3dof-electric-servo-actuator-9d-vr-cinema/
Technical Date
| Product | UNI-3DOF Electric Servo Cylinder | UNI-3DOF Electric Servo Cylinder |
| Pitch/Screw Lead(mm) | 5 | 10 |
| Payload(KG) | 500 | 250 |
| Max Stroke(mm) | 2000 | 2000 |
| Max Speed(mm/s) | 333 | 500 |
| Roll/Pitch/Yaw(Cont.) | ±30° | ±30° |
| Acceleration | 2g | 2g |
| Precision | ±0.1° | ±0.1° |
Q1. Does UNI 3dof stewart platform comes along with control system?
A1: Yes. Our controller can integrate any actuators type for every control software. It covers 100% customer needs worldwide.
Q2. What game engine can your controller compatible with?
A2: Many of them like Unreal, Simtools,Unity,etc.
Q3. What is your price about ready to ship simulator ?
A9: Well, that’s depends on your detail requirements. The price differs a lot based on the payload, stroke and speed. Please contact us for more details if you are interested in it.
