Custom 6DOF Motion Platform

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port SHENZHEN
Payment TermsT/T Western Union
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UNI		Place of Origin	China
Model Number	UNI-6DOF

Product Description

Description

Custom 6DOF Motion Platform AMC-AASD15A Servo Drive Controller for you.

Nowadays, 6DOF simulators are a popular trend in various fields such as entertaining, training, educating, etc. It has provoked extensive interest worldwide.

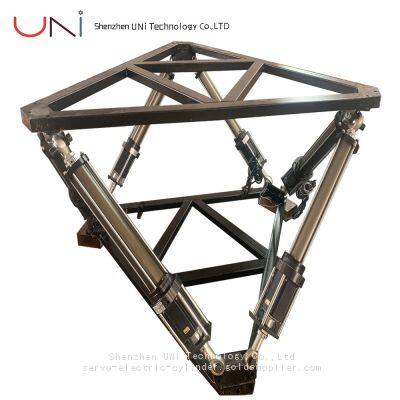

UNI 6DOF motion platform composes of six servo actuators with universal joints, upper and lower platform. Six degrees of freedom(X, Y, Z, α, β, γ) can simulate different space motion. For example, if you are trying to build a racing simulator, then you just need to assemble some hardware above it like steering wheels, screen, seat, paddles and other parts. In this way, you can get yourself a professional set up. What’s more, you will get the most advanced and immersive racing experience.

Furthermore, our 6 DOF servo actuators are compatible with Thanos AMC-AASD15A controller RGB. It is quite popular in entertaining field like building racing and flight simulator. This controller are accessible to many game software,which save you many energy. As a result, our custom 6DOF AMC-AASD15A Servo Drive Controller solution covers 100% customers’ needs

Click our website for more details: /product/uni-4dof-simulator-actuator-with-aasd-15a-controller/

Technical Date

Payload: 250KG
Frequency: f≥5Hz
Index as the table below:

Product	Angle	Speed	Accelaration	Precision
Roll	+/- 30°	0-35°/s	0-300°/s	+/- 0.1°
Pitch	+/- 30°	0-35°/s	0-300°/s	+/- 0.1°
Yaw(Cont.)	+/- 30°	0-35°/s	0-300°/s	+/- 0.1°
Surge	+/-300mm	500mm/s	2g max	/
Sway	+/-300mm	500mm/s	2g max	/
Heave	+/-300mm	500mm/s	2g max	/

Q1. Does UNI 6dof stewart platform comes along with control system?
A1: Yes. Our servo actuators can be controlled by Thanos AMC-AASD15A controller RGB. It covers 100% customer needs worldwide.

Q2. What game engine can your controller compatible with?
A2: This controller is compatible with many game software like Simhun-motion,Sim Racing Studio,Simtools,FlyPT Mover,etc.

Q3. What is your price about ready to ship simulator ?
A9: Well, that’s depends on your detail requirements. The price differs a lot based on the payload, stroke and speed. Please contact us for more details if you are interested in it.
