Help CenterUNI 4DOF Simulator Actuator Kit With AASD-15A Controller
Related Products
-
Custom 6DOF Motion PlatformNegotiableMOQ: 1 Piece -
6DOF Full Motion Platform System Hexapod Platform With Universal Joint on Both Ends for Entertaining SimulatorNegotiableMOQ: 1 Piece
-
6DOF Stewart Motion Platform Small Size for Training SimulatorNegotiableMOQ: 1 Piece
-
DIY 6DOF Motion Platform With AASD15A DriveNegotiableMOQ: 1 Piece
-
3DOF Motion Platform for Simulator 9D VR CinemaNegotiableMOQ: 1 Piece

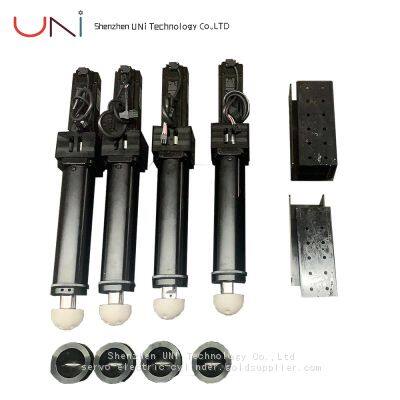

4DOF Simulator Actuator with AASD-15A controller is made by Thanos. Our 4DOF servo actuators are with custom floor contacts. It fixes the actuators to the ground. Also, the bracket will be attached to the simulator frame together.
UNI Simulator rig are intend for 9d VR racing simulator. It is quick in response and fast in velocity. What’s more, the whole rig offers bigger payload. The high frequency and acceleration allows you an immersive VR experience. We can provide you a controller from drive to your PC. What you need to do is to operate the game.
4DOF motion system with roll, pitch, yaw, and sway which allows you to feel the limit of adhesion, understeer/oversteer, terrain changes such as hills, banking, curbing, bumps, camber, and both left/right and fore/aft weight transfer in a motion simulator like you have never felt in a sim.
Click our website for more details: /product/uni-4dof-simulator-actuator-with-aasd-15a-controller/
| Product | UNI-4DOF | UNI-4DOF |
| Pitch/Screw Lead(mm) | 5 | 10 |
| Payload(KG) | 500 | 250 |
| Max Stroke(mm) | 2000 | 2000 |
| Max Speed(mm/s) | 333 | 500 |
| Roll/Pitch/Yaw(Cont.) | ±30° | ±30° |
| Acceleration | 2g | 2g |
| Precision | ±0.1° | ±0.1° |
Q1. How much payload do I need for 4DOF simulator rig?
A1: We have to consider a person, frame and cockpit weight. Heavy weight comes along with high moment of inertia. As a result, safety magin is needed. It is recommend to choose platform that can handle twice the real payload.
Q2. Does 100kg are enough for 4 DOF actuators?
A2: Well, if the platform tilt to one side, then the payload will exert to one actuator. As a result, 100kg load of single actuator are far from enough.
Q3. Can you provide a plug and play solution?
A3: Yes, we can provide you simulator kit with controller integrated. Our 4DOF Car Simulator Actuator-AMC AASD15A controller by Thanos, which can connect to Simhub-motion,Sim Racing Studio,FlyPT Mover,Simtools.
Different softwares, protocols, connections, expertise will also be applied. We have engineer team to instruct installation. Furthermore, on-site debugging is available.
Q4. What is the lead time of your UNI 4DOF Simulator Actuator？
A4: Normally, 7 days are fine for the completion.
