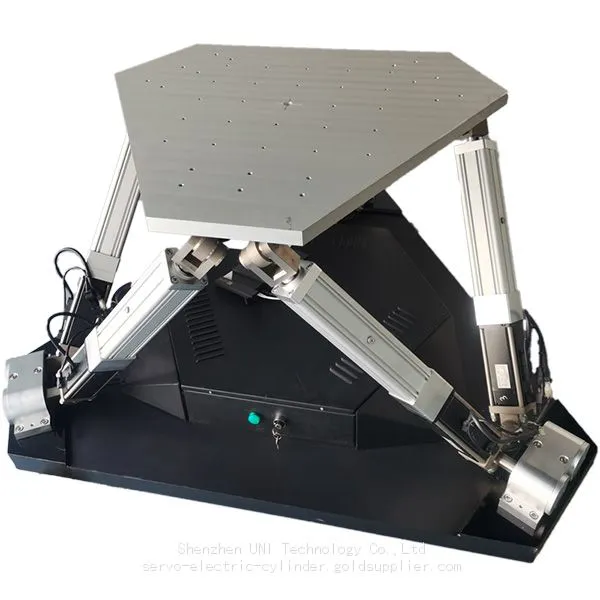

6DOF Stewart Motion Platform(6 axis) are equipped with controller. The custom control board can work with many games in Simtool. Among which, X-Plane, Dirt, iFactor are the most popular.
500mm/s high speed servo actuator with Universal joints mounted on both ends. This setting above can reach 35 degrees of rotation in pitch,yaw,roll. 2G of acceleration is easy to make it. What’s more, the precision of the 6 axis motion platform are +/- 0.1 degree.
We has traing/education/entertainment simulator ready to ship as well. Please contact us for more details as well as shipping cost check.
Click our website for more details: /product/uni-servo-actuator-with-6dof-stewart-motion-platform-for-training-simulator/
Technical Date(6DOF Full Motion Platform System)
| Product | UNI-6DOF | UNI-6DOF |
| Pitch/Screw Lead(mm) | 5 | 10 |
| Payload(KG) | 500 | 250 |
| Max Stroke(mm) | 2000 | 2000 |
| Max Speed(mm/s) | 333 | 500 |
| Roll/Pitch/Yaw(Cont.) | ±35° | ±35° |
| Acceleration | 2g | 2g |
| Precision | ±0.1° | ±0.1° |
| Servo motor rated power (W) | 400W | with AASD-15A drive; with encoder and cable |
| Servo motor voltage | 220V AC | Single Phase |
FAQ
Q1. Does 6DOF Stewart Motion Platform comes along with control system?
A1: Yes. Our controller can integrate any actuators type for every control software. It covers 100% customer needs worldwide.
Q2. What game engine can your controller compatible with?
A2: Many of them like Unreal, Simtools,Unity,etc.
Q3. What is your price about ready to ship simulator ?
A9: Well, that’s depends on your detail requirements. The price differs a lot based on the payload, stroke and speed. Please contact us for more details if you are interested in it.
