Three Phase 50Hz 380V Stc 10kw 12.5kVA AC Brush Alternator

Three Phase 50Hz 380V Stc 10kw 12.5kVA AC Brush Alternator photo-1

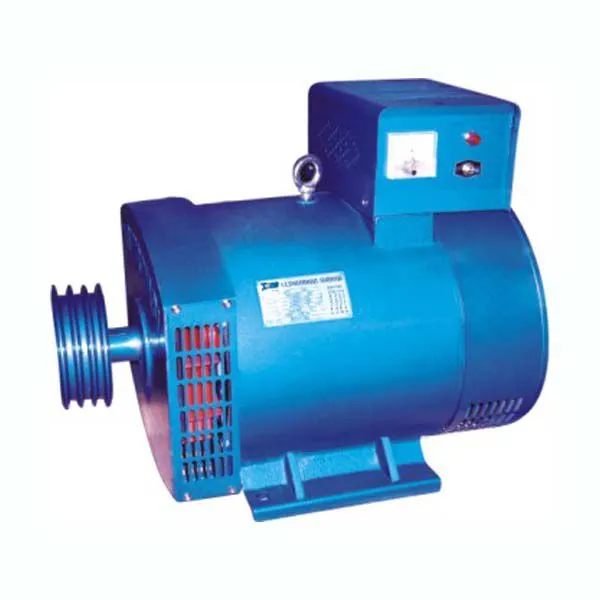

Three Phase 50Hz 380V Stc 10kw 12.5kVA AC Brush Alternator photo-2

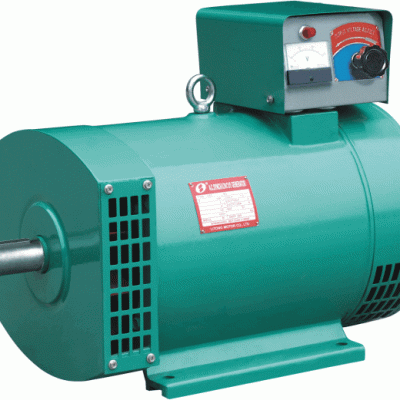

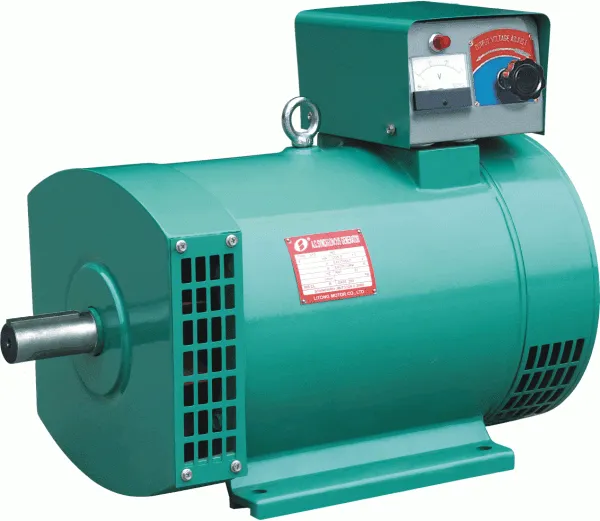

Three Phase 50Hz 380V Stc 10kw 12.5kVA AC Brush Alternator photo-3
US$ 100 - 350 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
SINOSTAR
Place of Origin:
China
Model Number:
ST STC
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
30 days
Brand Name SINOSTAR
Place of Origin China
Model Number ST STC

Three Phase 50Hz 380V Stc 10kw 12.5kVA AC Brush Alternator

ST/STC series generators are mainly designed to serve as power generating unit of small capacity, which supply electricity for lighting purpose in ships, for house-hold electric devices used in towns or villages. The construction of the generators is of dripproof, salient pole rotating field self excitation and constant voltage type. The alternator interior is used with high quality electric magnetic and electrical materials. Stator insulation is class B. These generators are elegant in appearance, tight in construction and easy maintain. IEC standard are adopted on dimension, these dimension are suitable for using in Australia, Europe, America and other countries with the end covers to be model B.

Technical Data

ModelOutput
(kW)
Current(A)Voltage(V)Power factor
(cos)
Pole numberSpeed
(r.p.m)
Series ConnectionParallel ConnecionSeries ConnectionParallel Connection
ST-114.358.72301151.041500
ST-228.717.42301151.041500
ST-3313262301151.041500
ST-5521.843.52301151.041500
ST-7.57.532.665.22301151.041500
ST-101043.5872301151.041500
ST-121252.21042301151.041500
ST-151565.31302301151.041500
ST-2020871742301151.041500
ST-24241042082301151.041500



ModelOutput (kW)Voltage(V)Current (A)Power factor
(cos)
Pole numberSpeed
(r.p.m)
KVAkW
STC-33.834005.40.815004
STC-56.3540090.815004
STC-7.59.47.540013.50.815004
STC-810840014.40.815004
STC-1012.51040018.10.815004
STC-12151240021.70.815004
STC-1518.81540027.10.815004
STC-20252040036.10.815004
STC-24302440043.30.815004
STC-3037.53040054.10.815004
STC-40504040072.20.815004
STC-5062.55040090.20.815004


Product Tags: 10kw alternator , STC alternator , BRUSH ALTERNATOR , ac alternator , three phase alternator , 380v alternator , 12.5kva alternator
