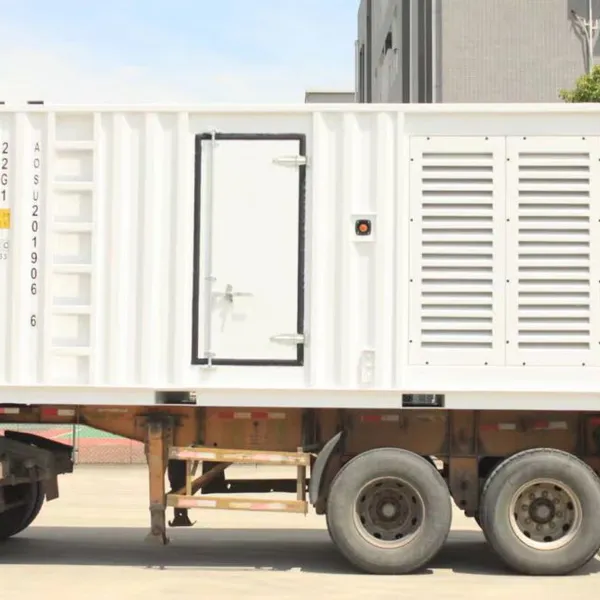

400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator

400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator thumbnail-1
400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator thumbnail-2
400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator photo-1
400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator photo-2
US$ 10000 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BAUDOUIN
Place of Origin:
China
Model Number:
SP-BD
Contact Supplier Request Quote Chat Now
Fuzhou Sinostar Power Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BAUDOUIN
Place of Origin China
Model Number SP-BD
Rated Current 500-3600A
Output Type AC Three Phase
Speed 1500/1800RPM
Frequency 50/60HZ
Rated Voltage 380-440V
Rated Power 280kw - 2000kw

400kw 500kw 600kw 720kw 800kw 900kw 1000kw 50Hz Silent Diesel Power Generator

1.PRODUCT Feature
power output:20KW~1380KW
Powered by water-cooled diesel engine
Alternator:Stanford,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
 with two storage battery and silencer
 Fuel tank for 8 H running based on frame
1 year or  1000 H guarantee

2.Technical specifications( 20KW~1380KW )

SPECIFICATION SHEET FOR 50HZ GENERATOR SETS
(1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8)
Generator Set Model Prime Power Standby Power Engine Maximum current(A)
Prime Standby KW KVA KW KVA MODEL  Power (kw)
SP-C20P-1 SP-C22S-1 20 20 22 22 4B3.9-G1 24-27 96
SP-C20P-1 SP-C22S-1 20 20 22 22 4B3.9-G2 24-27 96
SP-C25P SP-C28S 20 25 22 27.5 4B3.9-G1 24-27 40
SP-C28P SP-C30S 22 27.5 24 30 4B3.9-G2 24-27 43
SP-C40P SP-C44S 32 40 35 44 4BT3.9-G1 36-40 64
SP-C40P SP-C44S 32 40 35 44 4BT3.9-G2 36-40 64
SP-C43P SP-C48S 34 42.5 40 50 4BTA3.9-G2 50-55 72
SP-C50P SP-C55S 40 50 44 55 4BTA3.9-G2 50-55 79
SP-C56P SP-C62S 45 56 50 62 4BTA3.9-G2 50-55 89
SP-C60P SP-C65S 48 60 52 65 4BTA3.9-G2(QC58) 58-64 94
SP-C65P SP-C70S 52 65 56 70 4BTA3.9-G2(QC58) 58-64 101
SP-C73P SP-C80S 58 72.5 64 80 4BTA3.9-G11 70-80 115
SP-C80P SP-C85S 64 80 68 85 4BTA3.9-G11 70-80 123
SP-C85P SP-C93S 68 85 74 92.5 4BTA3.9-G13 87-97 134
SP-C85P SP-C93S 68 85 74 92.5 6BT5.9-G1 86-92 134
SP-C95P SP-C105S 76 95 84 105 4BTA3.9-G13 87-97 152
SP-C94P SP-C100S 75 94 80 100 6BT5.9-G1 86-92 144
SP-C100P N.A 80 100 N.A N.A 4BTA3.9-G13 87-97 144
SP-C100P N.A 80 100 N.A N.A 6BT5.9-G2 86-92 144
SP-C100P SP-C110S 80 100 88 110 4BTAA3.9-G3 96-106 159
SP-C100P SP-C110S 80 100 88 110 6BT5.9-G2(QC96) 96-106 159
SP-C115P SP-C125S 92 115 100 125 6BTA5.9-G2 106-116 180
SP-C135P SP-C143S 108 135 116 145 6BTAA5.9-G2 120-130 209
SP-C155P SP-C170S 124 155 136 170 6BTAA5.9-G12 140-155 245
SP-C180P SP-C200S 145 180 160 200 6CTA8.3-G1 163-180 289
SP-C180P SP-C200S 145 180 160 200 6CTA8.3-G2 163-180 289
SP-C200P SP-C215S 160 200 172 215 6CTAA8.3-G2 183-203 310
N.A. SP-C250S N.A. N.A. 200 250 6CTAA8.3-G9 361
SP-C225P SP-C250S 180 225 200 250 6LTAA8.9-G2 220-240 361
SP-C250P SP-C275S 200 250 220 275 6LTAA8.9-G3 230-250 397
SP-C275P SP-C313S 220 275 250 313 6LTAA9.5-G3 250-280 452
SP-C313P SP-C350S 250 312.5 280 350 6LTAA9.5-G1 290-320 505
SP-C350P SP-C390S 280 350 310 390 6ZTAA13-G3 340-380 563
SP-C375P SP-C413S 300 375 330 413 6ZTAA13-G3 340-380 596
SP-C388P SP-C425S 310 388 340 425 6ZTAA13-G3 340-380 613
SP-C400P SP-C438S 320 400 350 437.5 6ZTAA13-G2 390-415 631
SP-C425P SP-C475S 340 425 380 475 6ZTAA13-G2 390-415 686
SP-C438P SP-C475S 350 438 380 475 6ZTAA13-G4 400-415 686
SP-C438P SP-C475S 350 438 380 475 QSZ13-G2 400-440 686
SP-C450P SP-C500S 360 450 400 500 QSZ13-G5 411-470 722
SP-C475P SP-C500S 380 475 400 500 QSZ13-G3 450-470 722
SP-C500P SP-C550S 400 500 440 550 QSZ13-G10 463-509 794
SP-C250P SP-C275S 200 250 220 275 NT855-GA 231-254 397
SP-C250P SP-C275S 200 250 220 275 MTA11-G2 224-246 397
SP-C250P SP-C275S 200 250 220 275 NTA855-G1 240-264 397
SP-C250P SP-C275S 200 250 220 275 QSNT-G6 243-265 397
SP-C275P SP-C313S 220 275 250 313 QSNT-G7 261-291 452
SP-C275P SP-C313S 220 275 250 313 NTA855-G1A 261-291 452
SP-C313P SP-C340S 250 313 272 340 MTAA11-G3 282-310 491
SP-C313P SP-C350S 250 313 280 350 NTA855-G1B 283-321 505
SP-C313P SP-C350S 250 313 280 350 QSNT-G1 291-325 505
SP-C345P SP-C375S 275 345 300 375 NTA855-G2A 313-343 541
SP-C350P SP-C390S 280 350 310 390 NTA855-G4 313-343 563
SP-C350P SP-C390S 280 350 310 390 QSNT-G2 321-358 563
SP-C375P SP-C400S 300 375 320 400 NTAA855-G7 343-377 577
SP-C400P SP-C438S 320 400 350 437.5 QSNT-G3 358-392 631
N.A. SP-C450S N.A. N.A. 360 450 NTAA855-G7A 650
SP-C375P SP-C412S 300 375 330 412 KTA19-G2 336-369 595
SP-C450P SP-C500S 360 450 400 500 QSNT-G4X 407-448 722
SP-C450P SP-C500S 360 450 400 500 KTA19-G3 403-448 722
SP-C450P SP-C500S 360 450 400 500 QSK19-G14 402-447 722
SP-C500P SP-C550S 400 500 440 550 KTA19-G3A 448-504 794
SP-C500P SP-C550S 400 500 440 550 KTA19-G4 448-504 794
SP-C500P SP-C550S 400 500 440 550 QSK19-G13 451-501 794
SP-C525P SP-C600S 420 525 480 600 KTAA19-G5 470-555 866
N.A. SP-C650S N.A. N.A. 520 650 KTA19-G8 938
SP-C575P SP-C650S 460 575 520 650 KTAA19-G6 520-570 938
SP-C575P SP-C630S 460 575 504 630 QSK19-G12 503-565 909
SP-C588P SP-C650S 470 588 520 650 QSK19-G6 520-592 938
SP-C600P SP-C650S 480 600 520 650 KTAA19-G6A 938
N.A. SP-C687S N.A. N.A. 550 687 KTAA19-G6A 992
N.A. SP-C687S N.A. N.A. 550 687 KTAA19-G7 992
SP-C650P SP-C700S 520 650 560 700 QSK19-G4 574-634 1010
SP-C660P SP-C725S 528 660 580 725 QSK19-G11 606-667 1046
SP-C660P SP-C725S 528 660 580 725 QSK19-G11X 606-667 1046
SP-C625P SP-C700S 500 625 560 700 KT38-G 560-615 1010
SP-C712P SP-C787S 570 712 630 787 KTA38-G1 634-701 1136
SP-C725P SP-C800S 580 725 640 800 KT38-GA 647-711 1155
SP-C750P SP-C825S 600 750 660 825 KTA38-G2 664-731 1191
SP-C750P SP-C825S 600 750 660 825 QSK38-G8 657-730 1191
SP-C800P SP-C880S 640 800 704 880 KTA38-G2B 711-789 1270
SP-C800P SP-C880S 640 800 704 880 QSK38-G7 705-783 1270
SP-C910P SP-C1000S 728 910 800 1000 KTA38-G2A 813-895 1443
SP-C910P SP-C1000S 728 910 800 1000 QSK38-G6 791-878 1443
SP-C940P SP-C1025S 752 940 820 1025 KTA38-G5 880-970 1480
SP-C1000P SP-C1100S 800 1000 880 1100 KTA38-G5 880-970 1588
SP-C1000P SP-C1100S 800 1000 880 1100 QSK38-G1 876-970 1588
N.A. SP-C1250S N.A. N.A. 1000 1250 KTA38-G9 1804
SP-C1135P SP-C1250S 908 1135 1000 1250 QSK38-G2 989-1096 1804
SP-C1250P SP-C1375S 1000 1250 1100 1375 QSK38-G5 1107-1224 1985
SP-C1250P SP-C1375S 1000 1250 1100 1375 KTA50-G3 1097-1227 1985
SP-C1375P SP-C1600S 1100 1375 1280 1600 KTA50-G8 1200-1429 2309
SP-C1375P SP-C1500S 1100 1375 1200 1500 QSK38-G19 1212-1334 2165
SP-C1475P SP-C1600S 1180 1475 1280 1600 KTA50-GS8 1287-1429 2309
SP-C1650P SP-C1800S 1320 1650 1440 1800 KTA50-G15 1491-1656 2598


Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
