Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator thumbnail-1
16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator thumbnail-2
16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator thumbnail-3
16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator photo-1

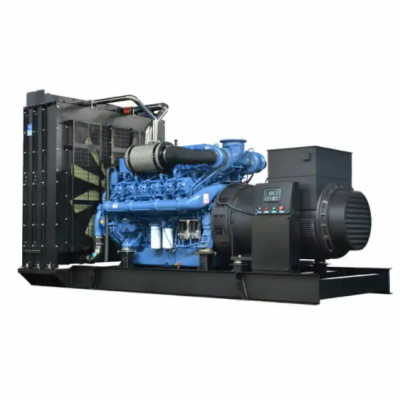

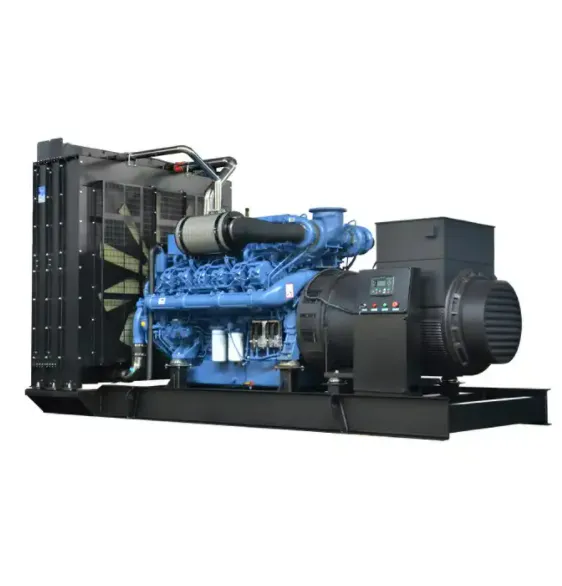

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator photo-2

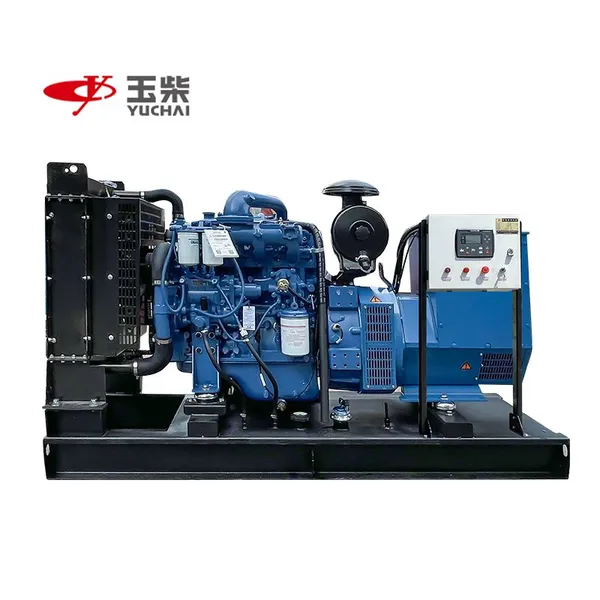

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator photo-3
US$ 10000 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YUCHAI
Place of Origin:
China
Model Number:
SP-YC
Contact Supplier Request Quote Chat Now
Fuzhou Sinostar Power Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
FUZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUCHAI
Place of Origin China
Model Number SP-YC
Rated Current 500-3600A
Output Type AC Three Phase
Speed 1500/1800RPM
Frequency 50/60HZ
Rated Voltage 380-440V
Rated Power 20kVA~2750kVA

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator

1.PRODUCT Feature
power  OUTPUT 20KVA TO 2750KVA
Powered by YUCHAI  water-cooled diesel engine
Alternator: MECCALTE,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
 with two storage battery and silencer
 Fuel tank for 8 H running based on frame
1 year or  1000 H guarantee

2-Techincal specifications(16-2200kw)

1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8
Generator Set Model Prime Power Standby Power Engine Maximum current(A)
Prime Standby KW KVA KW KVA YUCHAI Power(kw)
SP-Y20P SP-Y22S 16 20 17.6 22 4D24G4/A 18.5-20.4 32
SP-Y25P SP-Y28S 20 25 22 27.5 4D24G2/A 23-25.4 40
SP-Y30P SP-Y30S 24 30 24 30 4D24TG2/A 28-30.8 43
SP-Y38P SP-Y41S 30 37.5 33 41 4D24TG0/A 36-39.6 59
SP-Y40P SP-Y44S 32 40 35 44 YC4D60-D21 40-44 64
SP-Y43P SP-Y48S 34 42.5 40 50 YC4D60-D21 40-44 72
SP-Y60P SP-Y66S 48 60 52 66 YC4D90Z-D21 60-66 95
SP-Y73P SP-Y80S 58 72.5 64 80 YC4A100Z-D20 70-73.5 115
SP-Y85P SP-Y93S 68 85 74 92.5 YC4D120-D31 80-88 134
SP-Y100P SP-Y110S 80 100 88 110 YC4A140L-D20 95-105 159
SP-Y113P SP-Y125S 90 113 100 125 YC4D155-D31 103-113 180
SP-Y125P SP-Y138S 100 125 110 137.5 YC4A180L-D20 120-132 198
SP-Y150P SP-Y165S 120 150 132 165 YC6B205L-D20 138-152 238
SP-Y175P SP-Y193S 140 175 154 192.5 YC6A245L-D21 165-181.5 278
SP-Y188P SP-Y207S 150 188 165 207 YC6A245L-D21 165-181.5 299
SP-Y200P SP-Y220S 160 200 176 220 YC6A275-D30 185-203 318
SP-Y250P SP-Y275S 200 250 220 275 YC6MK350L-D20 235-238.5 397
SP-Y313P SP-Y344S 250 313 275 344 YC6MK420L-D20 281-3.9 497
SP-Y350P SP-Y385S 280 350 308 385 YC6MJ480L-D20 321-352 556
SP-Y375P SP-Y413S 300 375 330 412.5 YC6K500-D31 335-370 595
SP-Y400P SP-Y440S 320 400 352 440 YC6K520-D30 356-382 635
SP-Y450P SP-Y500S 360 450 400 500 YC6K600-D30 401-441 722
SP-Y500P SP-Y550S 400 500 440 550 YC6T660L-D20 441-485 794
SP-Y563P SP-Y625S 450 563 500 625 YC6TD780-D31 520-572 902
SP-Y625P SP-Y688S 500 625 550 688 YC6TD840-D31 561-616 993
SP-Y688P SP-Y750S 550 688 600 750 YC6TD900-D31 605-665 1083
SP-Y750P SP-Y825S 600 750 660 825 YC6TD1000-D30 668-735 1191
SP-Y913P SP-Y1000S 730 913 800 1000 YC6C1220-D31 815-819 1443
SP-Y1000P SP-Y1100S 800 1000 880 1100 YC6C1320-D31 880-968 1588
SP-Y1125P SP-Y1250S 900 1125 1000 1250 YC6C1520-D31 1016-1118 1804
SP-Y1250P SP-Y1375S 1000 1250 1100 1375 YC6C1660-D30 1110-1221 1985
SP-Y1250P SP-Y1375S 1000 1250 1100 1375 YC12VTD1680-D30 1120-1230 1985
SP-Y1375P SP-Y1500S 1100 1375 1200 1500 YC12VTD1830-D30 1220-1342 2165
SP-Y1500P SP-Y1650S 1200 1550 1320 1650 YC12VTD2000-D30 1345-1480 2382
SP-Y1650P SP-Y1770S 1320 1650 1416 1770 YC12VC2270-D31 1520-1670 2555
SP-Y1900P SP-Y2000S 1520 1900 1600 2000 YC12VC2510-D31 1680-1850 2887
SP-Y2000P SP-Y2200S 1600 2000 1760 2200 YC12VC2700-D31 1805-1985 3176
SP-Y2200P SP-Y2360S 1760 2200 1888 2360 YC16VC3000-D31 2005-2206 3406
SP-Y2500P SP-Y2700S 2000 2500 2160 2700 YC16VC3300-D31 2205-2426 3897
SP-Y2750P SP-Y2900S 2200 2750 2333 2916 YC16VC3600-D31 2405-2646 4209


Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to the earlier
one.Service and parts are available from distributors in your location.


Product Tags: DIESEL GENERATOR , silent GENERATOR , silent diesel Generator , yuchai , GENERATOR , 50hz generator , 100KW GENERATOR , 20KW GENERATOR , 80KW GENERATOR
