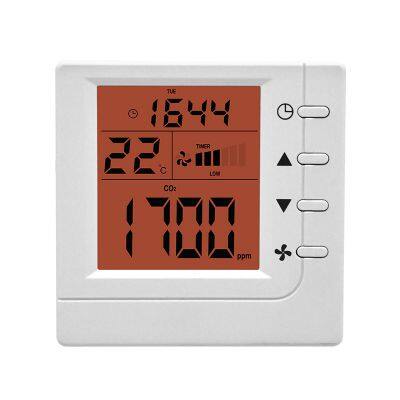

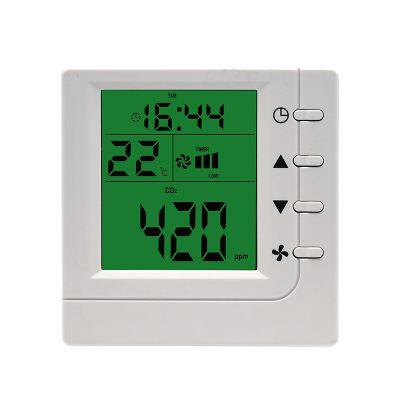

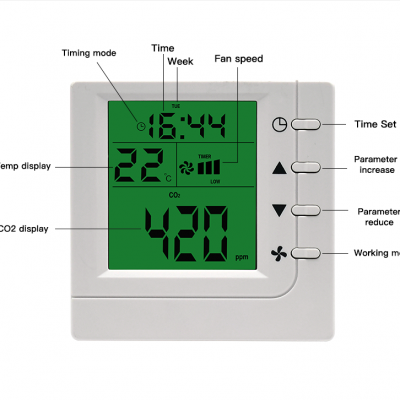

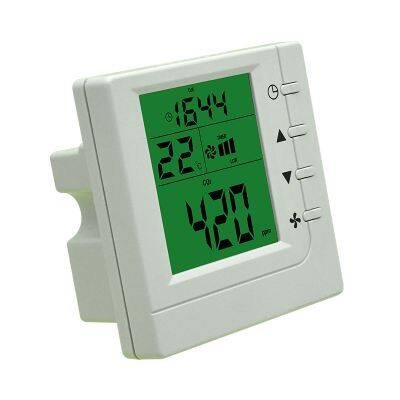

Real Time Monitoring Air Quality Data Temperature and CO2 RS485 Ventilation System Fresh Air Controller

Introduction:

Fresh Air intelligent controller (KF-800F) can monitor real-time indoor temperature, CO2 concentration. Controller output signal can directly control the startup and speed of ventilator. It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment.

Specification：

* Dimension: 86×86×40mm

* Warm-up time: 1 minute

* Fixing hole distance: 60mm(standard)

* Response time: ≤10 seconds

* Wiring terminal: Max 2.5 mm2 wire

* Recovery time: ≤30 seconds

* Rated voltage: AC220V 50Hz

* Operating temperature:  -10℃ --- +50℃

* Standby Power: ≤0.5W

* Operating humidity: 5％RH——90％RH

* Control power: ≤200W

* Storage temperature: -10℃ --- +60℃

* Output interface: Three-speed ventilator

* Storage humidity: ≤60％RH

* Temperature display range: 0℃——50℃

* Life: ≥10 years

* CO2 display range: 350ppm——3000ppm
