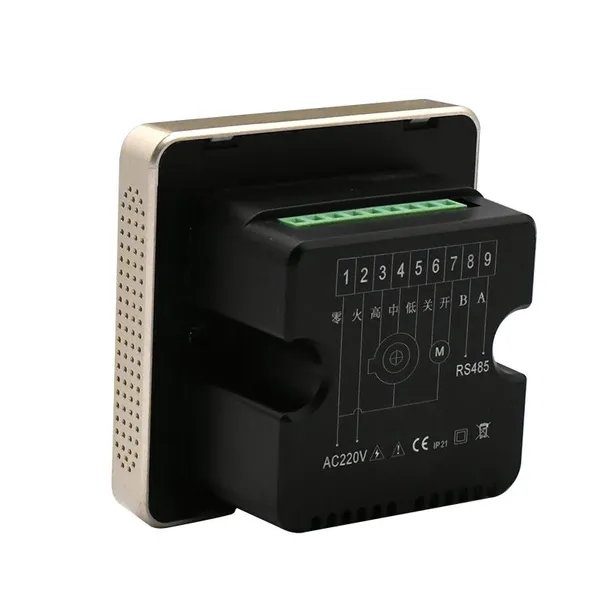

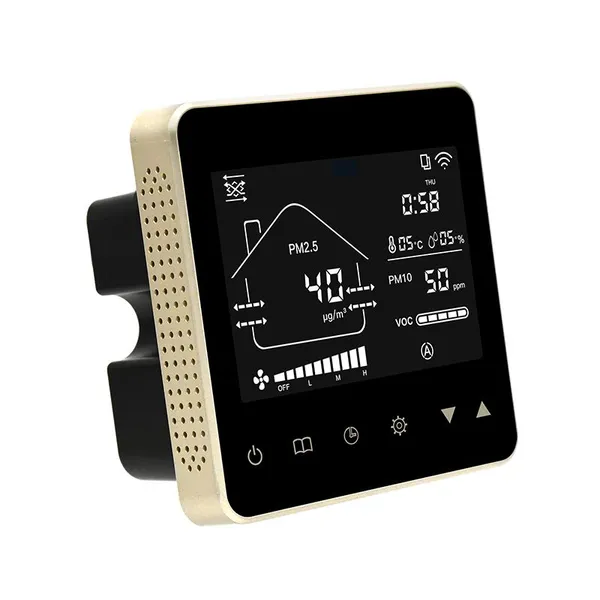

HRV Heat Recovery Ventilation Controller With Wifi RS485 Remote Control Ventilation System Fan Controller

Introduction:

Fresh Air intelligent controller (KF-900A-Y2) adopts touch key technology, which is flexible and convenient to operate. The built-in sensors of the controller can monitor the indoor temperature, humidity, VOC, PM2.5 and CO2 concentration in real time. The output signal of the controller directly controls the startup and speed of fan. It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality, create a healthy, comfortable, energy-efficient living and working environment.

Technical parameter:

* Dimension: 86×86mm

* Preheating time: 1 minute

* Fixing hole distance: 60mm(standard)

* Response time: ≤ 10 seconds

* Wiring terminal: Max 2.5 mm2 wire

* Recovery time: ≤ 30 seconds

* Rated voltage: AC220V, 50Hz

* Working temperature: -10 ℃ -+50 ℃

* Standby Power: ≤2.0W

* Working humidity: 5％RH——90％RH(No condensation)

*Control power: ≤ 200W

* Storage temperature: -10 ℃ -+60 ℃

*Output interface: 3 speed fan

* Storage humidity: ≤ 60% RH

*Temperature display range: 0 ℃ -50 ℃

* Life ≥ 10 years

*PM2.5 display range: 1ug/m3 -- 999ug/m3
