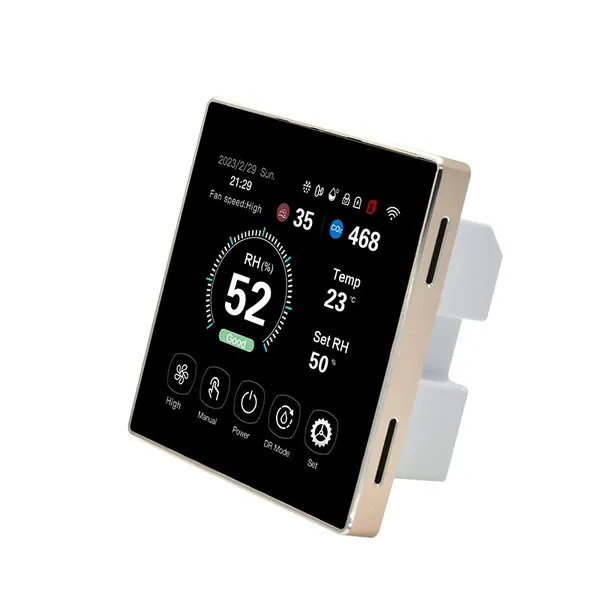

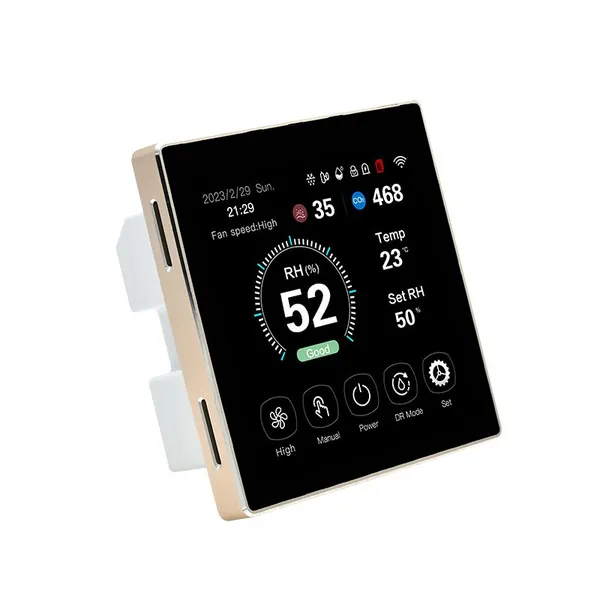

4 Inch LCD Color Screen Ventilation System Control Plus Dehumidification Control Smart Controller

Overview

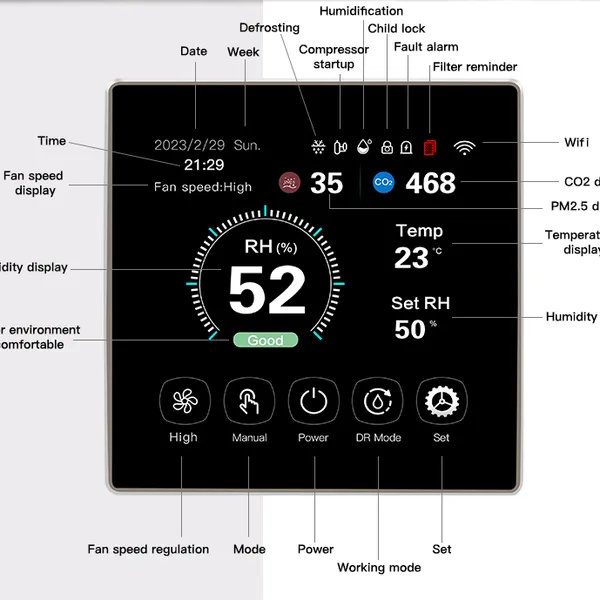

G6-X-XFCS dehumidifier intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 in real time (optional); It can be connected to WIFI (optional), with ModBus RTU (RS485) interface. Users can connect to the background of smart home and others through ModBus interface to realize monitoring of equipment status.

It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality, create a healthy, comfortable, efficient, environmentally friendly and energy-saving living and working environment.

Technical parameter:

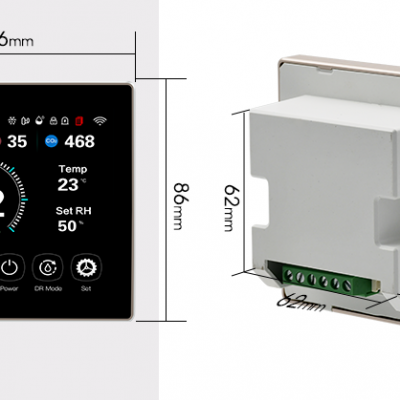

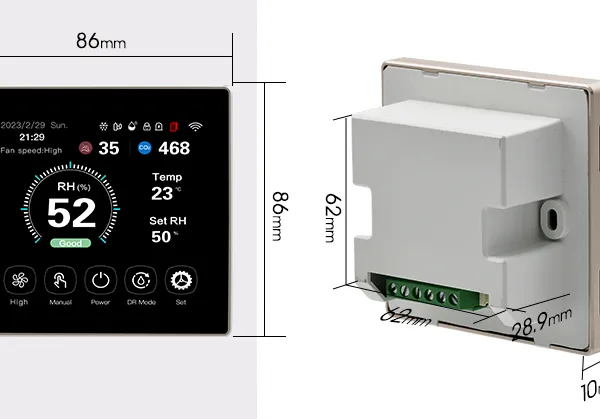

* Dimension: 86×86×39mm

* Warm-up time: 2 minutes

* Fixing hole distance: 60mm(standard)

* Response time: ≤ 10 seconds

* Wiring terminal: Max 2.5 mm2 wire

* Recovery time: ≤ 30 seconds

* Rated voltage: 220V, 50Hz

* Working temperature: -10 ℃ -- +50 ℃

* Standby Power: ≤5.0W

* Working humidity: 5% RH - 90% RH (non condensation)

* Control power: about 200W

* Storage temperature: -10 ℃ -- +60 ℃

* Output interface: EC fan

* Storage humidity: ≤ 60% RH

* Temperature display range: 0 ℃ - 99 ℃

* Service life: ≥ 3 years

* CO2 display range: 350ppm - 2000ppm (optional)

* PM2.5 display range: 1ug/m3 - 999ug/m3
