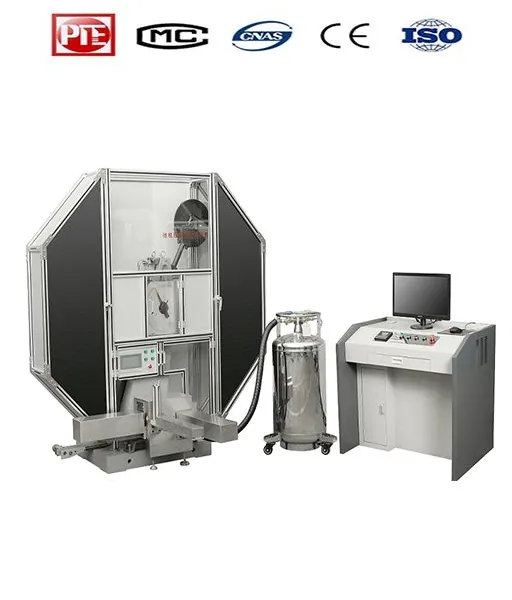

Model JBDW-C Series Automatic Computer Screen Display Pendulum Impact Testing Machine With Super Low Temperature Chamber
You May Like
-
Model JBW-N Computer Screen Display Charpy And Izod Pendulum Impact Tester
-
Model WDC-80TD Low Temperature Chamber for DWTT Impact Specimen
-
Model WDC-196T Low Temperature Chamber for Impact Specimen
-
ZT-VU1 Manual Special Cutting Machine for Notch of Impact Specimen
-
ZT-VU2 Electric Special Cutting Machine for Notch of Impact Specimen
-
Model 934-1 Barcol Impressor
Product Description
Application:
This kind of automatic Computer screen display Pendulum Impact Testing Machine were strictly designed according to national standard GB/T3038-2002 “ Inspection for pendulum Impact Testing Machine” and GB/T229-1994 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148-1983，ASTM E23 and EN10045. The machine uses the high rigidity structure with same as Zwick, Germany machine It is mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of clear zero and return automatically, capture the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the result can be displayed, stored and printed out. Hand box and computer program controlled alternative operating method. With the super low temperature cooling system, it can check the impact performance of materials under -190'C. The feeding system can deliver the sample to the working area automatically
Specifications:
Specifications | JBDW-150C | JBDW-300C | JBDW-450C | JBDW-600C | JBDW-750C |
Impact energy (J) | 150 | 300 | 450 | 600 | 750 |
Impact velocity (m/s) | 5.24 | ||||
Raised angle | 150º | ||||
Standard span (mm) | 40 | ||||
Round angle of jaws (mm) | R1-1.5 | ||||
Round angle of striking edge (mm) | R2-2.5 | ||||
Size of specimen (mm) | 10 x 10 x 55 | ||||
Power supply | 3phs, 380V, 50Hz or 220V, 60Hz | ||||
Dimensions (mm) | 2244 x 836 x 1590 | ||||
Net Weight (kg) | 1800 | ||||
Display | Computer screen | ||||
Low temperature range | -80--- -190°C (Liquid Nitrogen) | ||||
