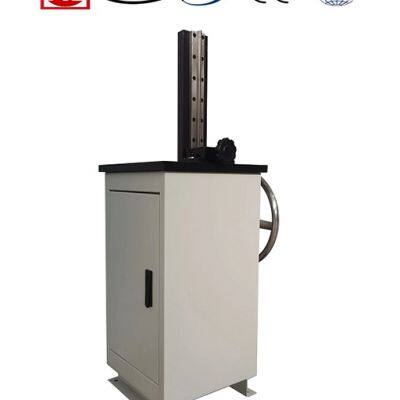

ZT-VU1 Manual Special Cutting Machine for Notch of Impact Specimen
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Port of Shipment:
Qingdao
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Western Europe
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZT-VU2 Electric Special Cutting Machine for Notch of Impact SpecimenNegotiableMOQ: 1 Set -
Model JB Series Pendulum Impact Testing MachineNegotiableMOQ: 1 Set
-
Model JBS Series Digital Display Pendulum Impact TesterNegotiableMOQ: 1 Set
-
Model JBW Series Computer Screen Display Pendulum Impact TesterNegotiableMOQ: 1 Set
-
Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine With Super Low Temperature ChamberNegotiableMOQ: 1 Set
Main applications:
This machine is designed for providing the specimens used in the impact testing tasks.
The machine cut notch which according to the “V” ASTM E23, ISO148 standards, “U” DIN 50115 and ISO83 standards “ Charpy notch Impact Test Method for metal material” on the specimen for only one time. At the same time, it has advantages of high precision, long life, low noise and concise appearance etc.
Specification:
Notch type: V type: 2mm.
Notch types: U type: 2mm.
Size of Specimen: 10mm x 10(7.5 or 5)mm x 55mm
Travel of cutting knife: 350mm
Cutting speed: 2.5m/Min
Dim: 350mm x 350mm x 700mm
Weight: 100kG
