Applications:

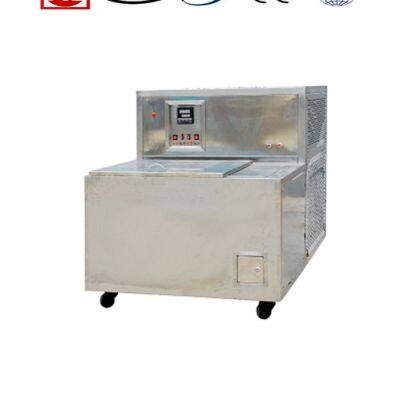

Model WDC-80TD low chamber is newly designed according to Charpy notch Impact Test Method for Metal Material, and adopts alcohol cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen for WDTT drop weight as ASTM E436 and API 5L standards.
Main Specifications
Temperature control range＋30℃～－80℃
Constant temperature accuracy: ≤±0.5ºC
Temperature dropping speed: Within 80 minutes the temperature will drop to -80℃ from Ambient
Dimension: 1515×1010×1120mm
Effective working space: 600 ×400 ×200mm
Specimen quantity more than 24 pcs
Specimen dimension：350x75mm (Length x width), the thickness will be as actual material thickness)
Cooling media: Alcohol or other non-freezing solution (60L)
Power supply: 220V ~ 240V，50Hz，14kW
