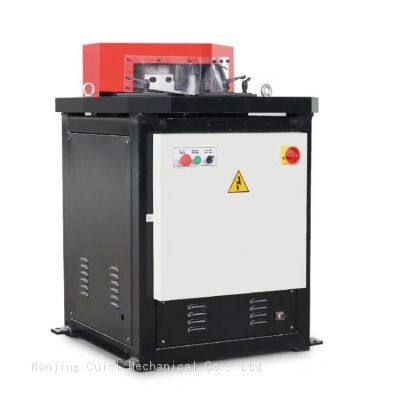

Cuicl High Quality Fixed/Adjustable Angle cutting machine 45-135 degree CE ISO Approved in good price factory wholesale
1 - 99999
/ Unit
1 Unit(Min.Order)
- 10000000 Unit / Units per Month
- Shanghai/Ningbo/Lianyungang
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 3 days
You May Like
-
Cuicl High Quality Electro Hydraulic Servo 4+1 Axis CNC Plate Bending Machine 100t 3200mm CE ISO Approved Factory Sales
-
Cuicl Automatic Cleaning Manufacturing/Expiry Date/Batch Code Printing Machine Industrial Continuous Cij Ink-Jet Printer
-
Cuicl High Quality CNC Slot Shaping/Planing/Metal Plate Grooving/Recessing Machine CE Approved in Good Price Wholesale
-
Cuicl High-end Electro-hydraulic Servo Bending Machine 200T 4000mm DA53T 4+1 Axis Plate CNC Press brake Factory Sales directly
-
Cuicl Brand-High quality Exchange Worktable Kitchen Cabinets Manufacturing Fiber Laser cutting machine
-
Cuicl High quality Door processing/manufacturing shearing machine 1000W/1500W/3000W Fiber Laser Cutting machine CE approved Factory Sales directly
Product Details
| Brand Name | CUICL | Place of Origin | China | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 2 years | Condition | New |
Product Description
Application
Notching machine is suitable for shearing metal sheet materials.
It is widely used in many fields such as automobile manufacturing plants, shipbuilding, elevators, electrical equipment, pipelines, cookware and stainless steel products.
No | Name | Items | Parameters | |||||
1 | Angle | 90° | ||||||
2 | Blade length | mm | 200 | 250 | 300 | |||
3 | Max cut thickness(σb=450MPa) | mm | 3 | 4 | 6 | 8 | ||
4 | Max cut length | mm | 200 | 250 | 300 | |||
5 | Stroke times | T/min | 40 | 35 | 30 | |||
6 | The worktable size | mm | 700x700 | 730x730 | 750x750 | 810x810 | ||
7 | The worktable height | mm | 820 | 850 | 900 | |||
8 | Motor power | Model | Y100L-4 | Y112M-4 | ||||
Power | kw | 3 | 4 | |||||
speed | r/min | 1440 | ||||||
9 | Oil volume | L | 30 | |||||
10 | Max pressure | MPa | 16 | |||||
11 | Dimension(L*W*H) | mm | 810x720x980 | 910x760x1050 | 910x810x1050 | 950x820x1150 | ||
12 | Weight | kg | 590 | 680 | 710 | 850 | ||
Please contact us for more details
