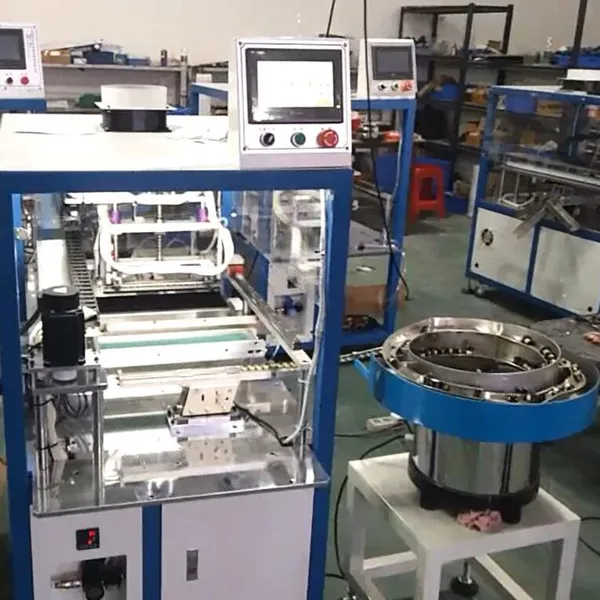

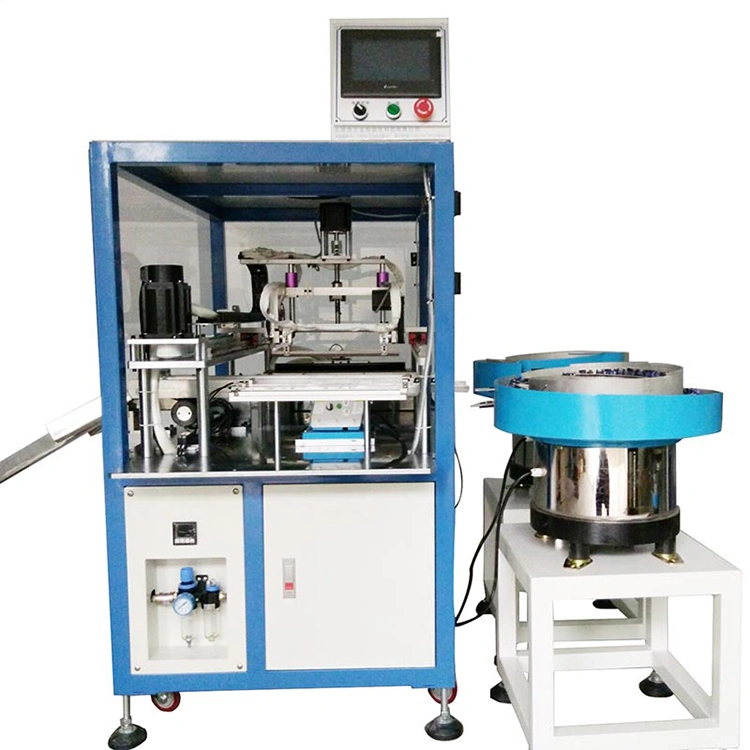

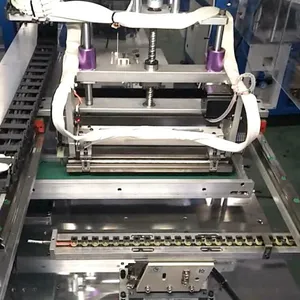

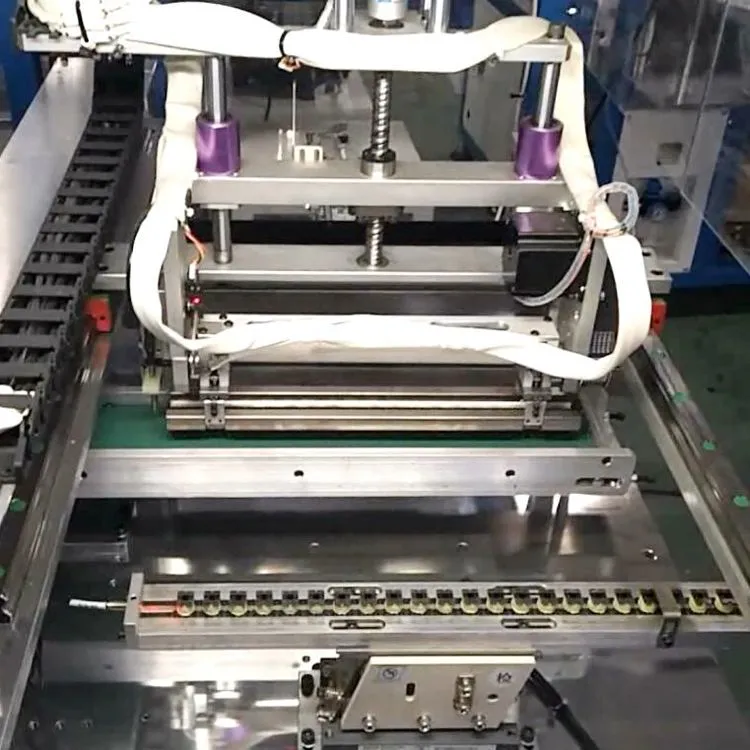

Help CenterHY-H11 Vibration Plate Loading Fully Automatic Transformer and Filter Soldering Machine
Related Products
-
Transformer Soldering Equipment Inductive Coil Tin Immersion Machine Flip Over Automatic Soldering MachineUS$ 1339 - 1640MOQ: 1 Unit -
HY-H02 Lead-free Pure Titanium Environmentally Friendly Jet Type Large Nozzle Tin FurnaceUS$ 1515 - 1655MOQ: 1 Unit
-
HY-H07 Motor Stator Automatic Spray Soldering Furnace (up and Down Positioning Soldering)US$ 1946 - 2085MOQ: 1 Unit
-
HY-M106 Straight up and Straight Down Automatic Lifting Soldering FurnaceUS$ 418 - 502MOQ: 1 Unit
-
HY-M107 Fully Automatic Multifunctional 360 Degree Rotating Tin Melting FurnaceUS$ 1680 - 1820MOQ: 1 Unit
HY-H10 Conveyor belt type transformer and filter automatic soldering machine
1. Suitable for vertical, horizontal, high frequency, low frequency transformers, inductors, filters and other products solder.
2. Artificial display products, automatic rosin, automatic solder, automatic return material, can be connected to the pipeline-type operations, suitable for small, orders miscellaneous models, product size width can be adjusted, versatility.
3. Solder fixture can be common, no need to replace the replacement fixture, corner and no corner solder can be arbitrarily set.
4. Solder time, solder speed, solder angle can be set arbitrarily.

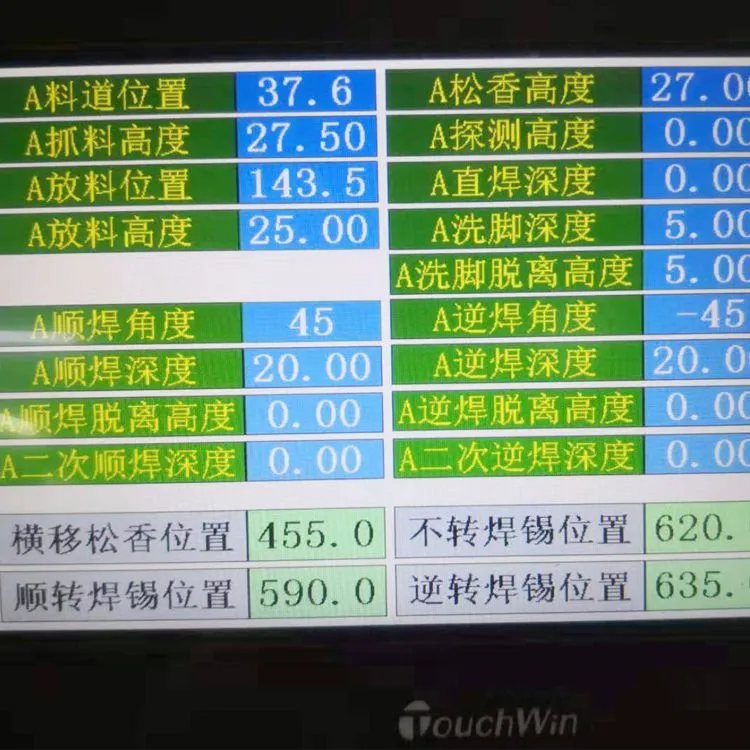

5. The control system uses the man-machine interface Chinese operation interface, the operation is simple, easy to understand.
6. The machine features practical, stable, provincial labor, free old and new staff training trouble.
7. Tin furnace with lead-free titanium alloy material (ceramic)
| Model | HY-H11 |
| Voltage | AC220V / 50HZ |
| Pressure | 6-8KG / cm2 |
| Power | 3500W |
| Body size | 1200 (L) X 1500 (W) X 1500 (H) mm |
| Tin furnace size | 395 (L) X 90 (W) X 50 (H) mm |
| Operation interface | man - machine interface, Chinese and English operating system |
| Control mode | Servo PLC |
