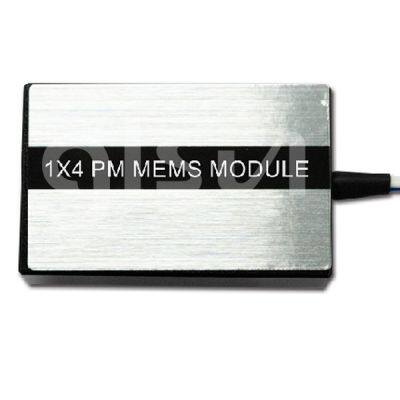

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Polarization-Maintaining MEMS 1×4 Optical Switch
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Glsun
Place of Origin:
China
Model Number:
SUN-MS-S1E-1xN- A-B-C-D-E-F-G （MS:MEMS Optical Switch； S1E:Series 1）
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
Glsun
Place of Origin
China
Model Number
SUN-MS-S1E-1xN- A-B-C-D-E-F-G （MS:MEMS Optical Switch； S1E:Series 1）
Description
A Polarization-Maintaining (PM) MEMS optical switch is a type of optical switch that uses MEMS technology to control the path of light signals in optical networks.
Features
· Base on MEMS technology
· Small package
· High Stability, High Reliability
· Epoxy-free on Optical Path
· Non-latching
Applications
·Channel Monitor
·R&D in Laboratory
Specifications
| Parameters | Unit | SUN-MS-S1E-1X4-PM |
| Wavelength Range | nm | 1550±20 |
| Test Wavelength | nm | 1550 |
| Insertion Loss 1,2,3 | dB | 1.0(TYP) 1.6(MAX) |
| WDL 2,4 | dB | ≤0.3 |
| PDL 1,2 | dB | ≤0.1 |
| TDL1,2 | dB | ≤0.3 |
| PER | dB | ≥15 |
| Return Loss 1,2 | dB | ≥50 |
| Crosstalk 1,2,3 | dB | ≥50 |
| Repeatability 5 | dB | ≤±0.02 |
| Power Supply | V | 4.8~12.5 |
| Power Consumption | mW | ≤500 |
| Durability | Cycles | ≥109 |
| Switch Time | ms | ≤20 |
| Optical Transmission Power | mW | ≤500 |
| Optical Pulse Power Tolerance | W | 70 |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Dimension | mm | A-39.1(L) x 24.7(W) x 11(H) ±0.2 A1-47.1(L) x 24.7(W) x 13.5(H) ±0.2 B-65(L) x 24.7(W) x 11(H) ±0.2 |
| Note: 1 Within operating temperature and SOP. 2 Excluding connectors. 3 Power off isolation same as cross-talk. 4 WDL is specified in ±20 nm of 1550nm,at 23°C. 5 Repeatability is defined after 100 cycles. | ||
Ordering Information
SUN-MS-S1E-1xN- A-B-C-D-E-F-G
（MS:MEMS Optical Switch； S1E:Series 1）
N | A | B | C | D | E | F | G |
Output Number | Fiber Type | Package Type | Test Wavelength | Tube Type | Fiber Length (Include connector) | Connector | Interface |
4:4 | PM: PM, 9/125 | A:Type A A1:Type A1 B:Type B | 1550: 1550nm | 90:900um (Type B) | 05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Other | FA(s): FC/APC (Slow axis alignment) | TTL: TTL/UART |
