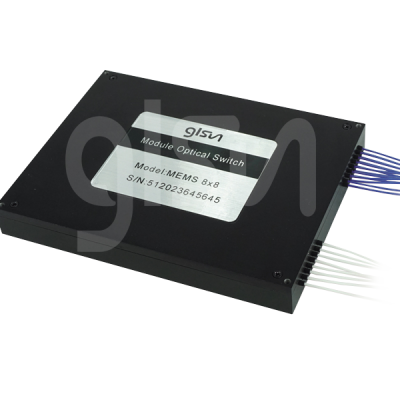

Help CenterMEMS MxN Optical Switch Module
Related Products
GLSUN's MEMS MxN optical switch is built using MEMS mirror technology. The mems mxn optical switch is fully bi-directional and transparent to the full wavelength range of the installed fiber. The "MxN" in the term represents the number of inputs (M) and outputs (N), so an MxN optical switch can handle a variety of configurations, such as 8x8, 16x16, or even larger, with the ability to route any input port to any output port. GLSUN MEMS matrix optical switch is a proprietary optical switch structure that allows any of the inputs to connect to any of the outputs in a fully non-blocking, all-optical cross-connect configuration.
Features
· Low InsertionLoss
· Fast Switching Speed
· High Stability
Applications
· LAN multi light source/detector automatic switching and optical sensing multi-point dynamic monitoring system.
· Multi channel optical monitoring in optical transmission systems.
· Testing of optical fibers, optical devices, networks, and field engineering optical cables.
· A testing system composed of optical fibers and various optical devices.
Parameters |
Unit |
SUN-MEMS-MxN |
|||
Min. |
Typ. |
Max. |
|||
Operation Wavelength Range |
nm |
1260~ 1360 or 1525~ 1565 |
|||
Insertion Loss |
8 x 8 |
dB |
2.0 |
||
8 x 16 |
2.5 |
||||
16 x 16 |
2.5 |
||||
24 x 24 |
3.0 |
||||
32 x 32 |
3.5 |
||||
Return Loss |
dB |
45 |
|||
Crosstalk |
dB |
45 |
|||
Polarization Dependent Loss |
dB |
0.1 |
0.25 |
||
Wavelength Dependent Loss |
dB |
0.5 |
|||
Switching Time |
ms |
30 |
|||
Repeatability |
dB |
±0.05 |
|||
Maximum Optical Input Power |
mW |
500 |
|||
Durability |
Cycles |
109 |
|||
Operating Temperature |
℃ |
-5 |
55 |
||
Storage Temperature |
℃ |
-20 |
70 |
||
Relative Humidity(non-condensing) |
% |
5 |
95 |
||
Control Interface |
DB15 |
||||
Power Supply |
DC: 5V |
||||
Power Consumption |
W |
30 |
|||
Dimension (WxDxH) |
mm |
282.6 x 226 x 78.2 |
|||
|
Note： 1. IL is measured at 1550nmfor theoperation wavelength at 23℃±5℃ . 2. WDL is measured in a ±20nm range at 23℃±5℃ . | |||||
SUN-MEMS-MxN-A-B-C-D-E-F-G
A |
B |
C |
D |
E |
F |
G |
|
Channel No. |
Fiber Type |
Test Wavelength |
Tube Type |
Fiber Length |
Connector |
Interface |
|
M:≤32 N:≤32
|
SM:9/125
|
1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm
|
90:900um
|
05:0.5±0.05m 10:1.0±0.05m 15: 1.5±0.05m X: other
|
FA:FC/APC FP:FC/PC LA:LC/APC LP:LC/PC X:other
|
R:RS232 U:UART |
