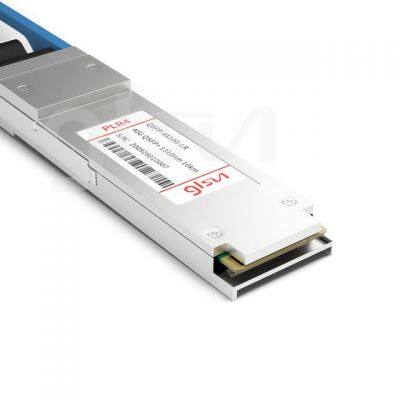

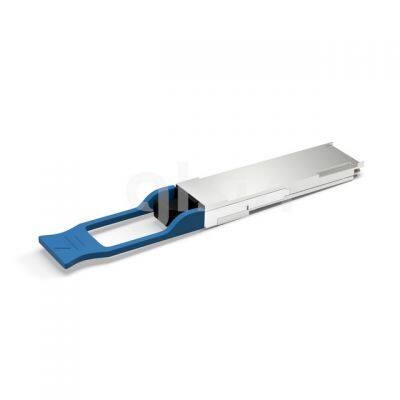

QSFP-4X10G-LR Cisco Compatible, 4x10GBASE-LR QSFP+ 1310nm 10km DOM MTP/MPO SMF Fiber Optical Transceiver Module
US$ 199 - 220
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Glsun
Place of Origin:
China
Model Number:
SUN-QSFP-4X10G-LR-T02
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QSFP-40G-ER4 Cisco Compatible, 40GBASE-ER4 QSFP+ SMF 1310nm 40km DOM Fiber Optical Transceiver ModuleUS$ 399 - 425MOQ: 1 Set -
Cisco Compatible 1M (3ft) 10G SFP+ to SFP+ Active Optical Cable AOCUS$ 18.5 - 21.5MOQ: 1 Set
-
Cisco Compatible 2M (7ft) 10G SFP+ to SFP+ Active Optical Cable AOCUS$ 19.5 - 22.5MOQ: 1 Set
-
Cisco Compatible 3M (10ft) 10G SFP+ to SFP+ Active Optical Cable AOCUS$ 20.5 - 23.5MOQ: 1 Set
-
Cisco Compatible 5M (16ft) 10G SFP+ to SFP+ Active Optical Cable AOCUS$ 21 - 24MOQ: 1 Set
Brand Name
Glsun
Place of Origin
China
Model Number
SUN-QSFP-4X10G-LR-T02
GLsun 40Gb/s QSFP+ PSM 10km Fiber Optical Transceiver is a four-channel, pluggable, parallel, fiber-optic QSFP+ transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel. and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate data rate of 40Gbps 10km using single-mode fiber. These modules are designed to operate over single-mode fiber systems using 1310 nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver that provides increased port density and total system cost savings.
| Compatible | Cisco | Form Factor | QSFP+ |
| Max Data Rate | 11.2Gbps | Wavelength | 1310nm |
| Max Cable Distance | 10km at Single Mode Fiber | Connector | Single MPO |
| Transmitter Type | DFB Laser Array | Extinction Ratio | 3.5dB |
| Media | SMF | Power Consumption | <2.5W |
| Power Supply Voltage | 3.3V | Operating Case Temperature | 0°C to +70°C (Commercial) |
