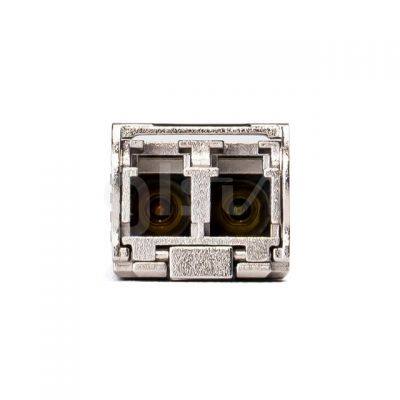

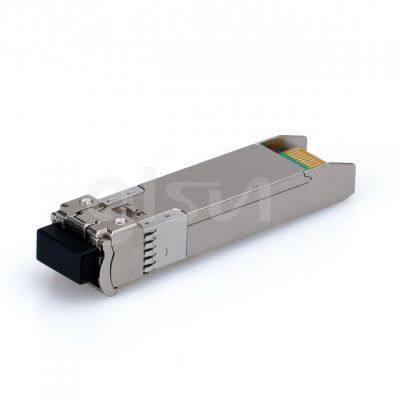

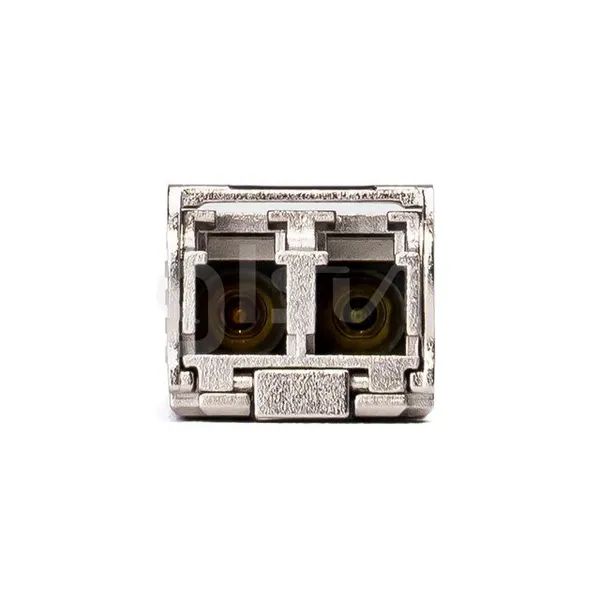

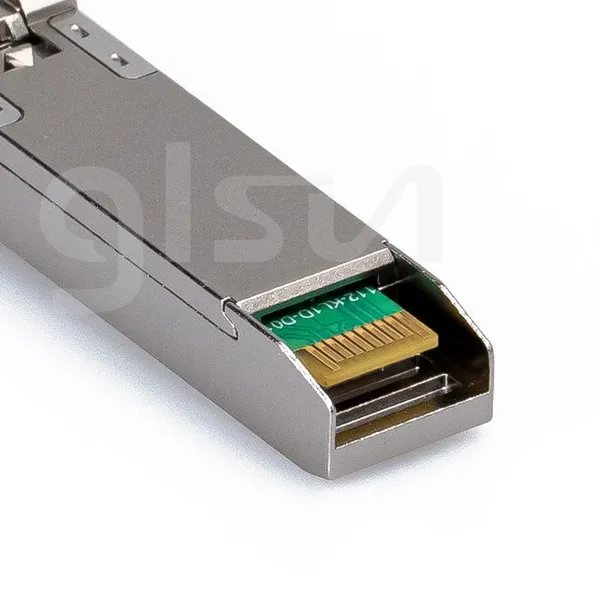

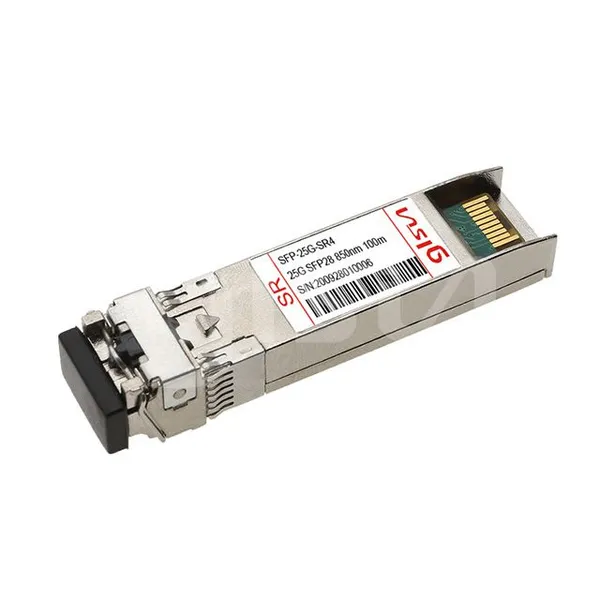

SFP-25G-SR Cisco Compatible, 25GBASE-SR SFP28 850nm 100m DDM LC MMF Fiber Optical Transceiver Module
- ShenZhen
- T/T L/C
You May Like
-
SFP-25G-SR Cisco Compatible, 25GBASE-SR SFP28 850nm 100m DDM LC MMF Fiber Optical Transceiver Module
-
SFP-25G-CWDM Cisco Compatible, 25GBASE-CWDM SMF 1270nm 10km LC DOM SFP28 Fiber Optical Transceiver ModuleSFP-25G-CWDM Cisco Compatible, 25GBASE-CWDM SMF 1270nm 10km LC DOM SFP28 Fiber Optical Transceiver Module
-
SFP-25G-CWDM Cisco Compatible, 25GBASE-CWDM SMF 1370nm 10km LC DOM SFP28 Fiber Optical Transceiver Module
-
C20 DWDM-SFP25G-61.41 Cisco Compatible, 25G DWDM SFP28 100GHz 1561.41nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
C60 DWDM-SFP25G-29.55 Cisco Compatible, 25G DWDM SFP28 100GHz 1529.55nm 10km DOM LC SMF Fiber Optical Transceiver Module
-
QSFP-40G-SR4 Cisco Compatible, 40GBASE-SR4 QSFP+ 850nm 150m DDM MTP/MPO MMF Fiber Optical Transceiver Module
Product Details
| Brand Name | Glsun | Place of Origin | China | |
| Model Number | SUN-SFP28-25G-SR-T04 |
Product Description
GLsun SFP28-25G-SR 850 nm VCSEL 25.78Gbps SFP28 transceiver is designed for use in 25Gb/s data rate over multi-mode fiber for link length of 100m. These transceiver designs are optimized for high performance and cost-effective to supply customers with the best solutions for 25Gb/s single lane optical links.
Feature
Hot-pluggable SFP28 form factor
Supports 25.78125Gb/s bit rate
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
850nm VCSEL laser and PIN photo detector
Internal CDR on both Transmitter and Receiver channel
Operating environment temperature range: 0 ~ +70℃
Single 3.3V power supply
Low power dissipation: ＜1.0W
Application
Data Center
25GBASE-SR Ethernet
Infiniband EDR Applications
32G Fiber Channel Applications
Servers, Switches, Storage and Host Card Adapters
Standards
Compliant with SFF-8024、SFF-8431、SFF-8432
Compliant with IEEE802.3by
Compliant with SFF-8472
RoHS complaint
