Product Introduction

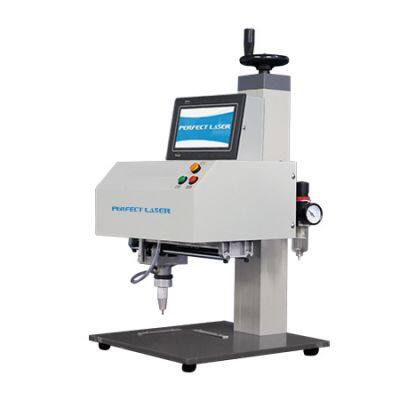

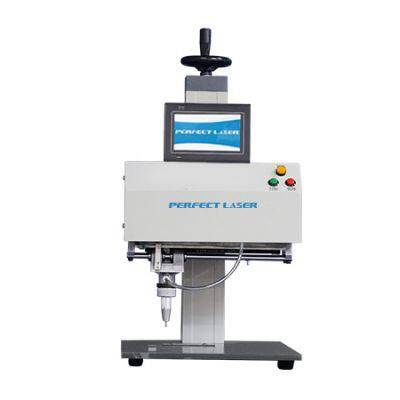

The dot peen nameplate marking machine PEQD-200E has low noise, long service life and high intelligence.
The whole machine can be set to automatic working state and automatic marking according to the interval of loading and unloading frequency.
This dot peen nameplate marking machine can adjust the marking strength according to the marking depth, with high flexibility.
Product Features
1. It’s specially used for marking nameplates.
2. The dot peen nameplate marking machine positioning accuracy is high, not easy to produce wear, to maintain the integrity of the machining surface.
3. The dot peen nameplate marking machine can be lifted through the column, stable and reliable.
4. The dot peen nameplate marking machine has the functions of text editing, graphics processing, marking strokes, speed adjustment, variable marking, avoiding obstacles and automatic marking.
5. With LCD touch screen, built-in professional control software, one key start, no need extra computer.
6. Light body, no control box, easy to carry, freight is not much.
Application
1. Applicable Materials
The dot peen nameplate marking machine is suitable for aluminum, copper and many other metals and alloys.
2. Applicable Industries
The dot peen nameplate marking machine is widely used in industries such asauto body, sheet metal parts, nameplates and other metal parts for flat marking.
Technical Data
Product Name | Desktop Smart Touch Integrated Metal Dot Peen Pneumatic Marking Machine |
Model | PEQD-200E |
Machine Type | Flat Marking |
Working Area | 190x120mm (Customizable) |
Marking Accuracy | 0.02mm |
Marking Speed | 3-5 words /s |
Marking Depth | 0.1-1mm |
Lifting Range | 0-300mm |
Machine Power | ≤200w |
Power Supply | AC (110-220V) ±10% , 50Hz |
Air Pressure | 0.2-0.6 Mpa |
Working Environment | 0-40℃, No condensation |
Machine Weight | 28 kg |
Machine size | 340*310*750mm |
