Product Introduction

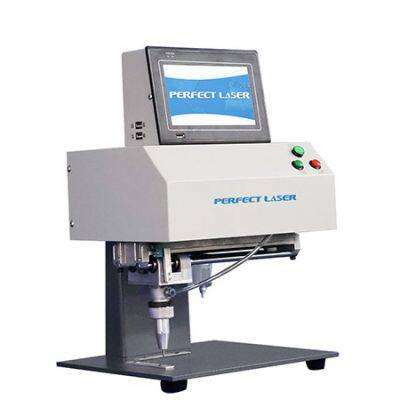

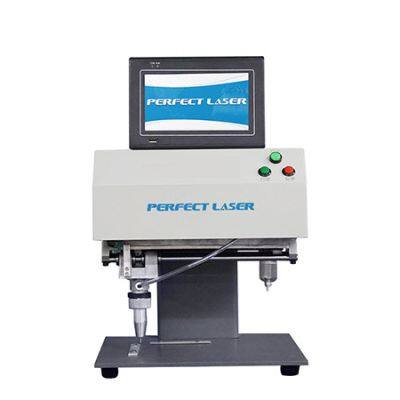

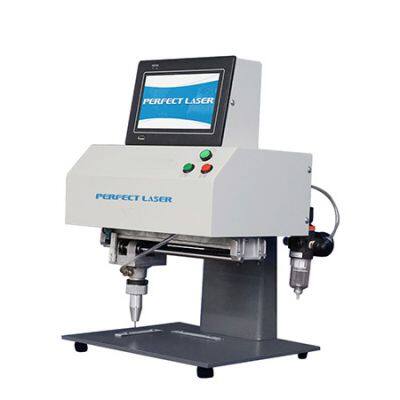

The dot peen nameplate marking machine with LCD screen is computer-controlled carbide marking needle that carries out high-impact movement in compressed air and marks permanent marks of a certain depth on the work-piece.
The dot peen nameplate marking machine adopts one-way double tracks operation and die-casting process, the marking stability is stronger and the marking accuracy is higher.
Simple touch screen operation, low maintenance cost, and multiple marking needs can be met.
Product Features
1. The dot peen marker with fully enclosed LCD touch screen, built-in professional control software, one key start without extra computer.
2. Carbide marking needle, long service life.
3. Upgraded version of pure copper motor, non-destructive power high efficiency and low energy consumption.
4. The printed mark is clear and durable, no discoloration, does not fall off, and is not afraid of corganic solvent cleaning.
5. The dot peen marker comes with a strong magnetic clamps, so that the nameplate more stable marking more accurate.
6. The mold is integrated die-casting, which is durable.
Application
The dot peen marker is mainly used for metal and hard plastics materials, such as: stainless steel, bronze, aluminum, iron, hard plastic, PVC, paper, etc.
Technical Data
Product Name | Portable Desktop Dot Peen Nameplatel Marking Machine With LCD Screen |
Model | PEQD-210E |
Marking Depth | 0.1-1mm |
Gas Need | 0.2-0.6MPA |
Marking Stroke | 190mmx120mm（customizable） |
Marking Speed | 3-5 words/s |
Marking Content | English numeric flowing number graphic logo |
Power Supply Model | AC(110-220V)±10%,50HZ |
Control System | Touch screen all-in-one machine (Built-in THORX6 professional control software, one-button start, no computer required) |
Machine Size | 280*310*480mm |
