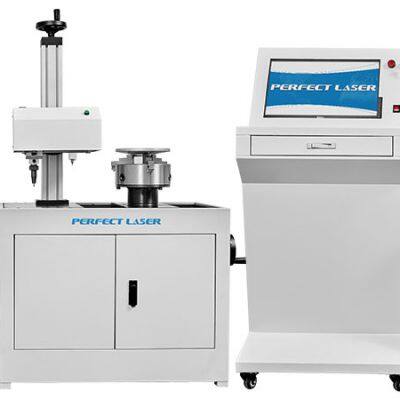

Product Introduction
Perfect Laser is a world leading manufacturer for dot pin marking machines.
This type of dot pin marking machines are special design for both flat surface marking and circumference marking.
The dot pin marking systems can perform well in circumference marking on the edge of flange, flywheel and automobile brake.
The flange marking machine can also mark on variety of metallic or non-metallic cylindrical, conical, spherical circumference of the work piece.
Product Features
1. This dot peen marking machine is mainly marking for arc surface marking, such as: brake discs, flanges and many metal parts. It can also mark on variety of metallic or non-metallic cylindrical, conical, spherical shaped work pieces.
2. It uses lifting structure and angle-adjustable marking head to achieve the multifunctional marking.
3. Equipped with industrial computer, it has powerful marking software. It has more than one hundred fonts and various special symbols.
4. It not only can automatically mark logos, characters, letters, numbers, but also can mark VIN codes, graphics and engine numbers. It supports automatic jumping numbers.
5. The computer host directly output the marking, and the marking effect is neat and clear.
6. Compared with small models, it is more suitable for marking larger or heavier work-pieces.This machine can afford Max.120kgs weight.
7. The marking depth is 0.01-2mm, it can mark clear and standard letters and characters on the surface of metal materials,which will not be worn for a long time.
Application
The dot pin marking machines is suitable for marking the surface of non-metallic materials such as plastic materials and metal materials such as iron and steel, and is mainly used in the production fields of automobiles, aerospace, motorcycles, and electrical appliances industries.
Technical Data
Machine Name | Flange and Flywheel Edge Dot Peen Marking Machine | |
Model | PEQD-250E | |
Working Area | 150mm×100mm, 200mm×100mm | |
Marking Depth | 0.01~2mm | |
Marking Speed | ≤50mm/second (for characters height of 3mm or 3-4 numbers /second) | |
Lifting Range | 0-300 mm | |
Chuck Diameter | Standard 200mm; Optional: 125mm/160mm/300mm | |
Repeated Accuracy | 0.01 mm | |
Pin Hardness | HRC 92 | |
Power Supply | 220V±10％, 50Hz | |
Air Pressure | 0.2-0.6 Mpa | |
Machine Power | ≤400 W | |
Working Environment | -5～40 ℃ | |
Weight | 200 Kgs | |
Dimensions (L×W×H) | Controlling Cabinet | 1200×580×560(mm) |
Pin Head | 920×420×1300(mm) | |
