Product introduction

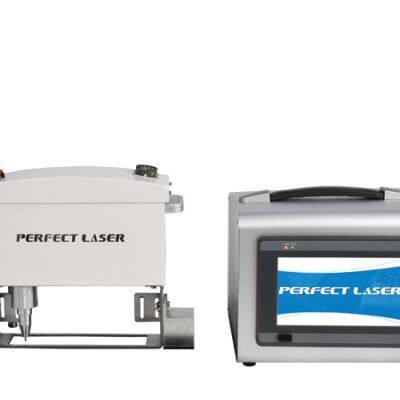

Perfect Laser’s newly upgraded hand-held pneumatic dot peen marking machine has stable performance, LCD touch screen operation, no computer.The operation is simple and convenient.
The pneumatic dot peen marking machine has a strong electromagnetic adsorption capacity, can be absorbed on the surface of the marked work-piece to stabilize the machine body, greatly improve the work efficiency.
It is adequate for flat marking on large-sized work-pieces and unmovable work-pieces.
Product Features
1. LCD operation, no computer required, stable and reliable communications, the operation approach simple and straightforward.
2. Compact and light, easy to carry and handle, It is convenient for real-time remote operation.
3. The whole equipment adopts imported industrial components,High marking precision, clear marking, wide application;
4. Fully automatic double track marking, The marking are deep and high density.
5. The pneumatic dot peen marking machine has the characteristics of free maintenance, Durable service and high marking speed, which greatly improve work efficiency.
Application
1.Applicable Materials
The portable number punching machine is suitable for all kinds of metal and non-metal hard plastic marking, such as stainless steel marking, iron, copper, aluminum, brass marking, coating material marking, hard plastic material marking and other materials of product parts printing.
2.Applicable Industries
The portable number punching machine is mainly used in aerospace, electronics, military, light industry valves, machinery, automobile manufacturing,motorcycle manufacturing, electrical manufacturing, machinery and other fields.
Technical Data
Product Name | LCD Control Hand-held Portable Metal Number Dot Peen Marking Punching Machine |
Product Name | PEQD-030G |
Machine Type | LCD Control+Portable Marking |
Marking Accuracy | 0.01mm |
Marking Depth | 0.01~2mm |
Marking Speed | ≤50mm/second (3-4 number/second for 3mm height letters) |
Pin Hardness | HRC 92 |
Power Supply | 110V/220V±10%,50/60HZ |
Air Pressure | 0.2-0.6Mpa |
Machine Power | ≤400W |
Working Environment | -5～40℃ |

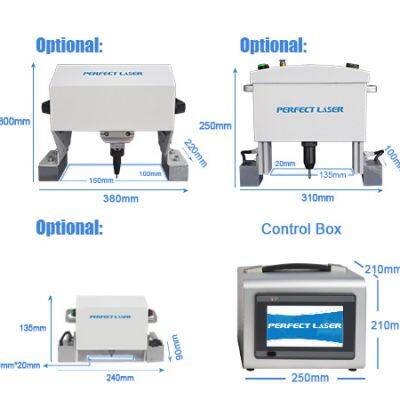

Standard Marking Area | 135×20mm |
Optional Marking Area | 200×100mm / 150×100mm / 90×20mm |
Marking Head Weight | 5KG |
Machine Head Size | 28×11×25cm |
Whole Machine Weight | 30kg |
