Pneumatic Metal Rotary Dot Peen Pin Stamping Engraving Marking Machine For Pipe Tube Flange Hose
- Shanghai
- T/T L/C
- 10 days
You May Like
-
Factory Price Metal Laser Engraving and Marking Machine / Laser Engraver for Dog Tag Ear Tag
-
Metal Laser Cat Neck Tags Engraving Marking 20w 30w 50w Fiber Laser Marker Machine Dog Tags, Cat Name Plates for Anodized
-
Factory Price Zoos Used Marking Machine for Cat Nect Tags Dog Tags Livestock Tags Marking
-
Fast Speed Silver Aluminum Neck Tags Marking Engraving Machine Nect Tags Marker With Factory Price
-
Factory Price Fully Automatic Die Board Laser Cutter Cutting Machine For Package And Die Plate Using
-
Factory Price 200w Fiber Laser Cleaning Machine Laser Rust Removal Machine for Metal Stainless Steel Iron Oil Dust Rust Cleaning
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PEQD-025 | Certification | CE certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Weight | 65kgs | Application | metal and hard plastic engraving | |
| Condition | New | Engraving Speed | ≤50mm/s | |
| Dimensions | 150×100mm/300×200mm/ 400×300mm/200×100mm | Feeding Height | 0-300mm |
Product Description
Product Introduction
Perfect Laser is the world famous manufacturer for pin marking machine.

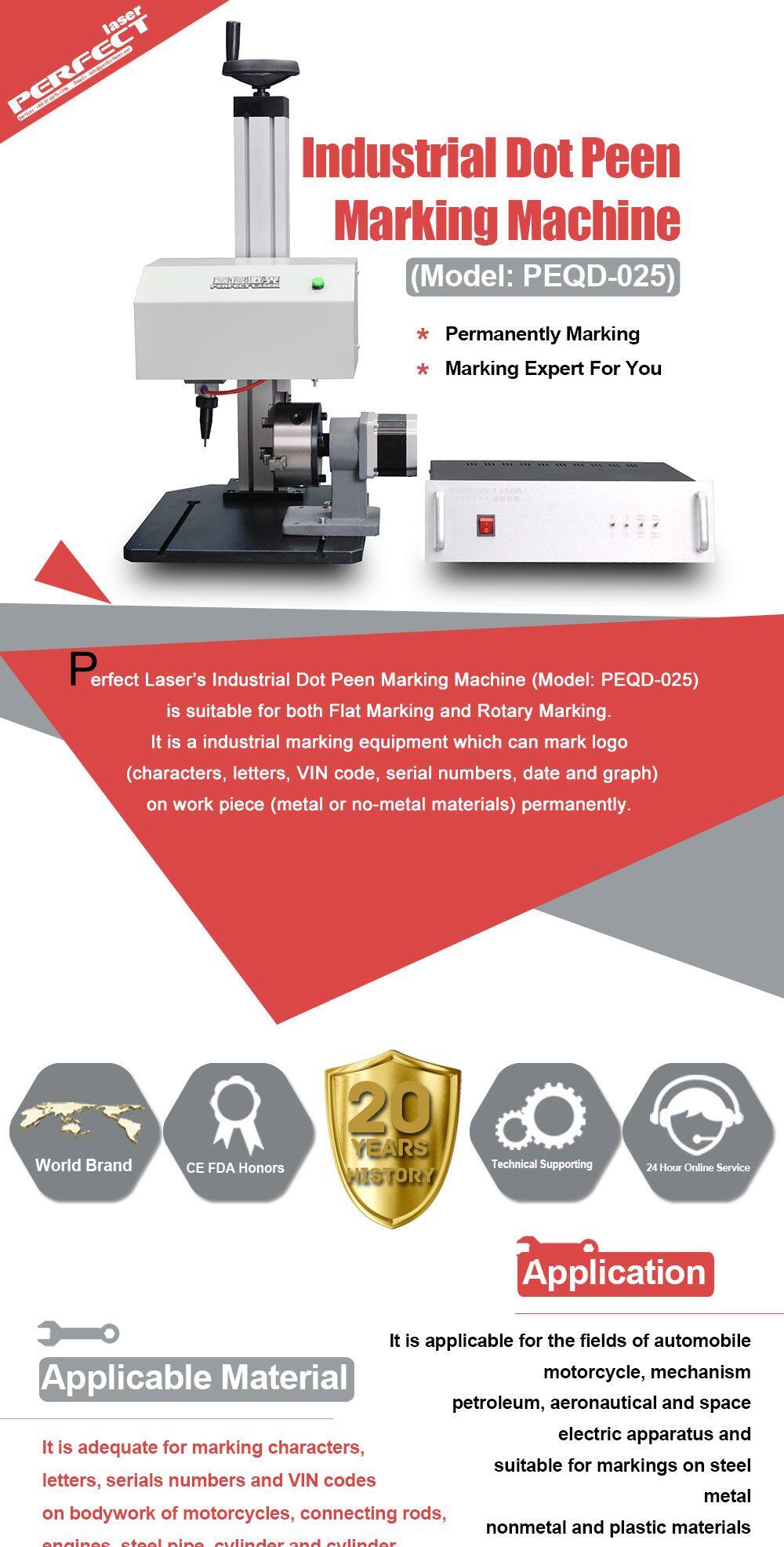

Our rotary pin marking machine (Model: PEQD-025) support both flat marking and rotary marking.
The pin marking machine can permanently make marks on the surfaces of various materials, including letters, numbers, serial numbers, etc.
Product Features

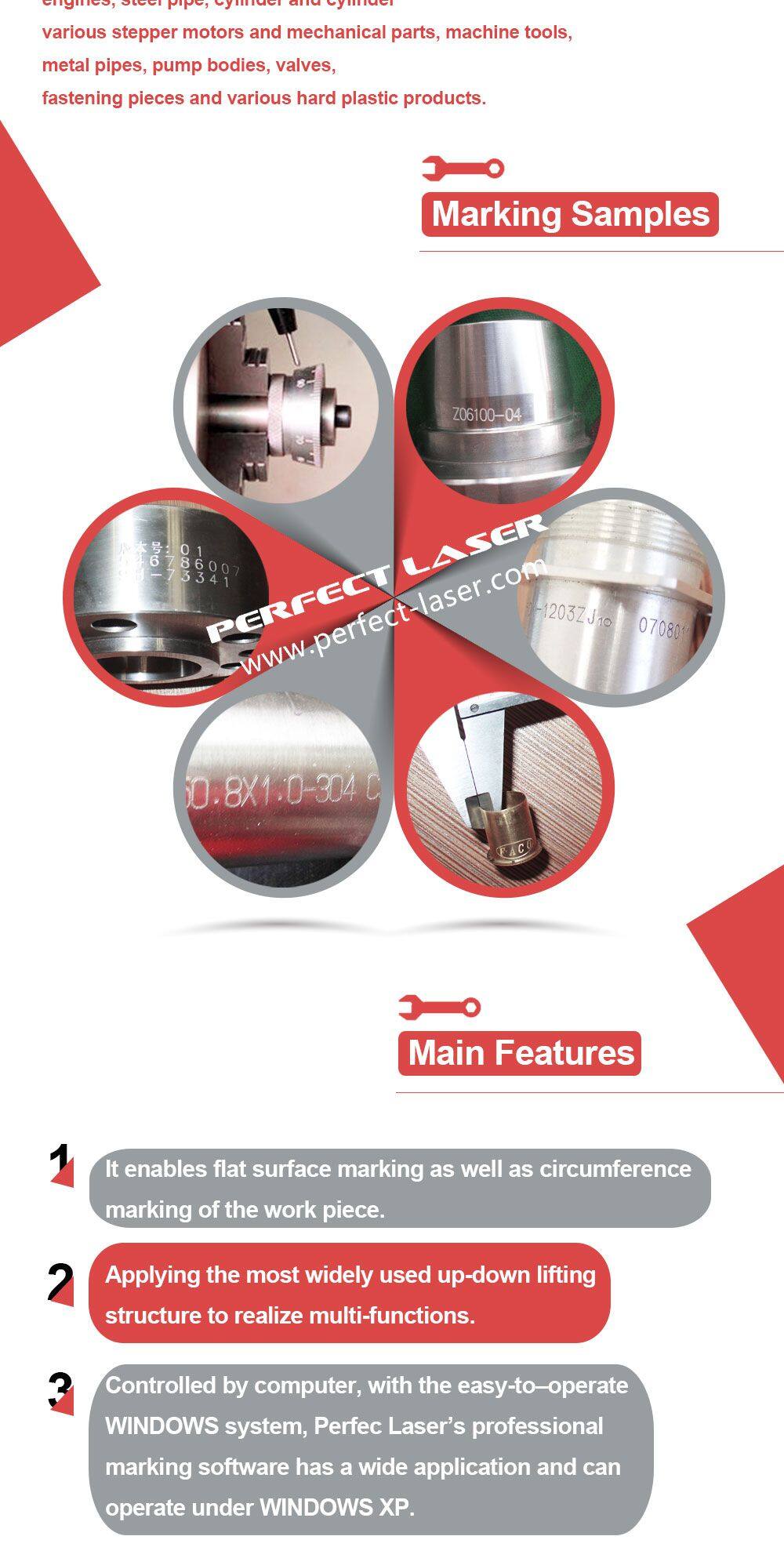

1. The pin marking machine can do both flat surface marking and rotary marking.
2. The dot peen marking system using lifting structure to ensure the realization of multi-function.
3. The dot peen marking system has a powerful editing function, can automatically mark any letters, characters, images and other signs.
4. Support AutoCAD, CorelDraw and other DXF format design logos and graphics.
5. The pin marking machine supports various of fonts such as MG font, CHR in Borland, SHX font in Auto CAD, and TTF in Windows.
6. The marked content will be saved automatically and will not be damaged due to the machine shutdown.
7. The dot peen marking system supports both 2D and 3D rotating.
Application The pin marking machine is widely used in all kinds of metals, steel and plastics and other non-metallic industries, such as automotive, motorcycle manufacturing industry, aerospace, electrical production.
The dot peen marking system mainly used in the surface of various metal or hard plastic products such as frame, engine, steel pipe, machine tool, pump body.

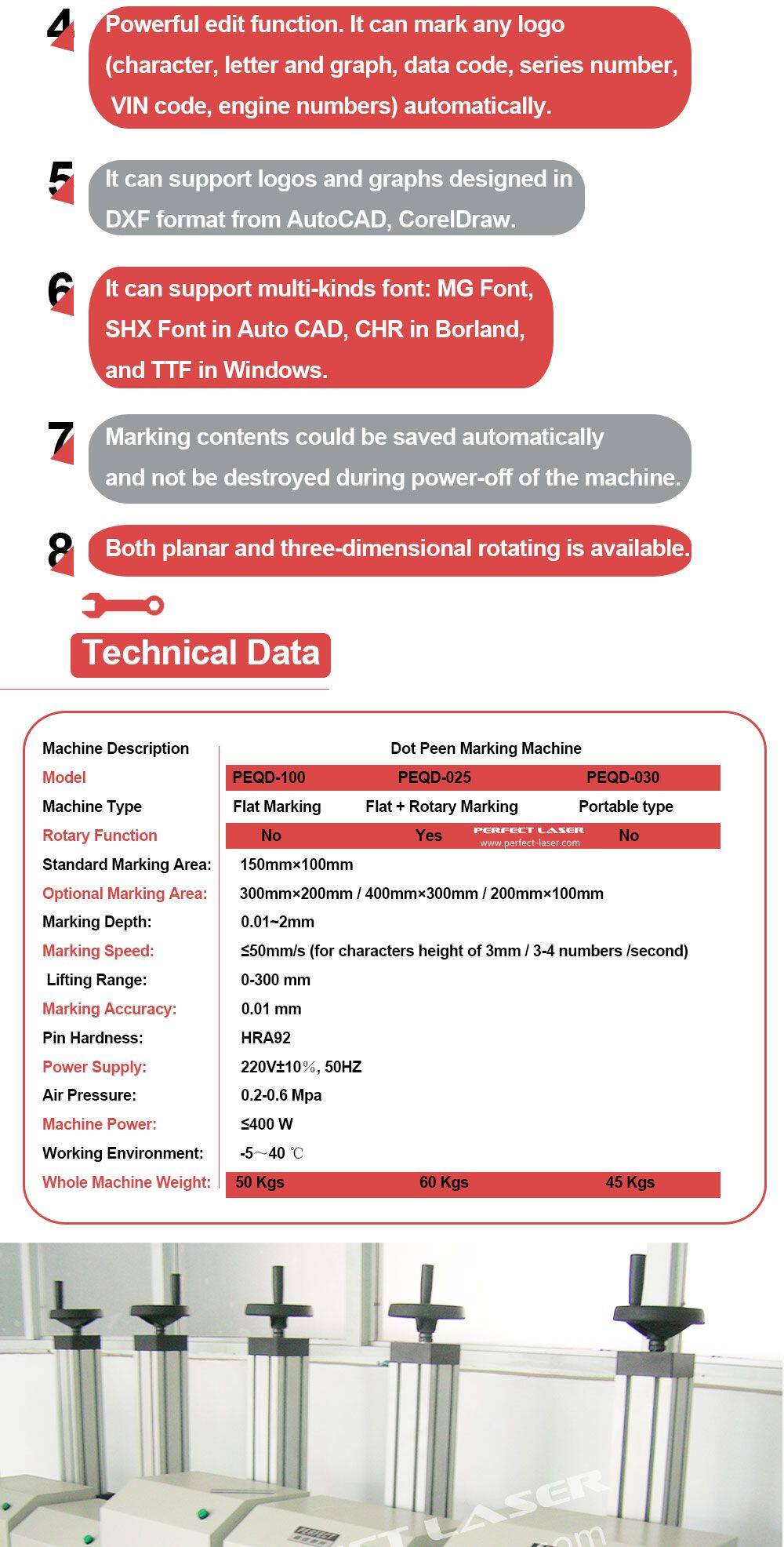

Technical Data

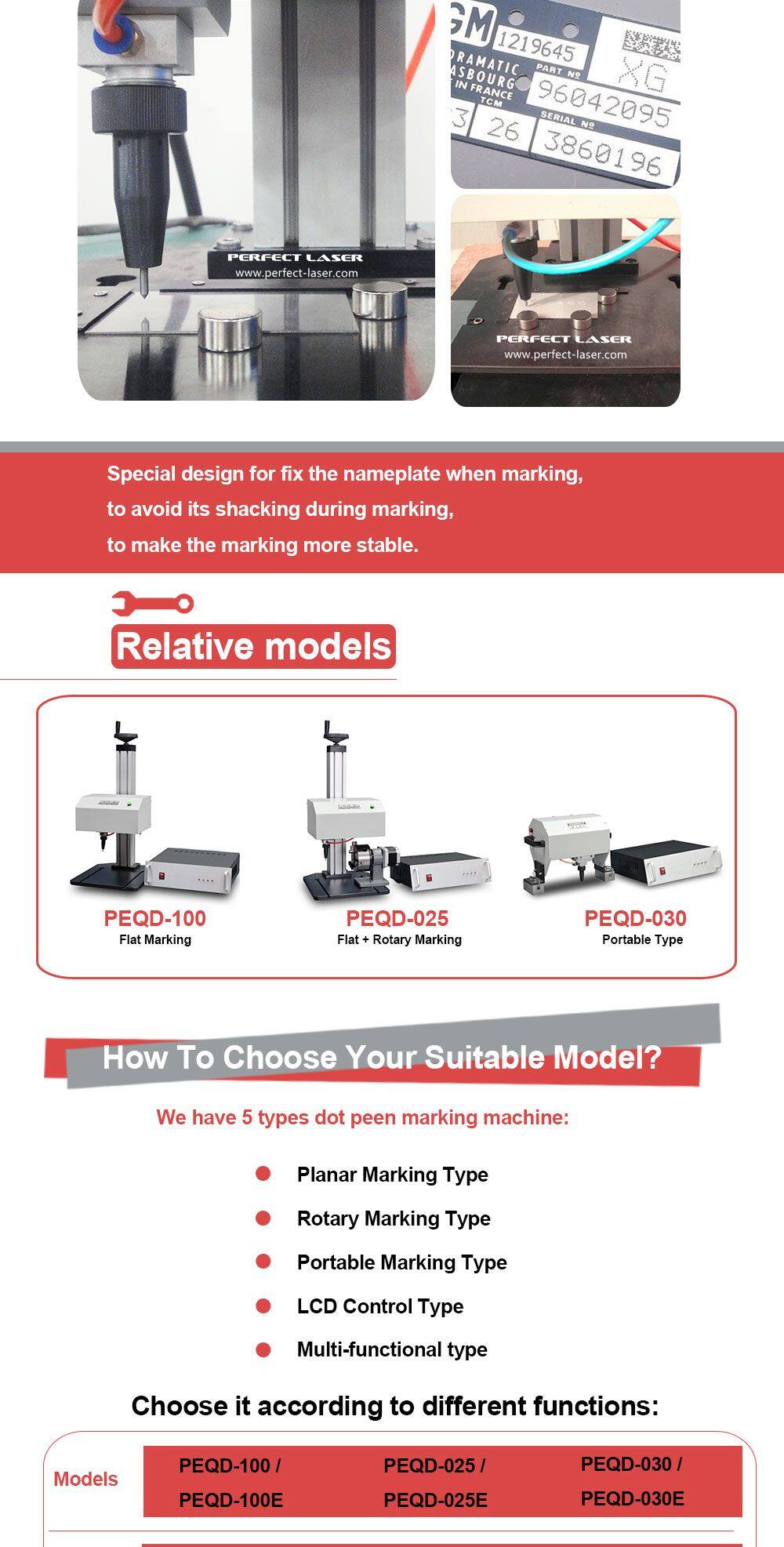

Description | Dot Peen Marking Machine | ||
Model | PEQD-100 | PEQD-025 | PEQD-030 |
Machine Type | Flat Marking | Flat + Rotary Marking | Portable Type |
Rotary Function | No | Yes | No |
Working Area | 150×100mm/300×200mm/ 400×300mm/200×100mm | 135×20mm/125×20 mm/90×20mm/150× 100mm/200×100mm | |
Chuck Diameter (Standard) | 125mm | ||
Chuck Diameter (Optional) | 160mm/200mm /300mm | ||
Marking Accuracy | 0.01 mm | ||
Marking Depth | 0.01~2mm | ||
Marking Speed | ≤50mm/s (for 3mm letter height/ 3-4 numbers/second) | ||

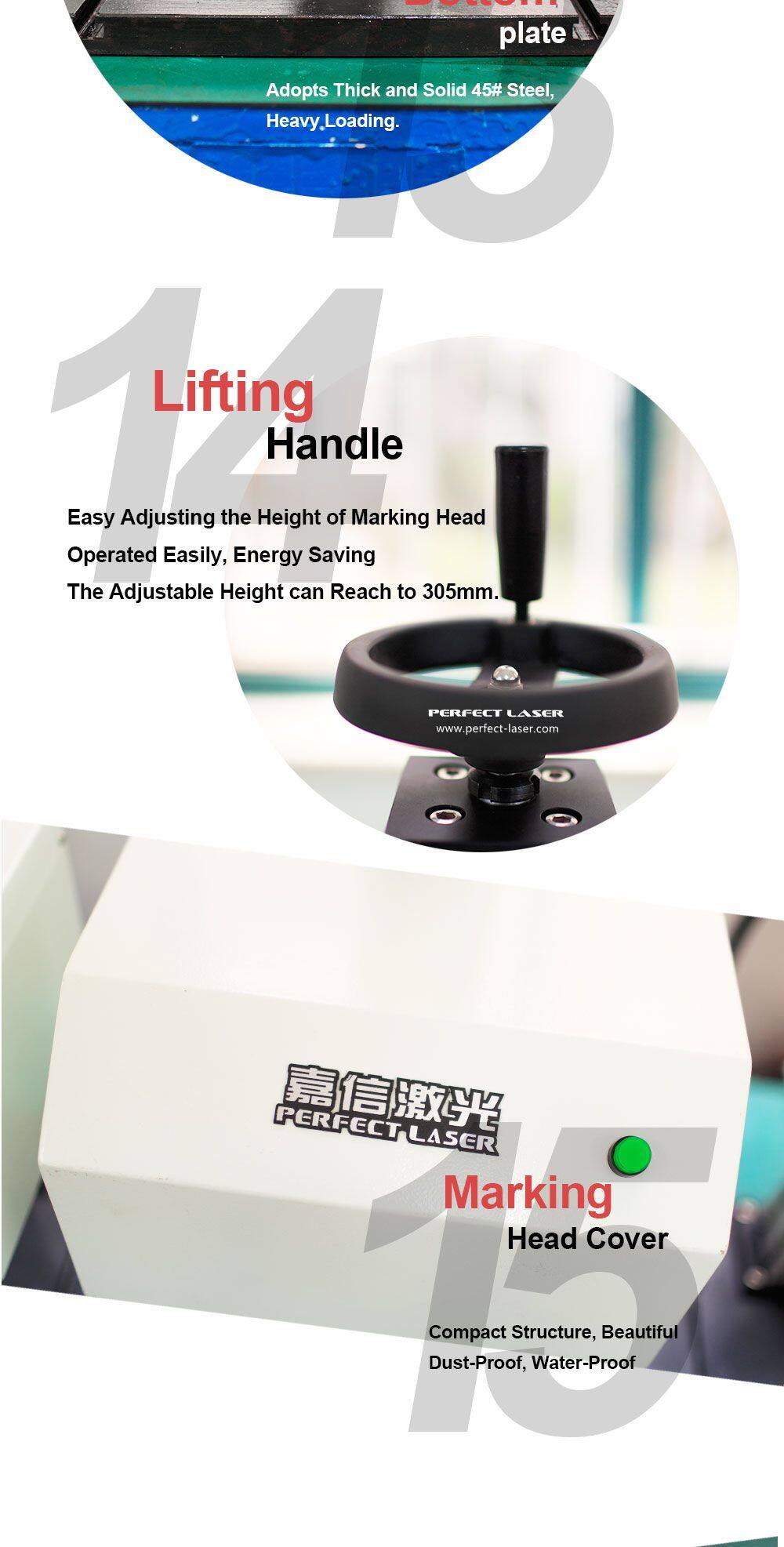

Lifting Range | 0-300 mm | ||
Machine Power | ≤400 W | ||

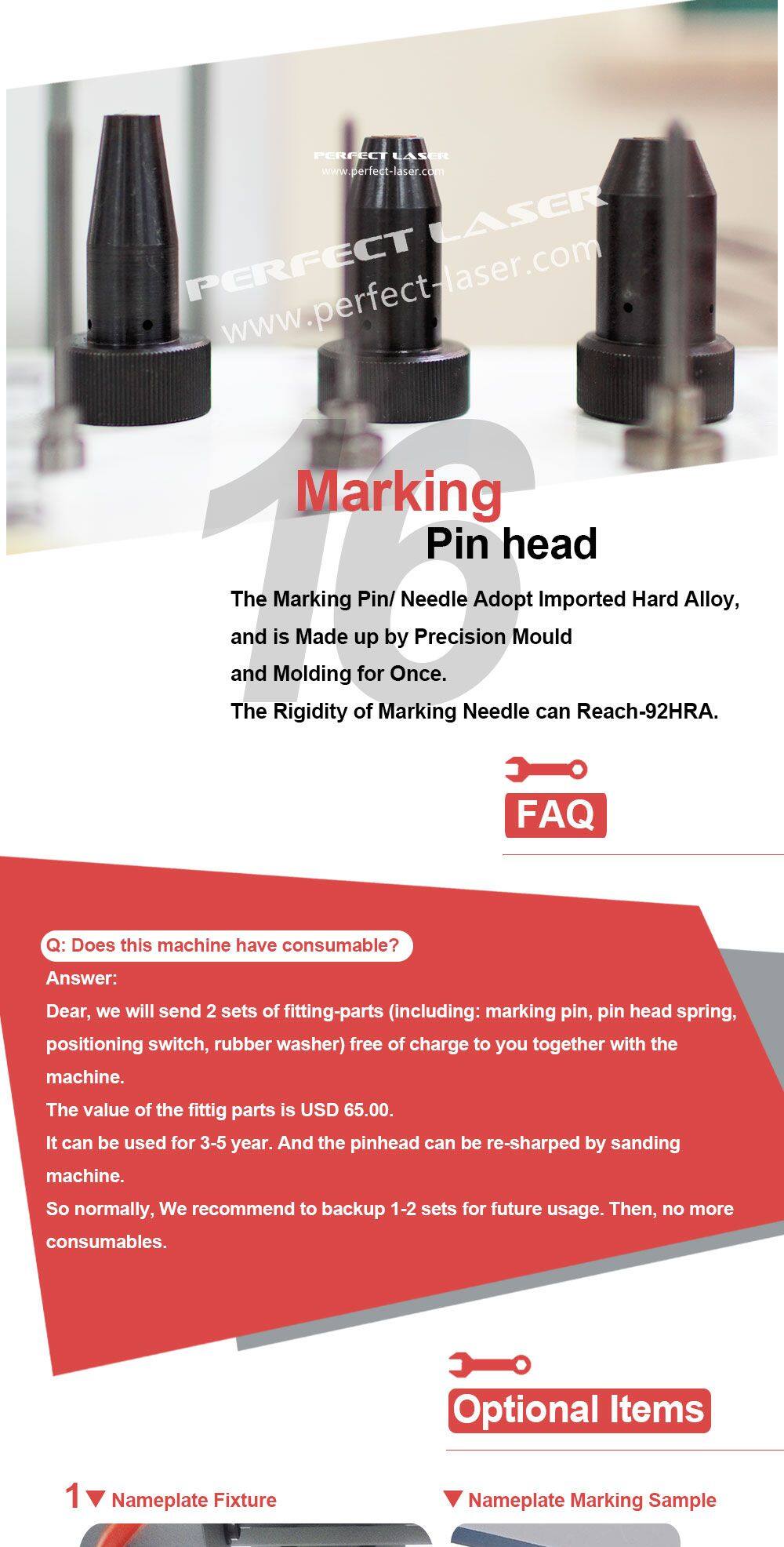

Pin Hardness | HRA 92 | ||
Power Supply | 220V±10％, 50HZ | ||

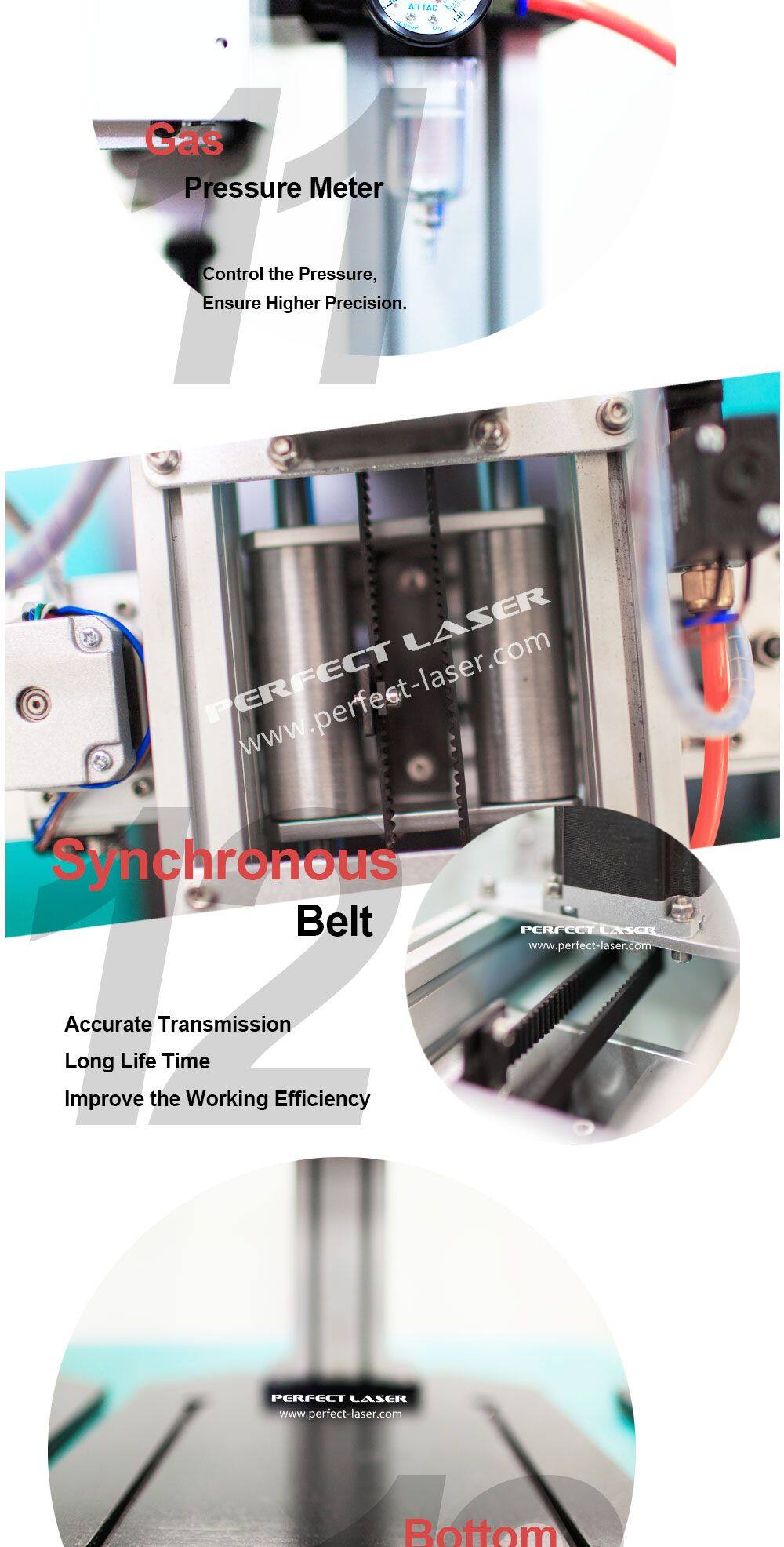

Air Pressure | 0.2-0.6 Mpa | ||
Working Environment | -5～40 ℃ | ||
Whole Machine Weight | 60 Kg | 70 kg | 25 kg |
