Product Introduction

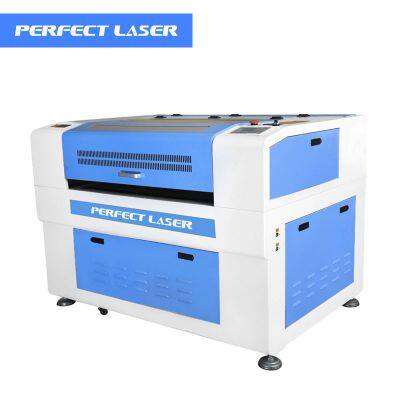

PEDK-13090 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large 1300mm by 900mm working area, compact nesting, convenient storage materials.
The knife-shape aluminum heavy strip work of the platform can avoid defective products caused by reflection of backstop while cutting acrylic & wood materials.
If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.
Product Features
1. Professional Working Table: Honeycomb or Strip work table of the 80w laser cutter for you to choose, use imported stable aluminum material, can meet the needs of diversified laser procession.
2. Taiwan Made Ball Screw Rod: The motorized up and down table adopt Taiwan “Double-win” brand high precision ball screw rod and high accuracy linear running guide rail, can improve the precision and accuracy of the 100w laser cutter.
3. Red Light Pointer Function: As laser light is invisible, and the red light pointer of the pvc laser cutter can realize the exact position of laser beam.
4. Special Front and back running-through design 30-50mm height, Co2 laser cutters can make a unique door for the limitless engraved materials come through from front into back side, easy to put material through.
5. Ladder-Shape Drawer Design: Easily collect and getting the cutting object.
6. Laser Beam Stop when Opening Machine Cover: We design a special function to stop the laser beam come out when operator open the 130w laser cutter machine’s cover. So that ensure operator won’t be hurt by laser beam, safe for operator. Other company don’t have such design, so it will hurt operator sometime when using it.
7. We Do Strict Testing for Each Laser Tube: We will test every laser tube before using them, in order to make sure the performance of laser tube and it has nice laser facular.
Application
1. Available materials: the Co2 laser cutters are widely applied in acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.
2. Application Industry: the Co2 laser cutters are widely applied in advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
Technical Data
Working Area |
1300x900mm (4 feet*3 feet) Co2 Laser Cutters |
Laser Power |
60w / 80w / 100w / 130w / 150w |
Laser Type |
Hermetic and Detached Co2 Laser Tube |
Engraving Speed |
0-60000mm/min |
Cutting Speed |
0-10000mm/min |
Cutting Thickness |
0-25mm acrylic (Others Determined by Materials) |
Repeat Location Accuracy |
+/-0.0125mm |
Driving Mode |
DC0.8A 24V Stepper Motor |
Position System |
Red dot Laser Pointer |
Interface |
USB port transfer |
Voltage |
AC220v/50hz or 110v/60hz |
Machine Power |
900w |
Controlling System |
CNC Professional Control System |
Support Graphics Mode |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
Cooling Mode |
CW-3000 Water Cooling (with Protection Function) |
Auxiliary Devices |
Exhaust Fan and Exhaust Pipe |
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
Power Control Mode |
Laser Energy Combining Movement Control System |
Software |
Professional Reader Laser Cutting Software |
Operating Temperature |
0-45C |
Operating Humidity |
5-95% |
Packing |
Wooden Box |
Guarantee Time |
12 Months for Machine, 3-10 Months for Laser Tube |
Operation |
VCD Training, Engineer Overseas Available |
Machine Size |
1970mm*1480mm*1250mm |
